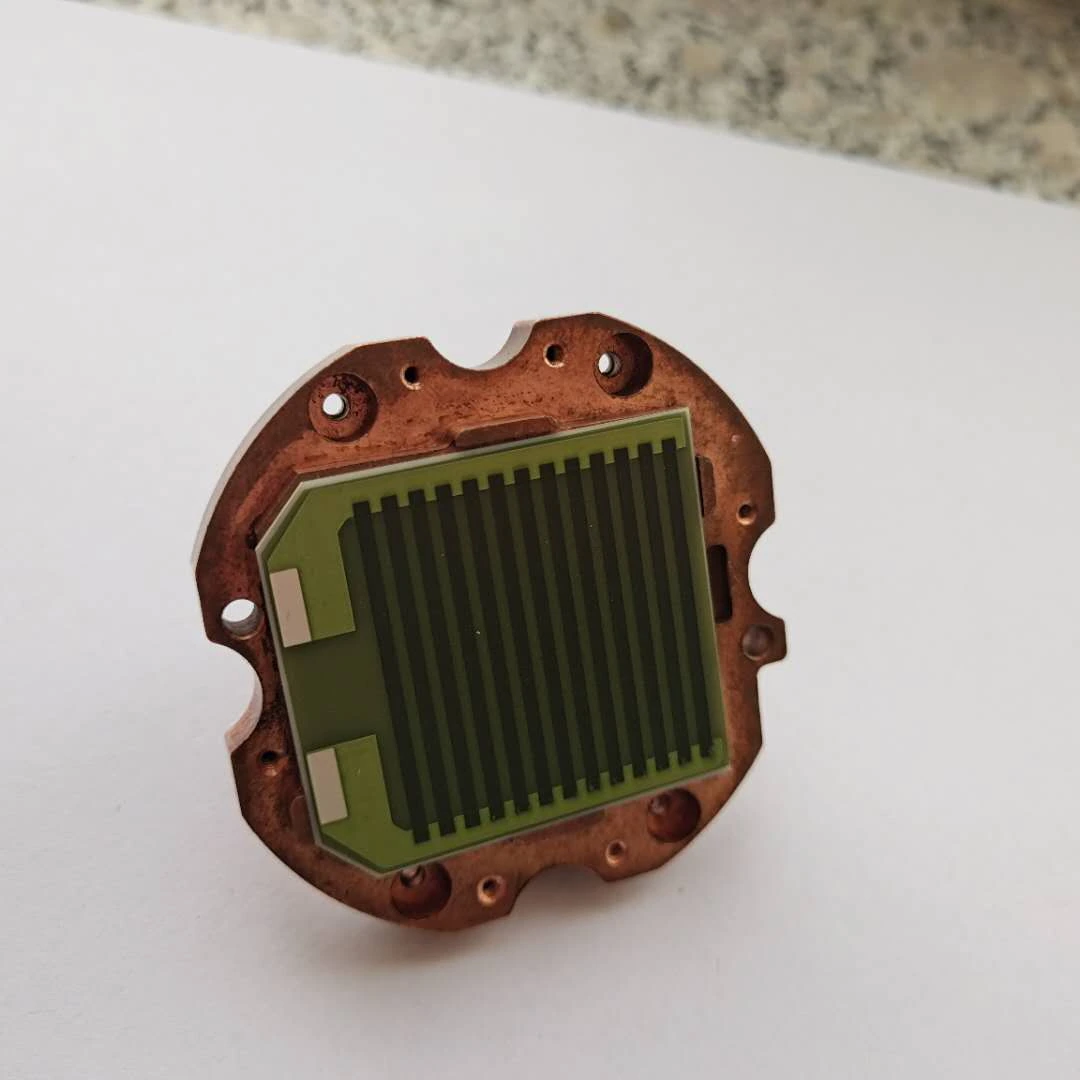

The thermal behavior of an assembled ceramic circuit can differ substantially from the bare substrate. Adhesive bondlines, solder joints, interface pads, contact pressure and mounting flatness add resistance between the heat source and the cooling system. These interfaces can dominate the temperature rise even when the ceramic has high thermal conductivity. Separate their contributions with measurements at meaningful boundaries and controlled assembly comparisons before changing the substrate material.
Key design decisions
- Define the thermal path in the installed assembly, including every attachment and contact layer.
- Measure temperatures close to the physical interfaces represented by the model.
- Change one assembly variable at a time so contact improvements are not mistaken for a ceramic-material effect.
List the layers that heat crosses after assembly
Begin at the heat-generating region and follow the intended heat flow toward the sink or load. The path may include die attach, printed metallization, ceramic, a gap-filling pad and a metal housing. Include any region where heat must spread laterally before reaching the next contact.
Distinguish solid layers from contact interfaces. A layer has a thickness and material conductivity, while an interface also depends on real contact area, pressure, flatness and surface condition. Treating every interface as perfectly bonded can make the model predict a large material improvement that the assembled circuit cannot achieve.
Choose measurement nodes that isolate the interfaces
Place temperature measurements on opposite sides of the interface of interest where practical. A sensor far from the contact can include lateral gradients and obscure the local drop. Define the location and attachment method precisely enough to repeat the comparison after reassembly.
Measure power entering the modeled path. If some heat leaves through leads or air, total electrical input is not identical to heat through the interface. Decide whether the comparison needs a detailed heat balance or whether the same controlled setup allows a useful relative comparison. Record that distinction with the result.
Check attachment thickness and coverage
An adhesive or solder layer can vary across the footprint because of substrate flatness, dispense volume, component tilt and placement force. A single nominal bondline value may hide a thick corner or a large central void. Inspect the geometry that the heat source actually sees.
Bondline thickness is a controlled variable in the adhesive interface. Use the cured material data and the specified assembly process when estimating the layer contribution. A thinner layer is not automatically feasible if it conflicts with particle size, surface topography or cure requirements.
Separate better contact from excessive loading
Increasing contact pressure may reduce some interface gaps, but ceramic support and local stress limit how the assembly can be loaded. The fixture should distribute force through defined contact regions rather than bending the substrate onto an uneven surface. A thermal test that damages the circuit while lowering temperature does not establish a usable mounting condition.
Record the compression state of interface pads and the seating of mechanical stops. If a pad creeps or relaxes, the thermal condition can change after initial assembly. Compare the same elapsed time and temperature history when evaluating contact pressure, and inspect the ceramic and joints after the test.
Use a thermal network to expose the dominant uncertainty
For a predominantly series path, the total temperature rise is the heat flow multiplied by the sum of layer and interface resistances. Estimate each term with a range when its value is uncertain. A broad contact-resistance range can matter more than a precise conductivity value for the ceramic.
If an interface accounts for most of the estimated resistance, prioritize a measurement or assembly change there. This does not mean the substrate is irrelevant. It means the next design decision should address the largest controllable contribution rather than the material property that is easiest to find in a catalogue.
ΔTpath = Q × (Rattach + Rceramic + Rcontact + Rsink)
- Q: heat crossing the modeled series path
- Rattach: source attachment contribution
- Rceramic: substrate contribution for the stated geometry
- Rcontact: mounting-interface contribution
- Rsink: cooling-system contribution
A steady series approximation. Parallel heat loss and spatial temperature variation must be treated separately where significant.
Use controlled changes to locate the loss
A comparison is most useful when the changed condition addresses one suspected bottleneck. Preserve source power, sensor locations and ambient conditions so a lower measured temperature has a clear interpretation.
Repeat the original configuration after the comparison when practical. This checks whether the interface change was reversible and whether the test setup drifted. A progressive change caused by repeated seating or material squeeze-out can otherwise be confused with the intended design variable.
| Controlled change | What it tests | Confounding change to avoid |
|---|---|---|
| Re-seat the same circuit | Contact repeatability | Moving the temperature sensor |
| Change only interface-pad thickness | Pad resistance and conformity | Changing clamp geometry simultaneously |
| Improve support flatness | Real contact area | Increasing force without recording it |
| Compare attach coverage | Source-to-ceramic interface | Changing source footprint or power |
| Change substrate thickness | Ceramic path sensitivity | Using a different attachment method |
| Change cooling flow | External sink contribution | Allowing inlet temperature to drift |
Do not confuse warm-up with steady-state resistance
Assembly layers add thermal mass as well as resistance. A thicker metal clamp may lower the early temperature rise by storing heat while providing little steady-state improvement. Conversely, a low-mass assembly can warm quickly yet reach a lower final temperature because its heat-removal path is better.
Record the complete temperature-time trace and identify the criterion used for steady state. If the application is intermittent, evaluate the actual duty cycle rather than forcing every decision into a steady-state number. The thermal model should answer the operating question, whether that is peak temperature during a short pulse or equilibrium under continuous power.
Preserve the mounting state with the thermal result
Document hardware, torque or applied force where relevant, interface material, bondline condition, sensor locations and assembly sequence. A temperature map without these inputs is difficult to reproduce. Include photographs that show the installed contact and cable arrangement, not only the visible top surface of the circuit.
When handing off a design, state which interface values were measured and which remain estimated. Identify the condition that produces the highest temperature and the acceptance boundary at the heat source. This allows the next review to focus on the actual thermal bottleneck and prevents a bare-substrate specification from being mistaken for assembled performance.
Provide the assembled heat path
Send the attachment and mounting conditions that determine the installed temperature rise.
- Source geometry and power distribution, ceramic dimensions and the complete thermal stack.
- Attachment grade, cured thickness or void information, interface-pad details and support flatness.
- Mounting force or hardware state, cooling boundary and temperature-sensor positions.
- Steady and transient temperature records with the assembly configuration used for each comparison.
