Ceramic Vias: Choosing Machining Order relative to Metallization

Define the hole function and finished boundary

State finished diameter, shape, taper, sidewall condition, positional datum and relationship to conductors, resistors, glaze and substrate edge. An electrical via needs metallized continuity through or around the wall; a mounting hole needs load and clearance information; a passage may add cleanliness requirements. Do not call every ceramic hole a via. Define which edge is inspected and whether laser, drilling, punching or another process is proposed.

List material states at the moment of machining

For pre-metallization machining, evaluate cleaning, paste print near relief and firing over the finished edge. For post-metallization machining, identify every fired layer cut by the tool and any later cleaning or protection. Intermediate machining between conductor and overglaze creates a third sequence. Record thermal cycles after the hole, because firing can change crack evidence or contamination. Compare complete routes rather than only tool cycle time.

Calculate remaining ceramic and conductor margins after position error

Use the finished damage boundary rather than nominal tool centre. Stack hole position, size, chip allowance and feature registration directionally.

Calculate a residual ligament for one proposed sequence

For illustration, a hole centre is 1.50 mm from a resistor edge. Maximum radius is 0.40 mm, adverse relative location 0.10 mm and reviewed damage boundary 0.08 mm beyond the hole. Residual ceramic separation is 0.92 mm. These values teach the stack and do not define allowable ligament or machining capability. If post-fire machining also removes 0.12 mm from a nearby conductor, remaining width must be evaluated in its electrical model.

Inspect sidewalls, surfaces and nearby films after the final route

Use suitable optical, dimensional and selected cross-sectional methods to locate chips, cracks, redeposited material and layer pullback. Cleanliness inspection should include debris traps and exposed interfaces. Fluorescent penetrant or other methods require compatibility and qualified interpretation. Measure both entrance and exit edges when taper or breakout differs. A top-side diameter cannot describe backside damage. Preserve route and tool identities with every specimen.

Verify conductor continuity and isolation after machining

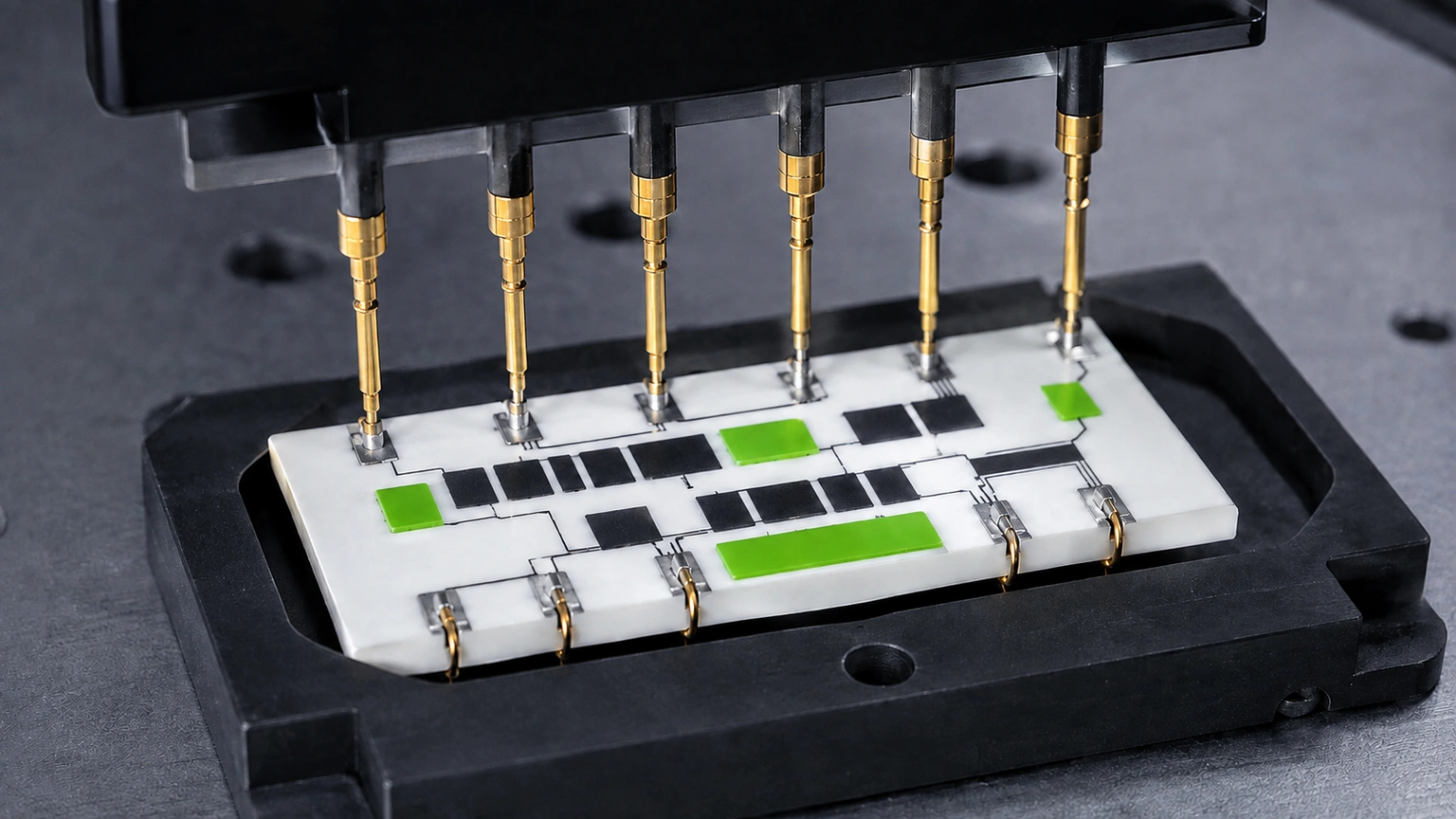

Measure defined conductor paths and insulation nodes before and after machining where the sequence permits. A continuity pass can hide a narrowed high-resistance neck. Map remaining width and terminal resistance. Debris can create leakage between nearby nodes. Electrical current and voltage acceptance require the actual circuit and environment. Do not infer via current rating or isolation from visual geometry alone.

Validate mounting and thermal consequences separately

Machined holes can concentrate stress under fasteners or pins, and nearby cracks can grow under load. Mounting force, torque, washers and support require mechanical review. A hole also redirects heat flow. Build specimens at relevant geometric limits and apply customer-owned structural, thermal and environmental tests. Avoid destructive sectioning of the only functional sample before electrical evidence is recorded. Safe laser or machining controls remain facility responsibilities.

Release finished-hole criteria and process order together

Control finished geometry, damage boundary, datum, machining method and order relative to every printed and protective layer. ChipSimple can review an agreed ceramic route and drawing-defined features; structural strength, electrical rating and installed reliability remain customer-owned. Reopen after changes to tool, hole, sequence, metallization, protection, cleaning, firing, mount or adjacent circuit geometry.

Sequence holes and metallization around one controlled datum

A ceramic via or machined hole may be created before printing, between layer operations or after metallization. Each sequence changes what can be registered and what may be damaged. A pre-existing hole can serve as an optical or mechanical datum, yet printing across surface relief may distort nearby features. Later machining can achieve a relationship to printed marks but may chip ceramic, cut conductive edges or contaminate the surface. State the sequence explicitly and define the coordinate system used at every operation.

Build the tolerance stack from actual transformations: substrate datum to hole, datum to print, layer-to-layer registration and final outline. If an operation re-fixtures the panel, include the new localization error rather than treating datums as perfectly inherited. Measure hole center using an agreed circle or profile method, especially where chipping or taper makes the edge ambiguous. For metallized features, distinguish a conductive via fill or wall from a plain mechanical aperture; they require different process and verification evidence.

Validation maps hole position, diameter or profile, nearby conductor clearance, metallization continuity where applicable and ceramic damage after the final thermal cycle. Inspect entry and exit faces because machining and firing effects can be asymmetric. Functional electrical or mechanical tests use the customer-defined method. RFQ inputs should include layer sequence, hole purpose, position and size tolerances, datum scheme, metallization requirement, downstream attachment and edge-damage criteria. A shift in machining vendor, tool, firing order, panel orientation or registration method triggers renewed review.

Where holes interact with printed layers, examine annular or edge coverage around the complete circumference rather than at one convenient section. Local paste pullback, ceramic chip or registration offset can combine on the same side. Use polar or quadrant measurements to reveal directionality. For holes serving fasteners or fluid paths, the customer must provide mechanical load, sealing or cleanliness conditions; geometric conformance alone cannot approve the function. Maintain separate criteria for hole location, ceramic damage and electrical continuity so one passing result does not conceal a failure in another requirement.
