Conductor Current Paths: Print Bias followed by Solder Coverage

Divide the current route by geometry and material state

Mark straight film, turns, necks, conductor-resistor overlaps, solder-covered land, solder transition and terminals. Record current direction and branch points. Define fired edges and thickness evidence. Solder coverage seen from above may not mean continuous metallurgical connection throughout the area. Separate geometric overlap from effective parallel conduction. Use card-side terminals to avoid including unknown harness resistance.

Calculate each segment with its effective conducting cross-section

Model bare film and solder-covered regions using supported resistances. Include constriction at transition as a separate term when evidence warrants it.

Show why total resistance can hide a narrow segment

For illustration, a route contains 80 mΩ bare film, 20 mΩ of film paralleled by 5 mΩ solder, and a 12 mΩ transition. Total is about 96 mΩ. If print bias narrows another short segment and adds 8 mΩ, total becomes 104 mΩ, but local loss in that neck can rise disproportionately. At 2 A the added segment dissipates 32 mW. These values teach segmentation and are not conductor ratings or measured capability.

Register solder boundaries to fired conductor edges

Measure fired width, thickness or mass proxy, centreline and defects before assembly. After soldering, map wetting extent, component position and exposed conductor. Include worst turns, terminals and ceramic edges. X-ray or sectioning can support hidden geometry with appropriate limitations. Record finish, flux, cleaning and thermal profile. Solder spread outside the land can approach resistor or glaze boundaries even when electrical resistance improves.

Measure distributed drop under a controlled current

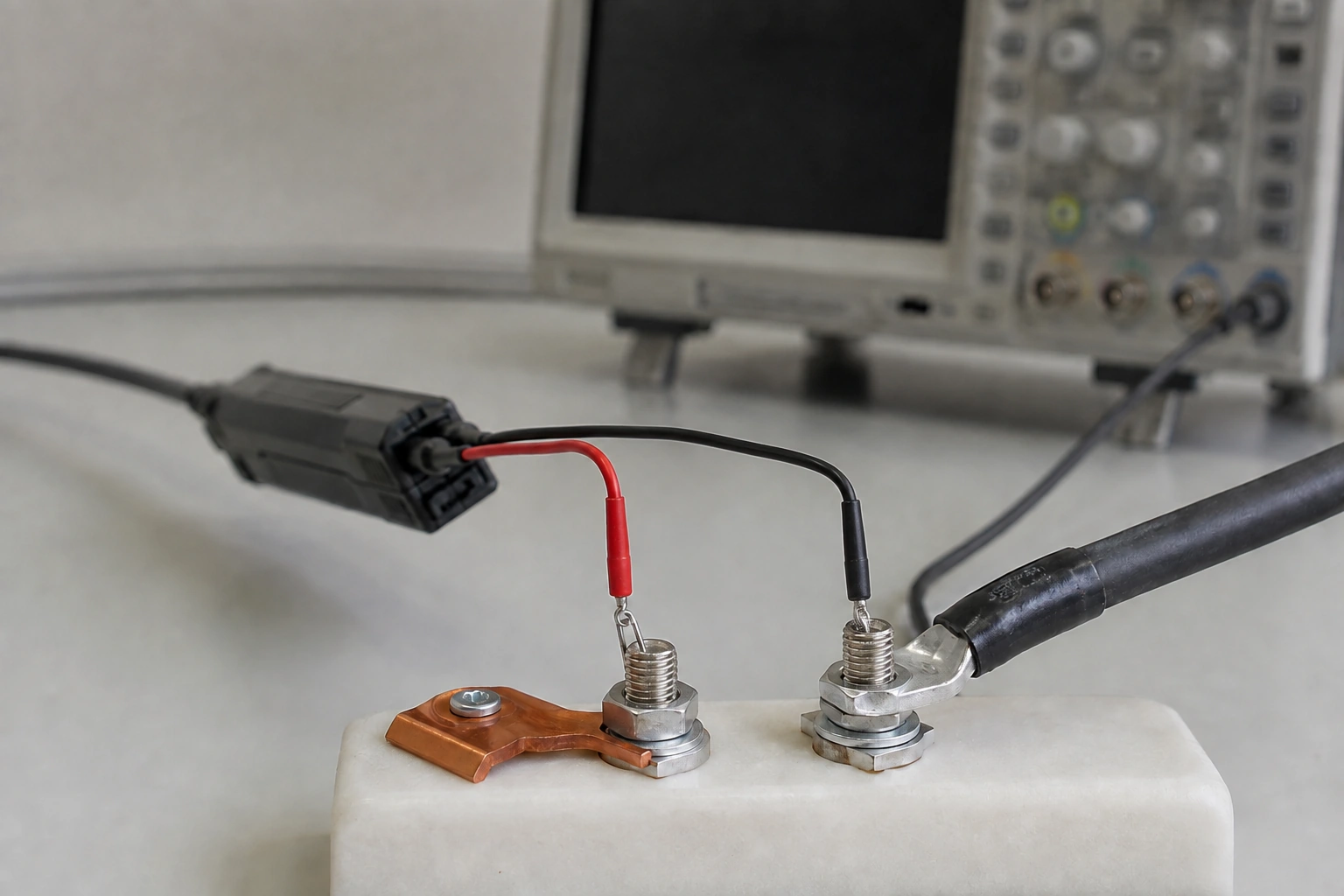

Use voltage taps or Kelvin structures where designed to compare segments. Apply a current and duty authorized for the specimen, record terminal voltage and local temperature, and avoid probe placement that changes heat flow. Distinguish cold and stabilized resistance. A low total drop does not prove uniform current distribution. Imaging hotspots require emissivity control across solder, conductor and ceramic surfaces.

Review benefits and risks of added solder coverage

Solder can reduce resistance and reinforce a terminal, but can add stiffness, stress, thermal mismatch, flux residue and unpredictable current transfer. More coverage is not automatically better. Preserve conductor beneath the entire permitted solder region and maintain keep-outs.

Separate print bias, poor wetting and transition damage

A width shift already visible before assembly belongs to printing or firing. High drop within covered area can indicate incomplete solder connection or finish condition. A hotspot at the coverage edge suggests transition constriction or cracking. Flux residue can create leakage without changing series resistance. Compare pre- and post-solder geometry and four-terminal measurements. Do not widen artwork until the responsible mechanism is confirmed.

Release fired route and solder process as linked boundaries

Control conductor material, fired width and thickness, lands, solder extent, finish, cleaning, component placement and thermal process. ChipSimple can review drawing-defined thick-film conductors; allowable current, solder-joint life and module reliability remain customer-owned. Reopen after changes to current, artwork, print process, solder, finish, profile, component or thermal interface.

Review the current path after printing and solder coverage

Conductor width on artwork is not automatically the electrically active width. Printing establishes fired edge bias and thickness distribution, while later solder can widen a current path, create a meniscus, obscure inspection or concentrate entry at a termination. Define whether the reviewed segment is bare fired conductor, solder-coated land or a transition between them. Trace the full current route from terminal to load, marking necks, bends, vias, overlaps and regions partially covered by glaze.

Estimate resistance using measured length, effective cross-section and a bounded material resistivity only for first-order comparison. The narrowest local cross-section may control temperature even if average line resistance is acceptable. At solder boundaries, account for current transfer and thermal mass; do not simply add solder width to the printed conductor width. Verify final geometry after the intended assembly process. If solder is optional or customer-applied, analyze both states and state who owns assembly validation.

A focused study pairs dimensional maps with four-wire resistance where suitable and temperature observation under an approved load case. Record current, duty, ambient, mounting and sensor method. Examine screen direction and panel location for edge bias, then inspect solder spread against adjacent clearance. RFQ reviewers need conductor paste family, artwork, fired-width evidence, load waveform, solder method, terminal geometry, protective coverage and allowable temperature or voltage-drop criteria. Release requires a bounded path model and representative evidence, not a single nominal width copied from CAD.

Document current-sharing assumptions at branches and parallel traces. Small resistance differences can steer more current into one leg, making its width and termination condition more important than total circuit resistance suggests. Measure branch resistance when access permits or bound sharing from geometry and material evidence. At bends, use local inside and outside edge measurements because current crowding is not represented by centreline width alone. If a protective glaze overlaps the trace, inspect for coverage without treating the glaze as added conductor. The release package should identify the governing electrical corner and the location used for final dimensional verification.

For long serpentine paths, segment the dimensional and electrical review by straight, turn, transition and termination. Assign each segment a length, minimum width and expected share of voltage drop, then reconcile the sum with measured total resistance. This segmentation helps locate an abnormal contribution without claiming that bulk paste properties alone explain the result. It also provides targeted inspection coordinates. If a later solder operation covers only selected segments, retain before-and-after resistance and imagery so the added metal, thermal cycle and handling effects can be distinguished.
