Conductive Epoxy Joints: Bondline Control and Dispense Variation

Describe both bonded surfaces and the current path

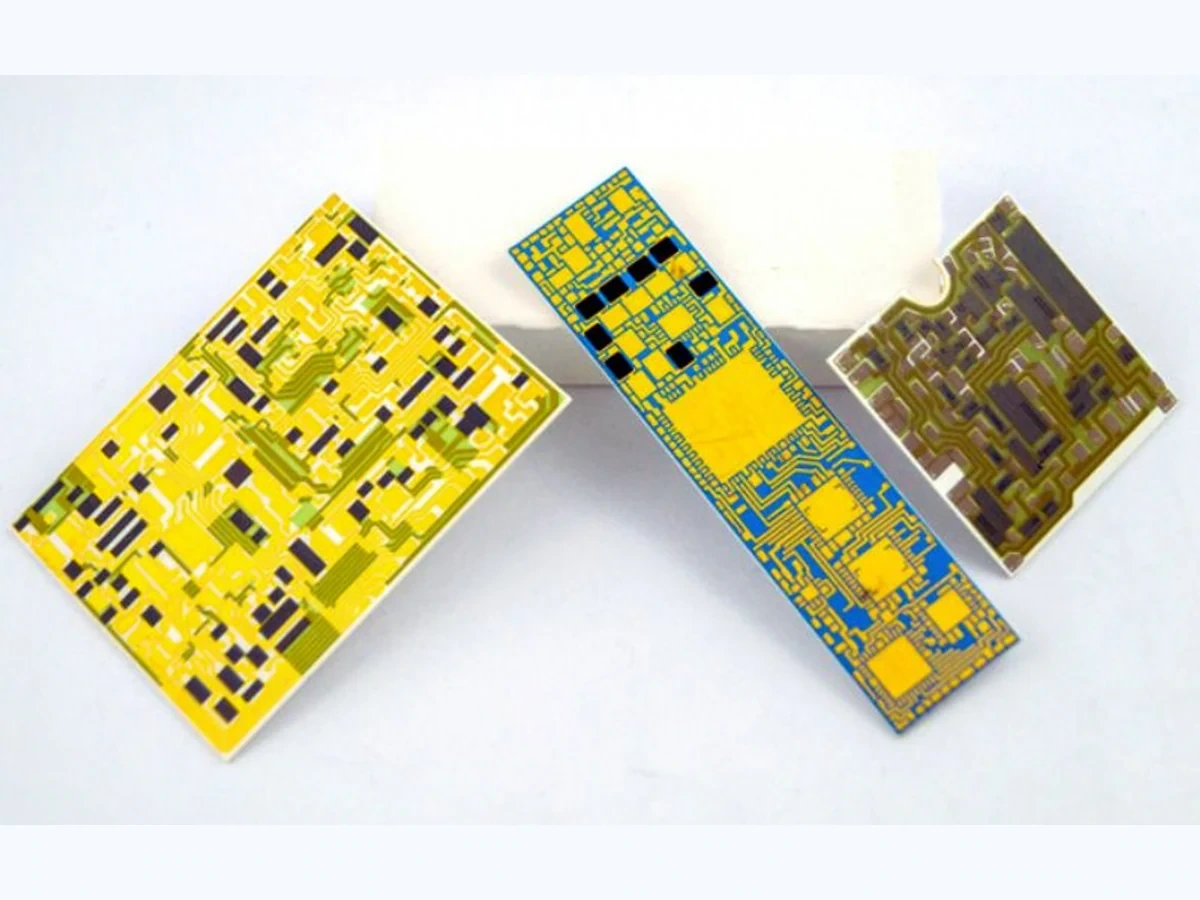

Identify the ceramic metallization, the attached component or lead and the adhesive region between them. The current may pass through the bondline thickness or along a longer lateral path depending on the geometry. A resistance estimate must use the actual direction and area of conduction.

List any surface finish or coating at each interface. A conductive adhesive touching a bare metal finish is a different system from one touching a polymer-carbon pad or an oxidized surface. Confirm the selected adhesive's compatibility with both sides and retain the preparation history. The word conductive does not establish a reliable connection to every material.

Choose a thickness that the adhesive and geometry can support

The cured bondline must accommodate the surface topography and the adhesive's material requirements while meeting electrical, thermal and mechanical goals. A very thin target may be inconsistent with the filler structure, flatness or minimum bondline needed by the selected adhesive. A thick bondline may add resistance or allow greater component tilt.

Bondline thickness influences the cure and adhesion conditions and must be controlled for the selected adhesive grade. Use the actual grade's guidance and define where thickness will be measured. A single corner measurement is insufficient if the component is tilted. Record the distribution or relevant section locations so the joint geometry can be compared meaningfully.

Control coverage without trapping an empty central region

Choose a dispense pattern that can spread beneath the component while allowing air to escape. The appropriate pattern depends on viscosity, footprint, placement motion and surface wetting. A ring of material at the perimeter can create an attractive fillet while leaving incomplete coverage beneath the center.

Use a repeatable quantity and placement sequence for comparisons. Record dispense mass or another controlled volume indicator, then inspect the resulting cured geometry. Do not infer complete coverage from the amount dispensed alone. Material can spread outside the footprint or remain in a local thick region rather than forming the intended uniform bondline.

Check the first and last joints in a dispense run, not only the setup specimen. Material remaining in the syringe, changes in tip condition and a pause before placement can alter the delivered pattern. Compare these positions using the same component placement force and timing. If a progressive coverage change appears, separate the dispense behavior from adhesive aging by repeating a controlled deposit check before adjusting the cure. The process record should identify the time interval between deposition and component seating, because a joint assembled immediately is not necessarily equivalent to one left exposed while the rest of a panel is populated.

Model bulk and contact contributions separately

For a uniform through-thickness adhesive layer, bulk resistance can be estimated from resistivity, thickness and effective conducting area. Add the two interface contributions when evaluating the complete joint. This helps explain why a lower-resistivity adhesive may not improve a connection dominated by surface contact.

A hypothetical doubling of bondline thickness doubles the bulk term if resistivity and effective area remain unchanged. It does not necessarily double total joint resistance when contact terms dominate. Measure a representative joint and use the model to identify sensitivities rather than treating the material datasheet as a finished-joint measurement.

Connect dispense variation to a measurable consequence

The process comparison should explain what changed in the joint, not only whether the final resistance moved. Geometry and failure location help distinguish insufficient coverage from an interface problem.

Maintain geometry through cure without overconstraining the assembly

The component must remain in its intended position while the adhesive develops its cured state. Define the support and any holding force. A fixture that presses unevenly can create a thin edge and a thick opposite edge, while a rigid clamp can introduce a stress state different from the final package.

Record the actual joint-temperature history and the time before fixtures are removed. Inspect the assembly after release because geometry can change when temporary restraint is removed. If a post-cure is used, include it in the electrical and mechanical comparison rather than measuring the joint only after the first cure step.

Measure the joint without hiding it inside long conductors

Place voltage-sensing points close to the intended joint boundary when measuring low resistance. Long printed traces, probe contacts and external leads can dominate the reading. Keep test current and temperature controlled and avoid self-heating during baseline measurement.

Measure before destructive mechanical testing and retain specimen identity throughout. For environmental comparisons, record whether resistance is measured during exposure or after return to a defined condition. A reversible moisture-related change and a permanent interface change should not be combined into one unexplained final resistance value.

Choose the process from the required joint function

Electrical loss, thermal transfer, mechanical support and rework needs may favor different bondline choices. Identify the non-negotiable requirements and compare candidate processes against the same geometry and environment. A lower initial resistance is not sufficient if the joint becomes unstable under the intended temperature or movement.

The drawing handoff should include both surfaces, adhesive grade, coverage region, thickness definition, cure support and test boundary. Keep any acceptance limits tied to the evaluated assembly. This turns the conductive-epoxy choice into a controlled connection design rather than a substitution based only on a material conductivity claim.
