A conductive adhesive must satisfy an electrical connection requirement while holding the attached part in its intended position. Those functions do not produce a single universal material ranking. Select the adhesive from an allocated connection-loss budget, the two bonded surfaces and the mechanical duty, then verify the actual cured attachment rather than comparing bulk conductivity alone.
Key design decisions
- Allocate the allowable resistance to every adhesive connection in the complete circuit path.
- Reject candidates that fail a mandatory attachment or process condition before ranking conductivity.
- Keep electrically conductive and electrically insulating thermal adhesives in separate selection branches.
Decide what the adhesive is required to hold
The attachment may retain a small component, connect a flexible terminal or hold a comparatively stiff heat spreader. Each arrangement places a different demand on the cured material. Identify which part can move, where external loads enter and whether an independent support carries the mechanical duty. A conductive adhesive used only to complete an electrical path is not equivalent to the same formulation carrying the mass and handling loads of a connector.
Define the required position as well as the required strength. Slow movement under sustained load can reduce clearance or disturb optical alignment without causing visible separation. Conversely, a very rigid attachment may preserve alignment while transmitting thermal movement into a brittle ceramic pad region. Include the duration and temperature of the mechanical demand in the material comparison. A single room-temperature shear value does not settle these alternatives, particularly when the actual part applies peel or bending rather than uniform shear.
Clarify which conductivity the material description means
Thermal conductivity and electrical conductivity describe different transport functions. An adhesive can conduct heat while intentionally insulating the connected surfaces. Such a material may be suitable beneath a heat-generating component but cannot replace an electrical attachment merely because its product description emphasizes conductivity. Mark both requirements explicitly, including any region where accidental electrical connection would create a short circuit.
Within electrically conductive materials, preserve the cured state behind each property. A supplier may list a recommended cure together with alternative processing conditions that do not produce the same published performance. A reduced-temperature option therefore cannot inherit the full property table without confirmation. Compare electrical resistivity, mechanical response and the specified cure as one record. Ask for the material identification and documentation that describe the actual delivered form, then check that both contact surfaces and the available assembly sequence lie within its intended application.
Allocate a connection budget before comparing adhesive grades
Start with the permitted voltage loss at the specified current and identify the entire path to which it applies. Printed tracks, terminals and multiple adhesive joints can all consume that allowance. If the drawing gives only a component voltage requirement, determine the available interconnect allocation with the circuit designer. An adhesive with an attractive bulk resistivity may still be unsuitable when several joints appear in series or when the printed route has already consumed most of the budget.
Keep deliberate reserve separate from predicted resistance. A reserve may cover specified aging allowance, uncertainty or unresolved variation, but its definition must prevent the same contribution being counted twice. For equal allocations across identical series joints, subtract the other path contributions and the chosen reserve from the total resistance allowance, then divide by joint count. Unequal joints need individual allocations based on their functions. The result is a screening requirement for completed attachments, not a conversion of a supplier resistivity number into guaranteed performance.
Rjoint,alloc = [Vloss,max/I − Rfixed − Rreserve]/n
- Vloss,max is the permitted voltage drop across the specified complete path in V.
- I is its stated positive DC current in A; Rfixed and Rreserve are defined resistance contributions in Ω.
- n is the count of equivalent series adhesive joints receiving equal allocation; Rjoint,alloc is in Ω.
Ohmic behavior at a fixed evaluated state, a defined series path and equal allocation among equivalent joints. A negative result means no available budget; pulses, current sharing and thermal feedback require separate assessment.
Use the budget to distinguish nominal function from useful margin
Assume a hypothetical path carries 0.40 A and may lose no more than 20 mV. Its total resistance allowance is 50 milliohms. Let the other conductors account for 12 milliohms, with a separately chosen reserve of eight milliohms. Two equivalent adhesive joints then receive 15 milliohms each. These numbers are an arithmetic example, not a material property, manufacturing tolerance or recommended design margin.
If candidate A produces assumed completed-joint values of eight milliohms each, the path estimate before reserve is 28 milliohms and the voltage drop is 11.2 mV. Adding the reserved allocation gives 36 milliohms, inside the 50-milliohm budget. Candidate B at eighteen milliohms per joint gives 48 milliohms before reserve, or 19.2 mV, and 56 milliohms after the allocation is reserved. B nominally meets the voltage requirement but fails the stated margin policy. The reserve is bookkeeping, not measured dissipation; the selection still requires evidence that the assumed joint values represent the cured and conditioned assembly.
Screen mandatory attachment conditions before ranking loss
A low-resistance candidate remains unusable if its required cure damages another assembly material or if it cannot retain the attached part under the specified duty. Apply those constraints as eligibility gates. Only compare the relative benefits of candidates that can plausibly satisfy every mandatory condition. A weighted average score can conceal a disqualifying gap by allowing excellent conductivity to compensate numerically for unsupported surface adhesion.

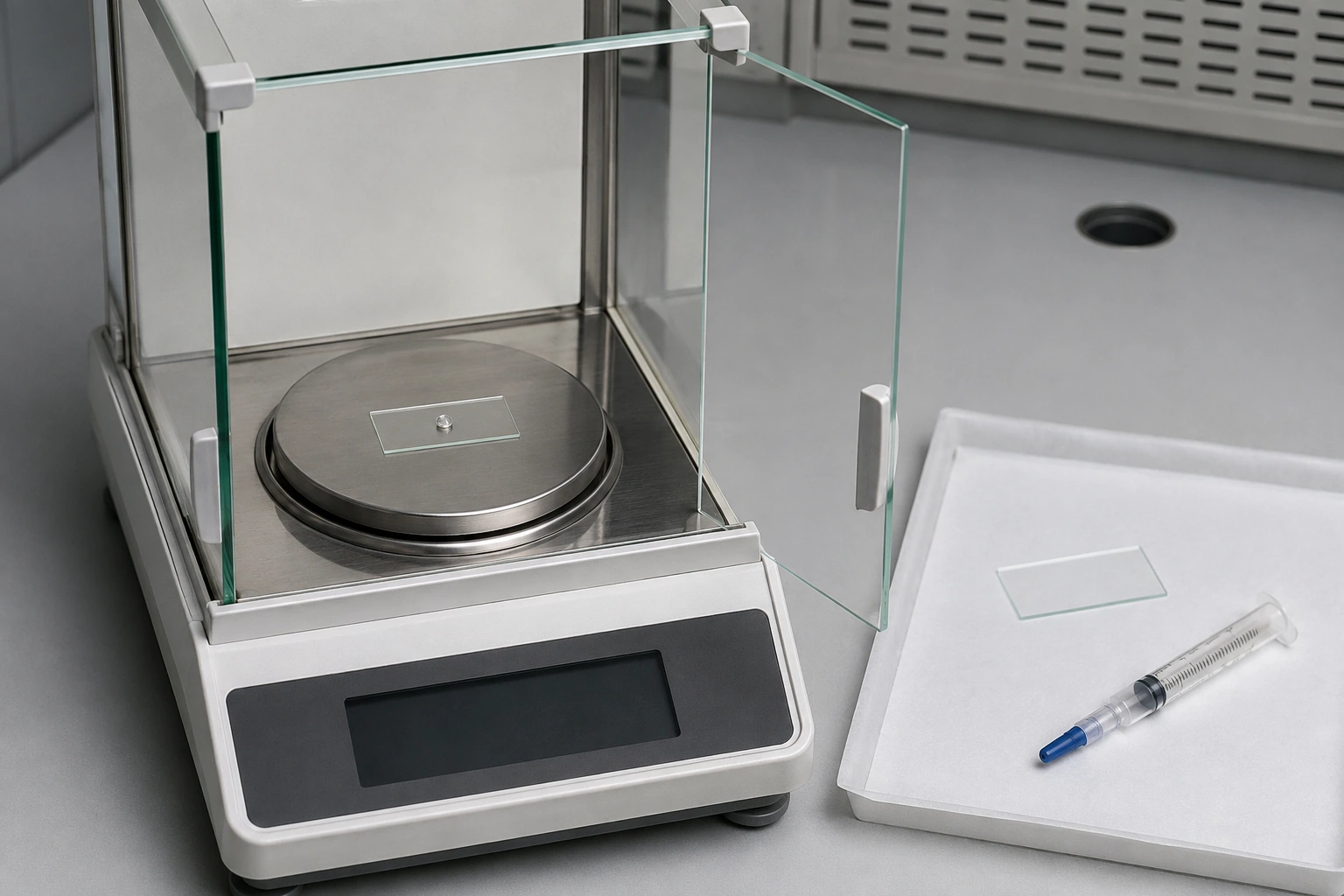

Keep the proposed application method with the candidate. A formulation that cannot form the required deposit without uncontrolled spreading may be unsuitable for a closely spaced electrical pattern even when a large laboratory joint performs well. Likewise, a very small attachment can require better control of placement and surface preparation than a broad sample. Those issues are reasons to define representative construction evidence. They do not justify declaring an untested minimum feature size or an assumed production capability.
| Requirement | Evidence needed | Selection consequence |
|---|---|---|
| Electrical connection | Completed-joint resistance at the defined state | Compare with its allocated loss budget |
| Mechanical retention | Actual load direction, duration and assembly support | Exclude an unsupported attachment duty |
| Surface compatibility | Both mating finishes after their preparation histories | Retain an untested pair as conditional |
| Cure compatibility | Part-temperature history and all exposed materials | Reject an incompatible sequence |
| Electrical separation | Final spread and adjacent conductor clearance | Verify the minimum remaining gap |
| Service access | Permitted removal and replacement route | Treat repairability as a separate constraint |
Recognize when the apparent electrical advantage is misleading
A low initial resistance can be dominated by a temporary contact condition that changes after cure, storage or load. Evaluate the completed joint at a defined time and temperature rather than measuring while a placement fixture still presses the part into the pad. If the reading rises after that pressure is removed, preserve both states and investigate the connection. Additional permanent clamping would change the attachment design; it is not an automatic repair for a material that fails its intended unloaded condition.
Mechanical and electrical failure signatures should remain distinct. A separated adhesive edge can threaten retention while continuity persists through a smaller region. An abrupt resistance jump without visible movement can indicate a changed conducting path or an external measurement problem. Adhesive spreading toward an adjacent node introduces another failure mode altogether. Photograph the original configuration and localize the electrical change before peeling or cutting the joint, because destructive preparation can remove the surface evidence needed to distinguish these mechanisms.
Validate the allocation with representative cured connections
Build the selected adhesive on the specified pad and mating finish using the intended preparation, placement and complete cure. The validation specimens should represent the actual current direction, part stiffness and support. Measure resistance between identified points using an appropriate four-wire arrangement when lead contributions would otherwise dominate. Record the test current and temperature, and evaluate whether self-heating or thermoelectric offsets matter at the measured level. A fixture check helps separate connection behavior from changing probe contacts.
Retain mechanical observations on the same specimen identities before any destructive test. Apply the product-defined thermal, humidity, sustained-load or cycling exposure that can alter the attachment, with intermediate checks when they reveal the first change. Report both measured values and the acceptance treatment of uncertainty. The material choice is supported when electrical loss, retained geometry and physical integrity meet their separate requirements over the represented sequence. More tests on one favorable joint do not replace variation across independently prepared assemblies.
Preserve the attachment requirements in the RFQ
Specify the adhesive by its reviewed identity and revision, together with both bonded surfaces and the permitted processing route. Place the electrical allocation in the connection definition rather than describing the material only as highly conductive. Identify the condition at which that allocation must hold, including any post-cure stabilization or environmental state. The purchasing and assembly teams then have a concrete basis for recognizing a proposed substitute that requires renewed evaluation.
Provide the function of the attached part, its mass and stiffness, the direction of external loads and the required service access. Include the allowable spread region and neighboring electrical keepouts, not simply the nominal adhesive footprint. Existing data should contain the cure history, measurement boundary and failure location. With those inputs, the quotation can distinguish a plausible material shortlist from a confirmed attachment and assign the remaining evidence without turning supplier material descriptions into unsupported claims about the finished ceramic circuit.
Define the adhesive connection and retention duty
Send the electrical allocation with the physical attachment that must satisfy it.
- Current, allowable path voltage loss, other series resistance, joint count and separately defined reserve.
- Both mating materials and finishes, actual connection footprint, neighboring keepouts and permitted spread.
- Attached-part mass, stiffness, load direction, sustained movement limits and ceramic support.
- Candidate adhesive, complete cure and preparation route, measured joint records and required environmental validation.
