A thick film circuit can pass through several drying, firing, refiring and assembly cycles before it reaches its final electrical state. Each material sees the cumulative sequence, not only the operation that originally formed it. A thermal-budget review records those exposures and checks their compatibility with the complete layer stack. It should not collapse different temperature histories into one simple total or treat a compatible first firing as approval for unlimited later processing.
Key design decisions
- List every thermal operation in chronological order, including rework and component attachment.
- Track the materials already present at each operation and the property that each exposure can affect.
- Use actual part-temperature evidence and material-specific compatibility guidance rather than comparing furnace setpoints alone.
Build the process map before comparing temperatures
Start with the substrate and add each conductor, resistor, dielectric and protective layer as it enters the process. Then add trimming, soldering, adhesive cure and any repair exposure. The map should show which materials are present during each thermal operation.
Distinguish a drying step from a firing step and a polymer cure from a ceramic firing sequence. Their purposes and material limits differ. A low-temperature attachment operation may still matter to a polymer layer or a trimmed resistor even when its temperature is far below the earlier ceramic firing peak.
Use the temperature history experienced by the part

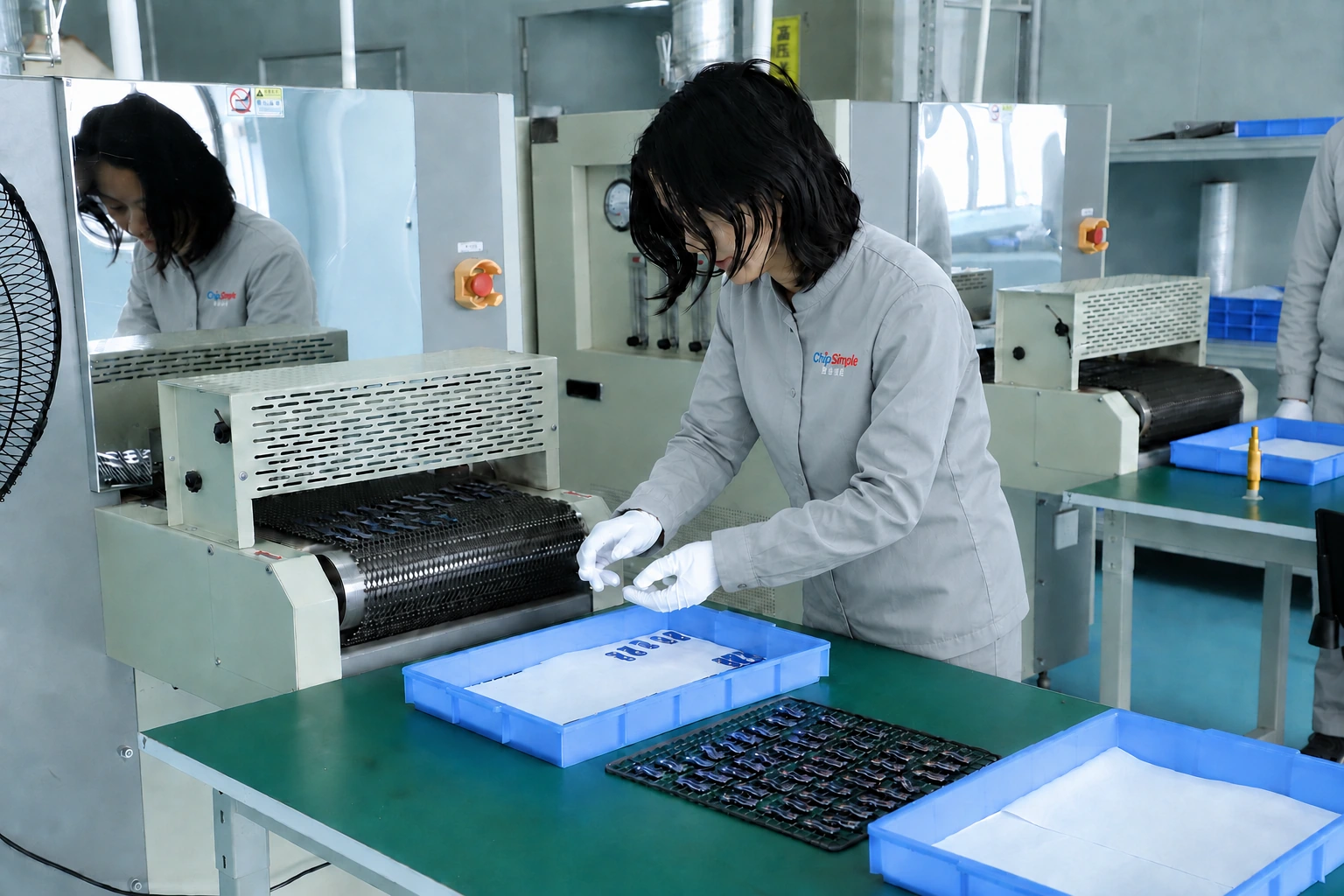

A furnace recipe describes commanded conditions, while the loaded part experiences a temperature-time profile influenced by load, support and location. Record the relevant profile method and its relationship to the production geometry. Do not assume that a small unloaded coupon and a dense loaded carrier follow the same thermal history.
For local soldering or adhesive cure, identify the temperature at the joint or affected region. A tool display or oven setpoint may not establish that condition. Include heating and cooling behavior when gradients or dwell influence the material interaction. The useful record is the exposure of the circuit, not just the machine setting.
Check the material pair and the operation order
A conductor can be compatible with a substrate under its specified firing condition but respond differently when a later dielectric or overglaze is added. Layer order changes which surfaces contact each other during heating. The complete material system should therefore be reviewed as a sequence.
Select a mutually compatible conductor, resistor, dielectric and overglaze system for the actual substrate and thermal sequence. Do not mix recommendations from unrelated systems merely because their nominal firing peaks look similar.
Assign a property check to each exposure
A useful thermal ledger identifies what may change and how the change will be observed. It should not become a long list of temperatures with no connection to circuit function.
| Operation | Materials already present | Property to verify |
|---|---|---|
| Conductor firing | Substrate and conductor | Adhesion, geometry and conductor resistance |
| Resistor firing | Conductor and resistor system | Resistance and termination interaction |
| Dielectric or overglaze firing | Underlying functional layers | Electrical shift, coverage and interface condition |
| Additional refire | All earlier fired layers | Cumulative drift or compatibility change |
| Solder attachment | Finished circuit and components | Joint condition and local thermal damage |
| Polymer or adhesive cure | Coating, substrate and assembled materials | Cure state, resistance shift and mechanical restraint |
Do not assume equal temperature-time area means equivalent processing
Two cycles with the same apparent degree-minutes can produce different material behavior because reaction rates, phase changes, diffusion and drying are temperature dependent. A short hotter exposure is not generally interchangeable with a longer cooler one. Use equivalence only when it is established for the specific material and mechanism.
The same caution applies to counting firings. Three exposures at one sequence cannot automatically represent three exposures at another. Keep peak, dwell, ramp, atmosphere and the state of the material together. A simplified cumulative counter can help track history, but it is not a physical model of every property change.
Measure the same specimen through meaningful stages
Use paired identities to measure resistance, geometry or another relevant quantity before and after selected operations. Keep temperature and electrical contacts consistent. Group averages can hide different shifts among individual circuits, especially when the initial process distribution is broad.
Include an appropriate comparison condition when separating heat-only effects from added-material effects. For example, an uncoated specimen receiving the same thermal cycle can help distinguish refiring from overglaze interaction. Such a comparison should preserve the relevant geometry and loading rather than introducing a different coupon that follows a different temperature profile.
Record the initial value and individual change rather than only the final pass count. For a resistance comparison, calculate each specimen's fractional shift from its own pre-exposure value. This prevents a broad starting distribution from masking a systematic thermal effect. Examine whether the shift depends on material grade, geometry or panel position before defining one common adjustment for the entire circuit family.
Include stress introduced by attached components
Later thermal operations occur after the circuit may be attached to leads, a package or a heat sink. These connections can restrain expansion and change the stress state even when the ceramic materials themselves have already survived higher temperatures. The temperature number alone does not describe this new mechanical condition.
Record whether the assembly is clamped during cure or cooled while attached to a large metal part. Review the removal of temporary fixtures as another change in constraint. If a crack or delamination appears after assembly, compare the attachment state and local gradients instead of dismissing the event because the temperature was below the original firing peak.
Use the ledger to evaluate process changes
When a new layer, repair step or cure is proposed, insert it into the sequence and identify every existing material that receives the added exposure. Review the affected measurements and compatibility requirements before changing the production instruction.
The handoff should state the accepted sequence and the evidence supporting its final electrical and mechanical state. If the order or materials change, the relevant comparison is reopened. This keeps the thermal-budget review useful as a design tool rather than a generic warning that all heating is risky or a blanket claim that an earlier firing proves future compatibility.
Keep optional repair operations visible in the ledger even when most parts do not receive them. A repaired subgroup has a different thermal history and should remain identifiable during later testing. Combining it silently with unrepaired parts can make an otherwise controlled qualification result difficult to interpret.
Provide the complete thermal sequence
Send all exposures in order, including the materials and constraints present at each stage.
- Layer stack and material grades, with the operation at which each layer or component is introduced.
- Drying, firing, refiring, soldering, adhesive cure and permitted rework profiles.
- Part-temperature measurement method, load arrangement, atmosphere and fixture or package constraints.
- Paired electrical or physical measurements across the operations that most affect the circuit.
