Interface spreading after clamp assembly

Draw the footprint needed after closure

Mark the heat-transfer region on both mating parts in a common coordinate system. Include any offset between the printed heater envelope and the load surface. The required material footprint may need to cover more than the resistor artwork, while a terminal relief may need to remain clear even when it lies within the ceramic outline. Label those regions according to their function rather than drawing one undifferentiated rectangle called thermal paste.

Next mark locations where displaced material can go. A recess, open edge, screw hole or cable exit can act as a preferential outlet during closure. The thermal objective is to establish contact across the intended region, and the assembly objective is to achieve it without feeding these outlets in an uncontrolled way. A photograph of the deposit before mating cannot establish either outcome. Record the proposed final gap and the order in which the surfaces approach each other.

Match the spreading question to the material form

A grease, dispensable gel, uncured adhesive and preformed pad do not redistribute in the same way. A grease can flow during closure without a cure stage; an adhesive can change viscosity and then lock its footprint as it cures. A reinforced pad may conform locally while retaining a defined outline. Use the chosen material's application and handling data to decide what needs to be controlled.

Do not borrow a thin-bondline value from a grease specification to set compression for a gap pad. Manufacturer descriptions of dispensing, stenciling and low-force conformance establish that application format matters, but the installed behavior still depends on the actual assembly. Storage history, material temperature and mixing requirements must remain attached to the named formulation.

For a flowable material, the available assembly time can influence whether separate deposits meet before cure or viscosity change restricts movement. For a pad, protective-liner removal, cutout orientation and placement may dominate instead. The coverage review should follow the mechanism of the selected form rather than force every material through the same dispense-volume calculation.

Follow the moving closure front and the air escape route

When one edge closes before the opposite edge, the gap acts as a moving wedge. Material may be pushed toward the open side before a uniform final separation is established. Multiple deposits can merge and enclose air between them; a perimeter bead can seal an interior pocket before the center is wetted. Whether this occurs depends on deposit geometry, surfaces, viscosity and closure history, so it should be investigated on the actual pattern.

A vent route for displaced air must remain distinguishable from a route that drains interface material away from the required region. A notch can serve both purposes at different stages of closure. Inspect the first contact points, local stops and fixture tilt to understand the direction of redistribution. Changing the clamp sequence can change the footprint even when the dispensed mass and final screw settings remain identical. The investigation here concerns that physical coverage change, not a recalculation of the bulk ceramic spreading angle.

Use a retained-volume budget to expose impossible coverage

An approximately incompressible flowable material needs enough retained volume to fill the intended gap. Dividing retained volume by representative final thickness gives an available filled area. This is a necessary geometric check, not proof of wetting. A volume can be sufficient overall while concentrated in one thick island. The useful budget separates deposited material from material left on dispensing tools, displaced beyond the contact region or trapped in cavities that do not contribute to the required footprint.

Suppose an illustrative 30 mm by 20 mm region must be filled at a uniform 0.15 mm separation. It requires 90 mm³ of retained material. A 100 mm³ deposit losing 25 mm³ into an edge relief retains only 75 mm³, enough for 500 mm² at that gap. That is 100 mm² less than the intended 600 mm² footprint. If only 10 mm³ escapes, the retained 90 mm³ is geometrically sufficient, but air entrapment or uneven distribution can still leave dry areas.

Reducing the gap to 0.125 mm would let 75 mm³ occupy 600 mm² in the ideal budget. That does not authorize greater clamp compression: the minimum gap may be constrained by particles, surface geometry, mechanical stops or the material's permitted installation. Use the arithmetic to identify the conflicting requirements before deciding whether to change deposited amount, escape geometry or the mechanical stack.

Observe the closed interface without creating a false footprint

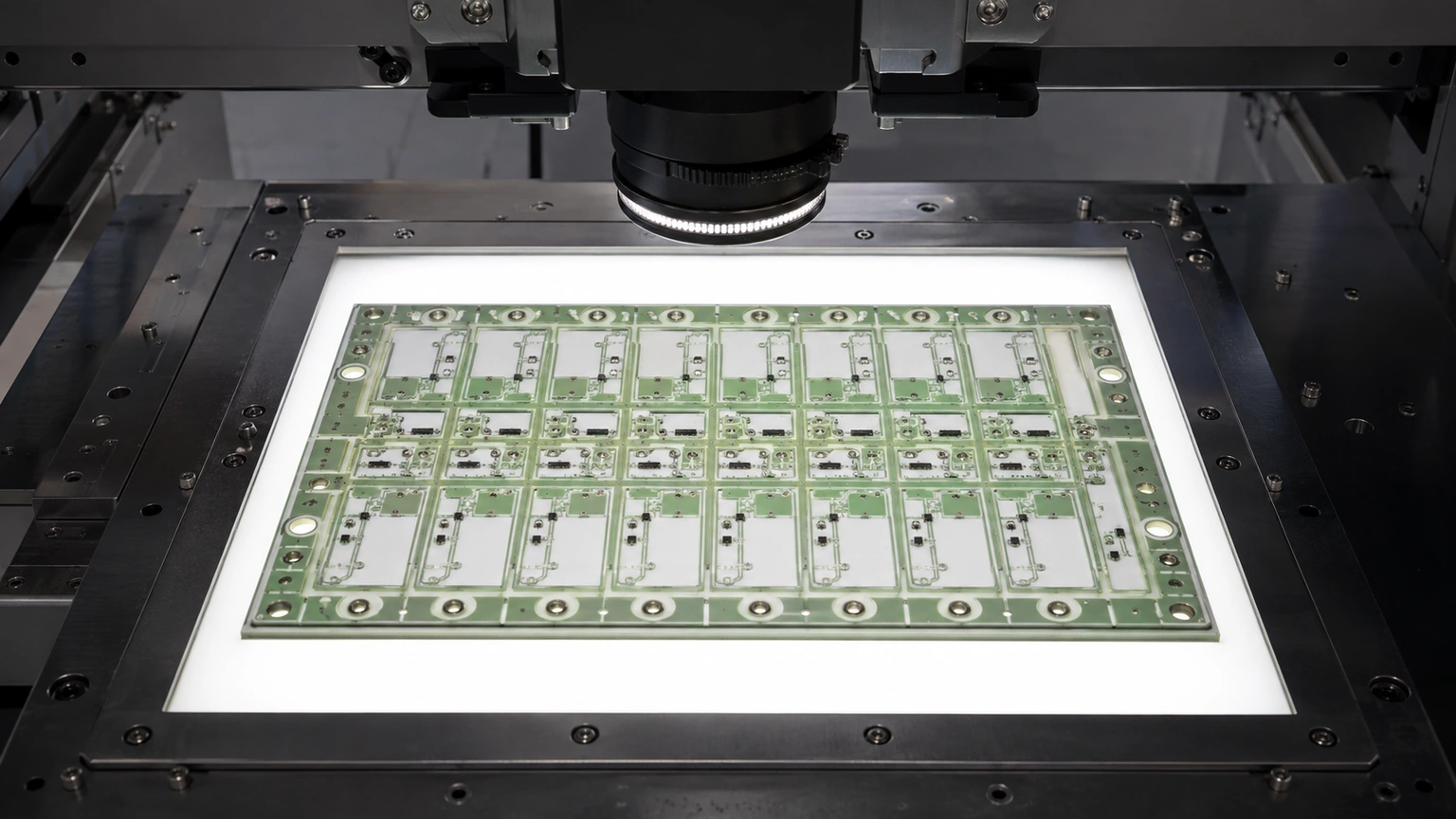

Choose an inspection method that can resolve the required coverage on representative assemblies. A transparent development surrogate can reveal movement during closure, but its stiffness, surface chemistry and roughness may differ from the production parts. Correlate any surrogate observation with evidence from the actual construction before using it as acceptance proof.

Separating a completed sandwich can stretch, split or smear the material. The residue on each face is therefore a separation record, not automatically an exact map of the closed bondline. Document how the assembly was opened and compare complementary faces at matched coordinates. Where a critical dry island remains uncertain, use an appropriate section or qualified nondestructive method that can address the closed state.

Record dispense amount, pattern, closure motion, dwell and final displacement with every footprint observation. Mass measurements need the material density and a treatment of residues if they are converted to volume. Keep local thickness evidence alongside coverage; a broad footprint can contain a central mound that holds the surrounding surfaces apart.

Use the shape of the defect to select the next comparison

A dry region that repeatedly appears beside an outlet suggests preferential flow toward that outlet. A central void surrounded by a merged ring suggests an enclosed air path. Material reaching a terminal opening indicates that the escape boundary or deposited amount conflicts with the keepout, even if the heater temperature looks acceptable. Treat these patterns as hypotheses and change one relevant assembly factor at a time.

Thermal observations should be registered to the footprint evidence. A hot area aligned with a dry island strengthens an interface explanation, but a heat-generation variation can produce a similar temperature pattern. Compare at measured terminal power and preserve the heater artwork orientation. A broad fall in temperature after reassembly is less informative than a location-specific change accompanied by a documented coverage correction.

Check whether the first assembled footprint remains in place

The initial closure result may change during cure, heating or repeated movement between the mating surfaces. Select the exposures that represent the intended use and inspect for material migration or new uncovered regions. A material manufacturer's cycling data describe the tested formulation and fixture; they cannot establish retention in a heater with different motion, orientation and edge openings. Preserve the as-assembled observation before exposure so the later footprint can be compared with a known starting condition. Include the final installation orientation and harness loads, because gravity and mechanically induced separation may affect an unconstrained interface. Where the assembly is intended to be serviced, examine whether opening and reclosing it requires new material rather than assuming the old split footprint will restore itself.

Control deposited pattern and installed coverage as separate outputs

The assembly definition should link a named material, preparation condition and placement pattern to a measured closure state. Specify the functional coverage region, prohibited spread regions and the evidence used to verify them. A volume target without a pattern can permit air entrapment; a pattern without an amount can leave an impossible volume budget.

When the receiving part, stop height or clamp motion changes, reassess the footprint even if thermal conductivity and heater artwork remain unchanged. Close the process review on repeatable contact where heat must pass and controlled material location elsewhere. This gives the thermal analyst a defensible installed geometry and gives manufacturing an observable result to reproduce.
