Paste-to-Ceramic Interfaces: Thermal Expansion and Adhesion Tests

Define the material pair and its processed state

List the ceramic grade, surface finish, paste grade and the thermal sequence that forms the interface. Include any earlier metallization or cleaning step beneath the evaluated layer. The term ceramic adhesion is too broad when different substrates and bonding systems are being compared.

Material suppliers distinguish substrate-specific conductor and dielectric systems. Use that compatibility information for the actual pair rather than assuming a paste that bonds to alumina behaves identically on AlN. A change in substrate or surface preparation is a material-system change even if the printed pattern remains the same.

Estimate the free movement before considering restraint

The difference in free expansion between a layer and substrate grows with temperature change and the relevant lateral dimension. This provides a useful screening quantity. It helps identify why a long continuous pad may experience a different mismatch displacement from a small isolated feature.

The bonded structure cannot generally achieve both free expansions independently. Stress depends on thickness, stiffness, relaxation, geometry and the temperature at which the interface develops. A free-strain estimate therefore does not establish the actual stress or a permissible temperature range.

Inspect edges and transitions where stress can concentrate

A continuous large-area layer, a narrow line and a pad with sharp corners constrain the interface differently. Coverage boundaries and thickness steps can localize stress. Include these features in a comparison coupon when they are present near the production failure.

A broad uniform test patch may demonstrate one material interaction while missing the geometry that limits the real circuit. Conversely, an unnecessarily severe notch can create a test failure unrelated to normal use. Choose a specimen that answers the actual design question and state where it differs from the production geometry.

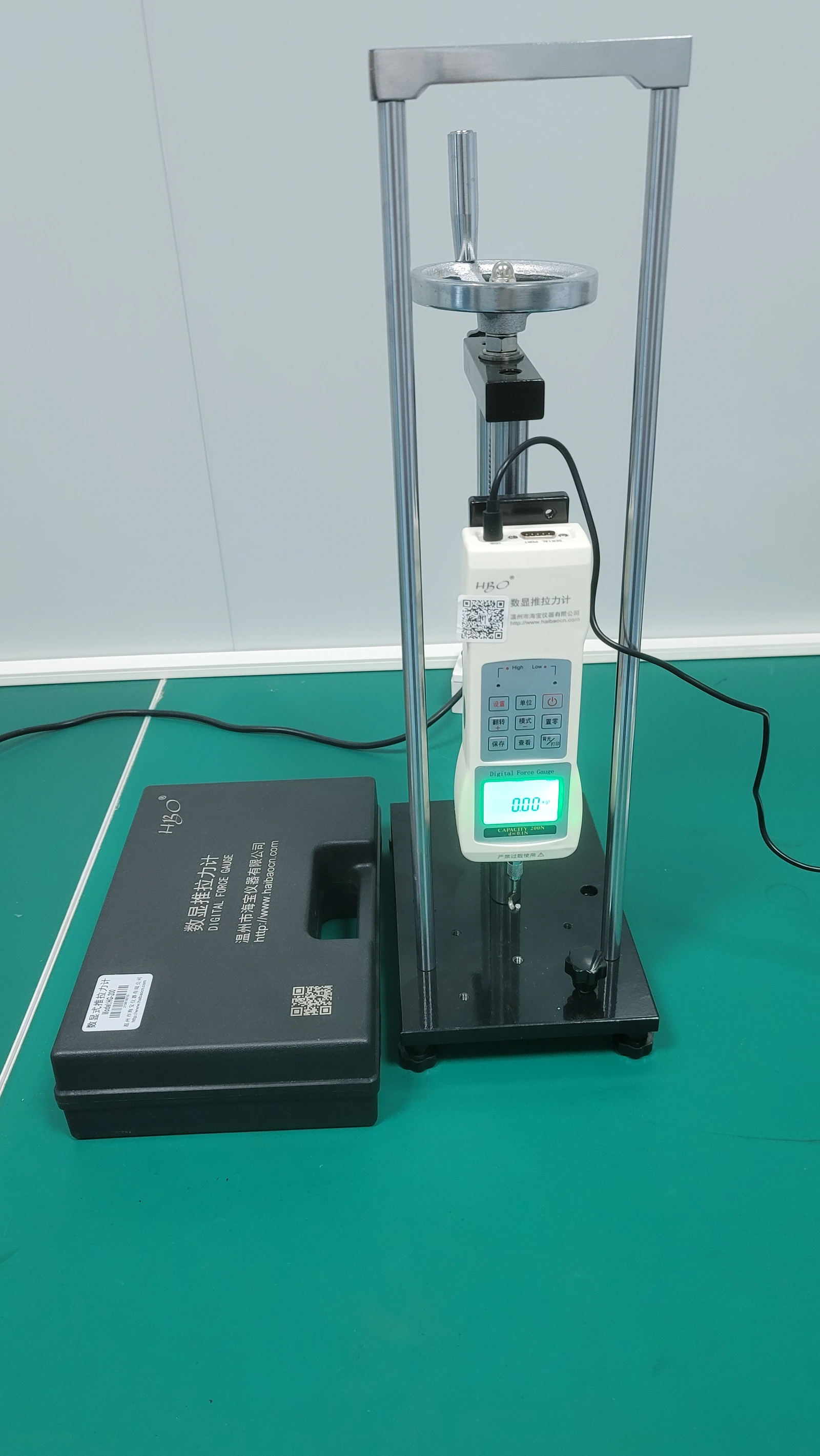

Understand what the adhesion test actually loads

A pull, shear, peel or bend arrangement imposes a different stress distribution. The attachment used to apply force may fail before the printed interface, or it may introduce a local stress that does not occur in service. Record the loading direction, rate, fixture support and attachment geometry.

Do not compare force values from different pad areas or loading arrangements without an appropriate interpretation. Dividing force by nominal area can be useful for reporting but does not make a nonuniform stress field uniform. The failure location and surface condition remain essential to the result.

A nominal stress calculated as force divided by area can be retained as a reporting quantity, but its meaning must remain tied to the fixture. Edge-loaded joints and bending arrangements produce nonuniform stress fields. Two tests with the same nominal value may initiate failure at different locations. Compare like-for-like geometries and retain the force-displacement record when it helps identify slip, progressive separation or a sudden brittle event.

Compare before and after the relevant temperature history

Measure or inspect the interface before and after the thermal sequence that matters to the application. This may be an added firing, assembly heating or an operating cycle. Keep the specimen state and test arrangement consistent so a change can be assigned to the exposure rather than a different fixture.

Record specimen temperature and restraint during the exposure. A freely supported coupon and a circuit bonded to a metal housing can experience different stresses under the same chamber program. The test should either represent the installed condition or state clearly which material interaction it isolates.

Separate preparation effects from expansion effects

If adhesion varies, compare incoming surface condition and cleaning before concluding that thermal expansion is the cause. Residue, roughness changes or local contamination can weaken the interface and alter where a later thermal load produces separation. Thermal stress may reveal a weak interface without being the only root cause.

Use a controlled preparation comparison with the same material pair and thermal history. Preserve failure surfaces before cleaning or sectioning. A post-failure treatment can remove residues that would have helped distinguish inadequate preparation from a material incompatibility.

Use fracture observations to test the proposed mechanism

Examine fracture origin and propagation evidence rather than relying on the final crack outline alone. For a printed interface, correlate the observed separation with layer boundaries, thickness transitions and the direction of loading.

A section should pass through a region identified by the original failure or electrical evidence. Record preparation artifacts and compare several relevant locations if the damage is nonuniform. An intact section away from the failed edge does not disprove a local interface problem.

Select a corrective comparison that addresses the limiting interface

Possible changes include surface preparation, compatible material selection, reduced coverage concentration, altered thickness or more compliant attachment. Choose the change from the evidence. Increasing adhesion in one test may not improve the circuit if it simply transfers failure into the ceramic.

The final handoff should identify the accepted material pair, geometry, thermal history and test method. Include the failure locations and any remaining model assumptions. This keeps the interface decision grounded in the intended circuit instead of turning a single coupon result into a universal adhesion or temperature capability.
