Polymer Overcoats: Cure Compatibility and Masking for Connections

Identify the complete polymer-coated stack

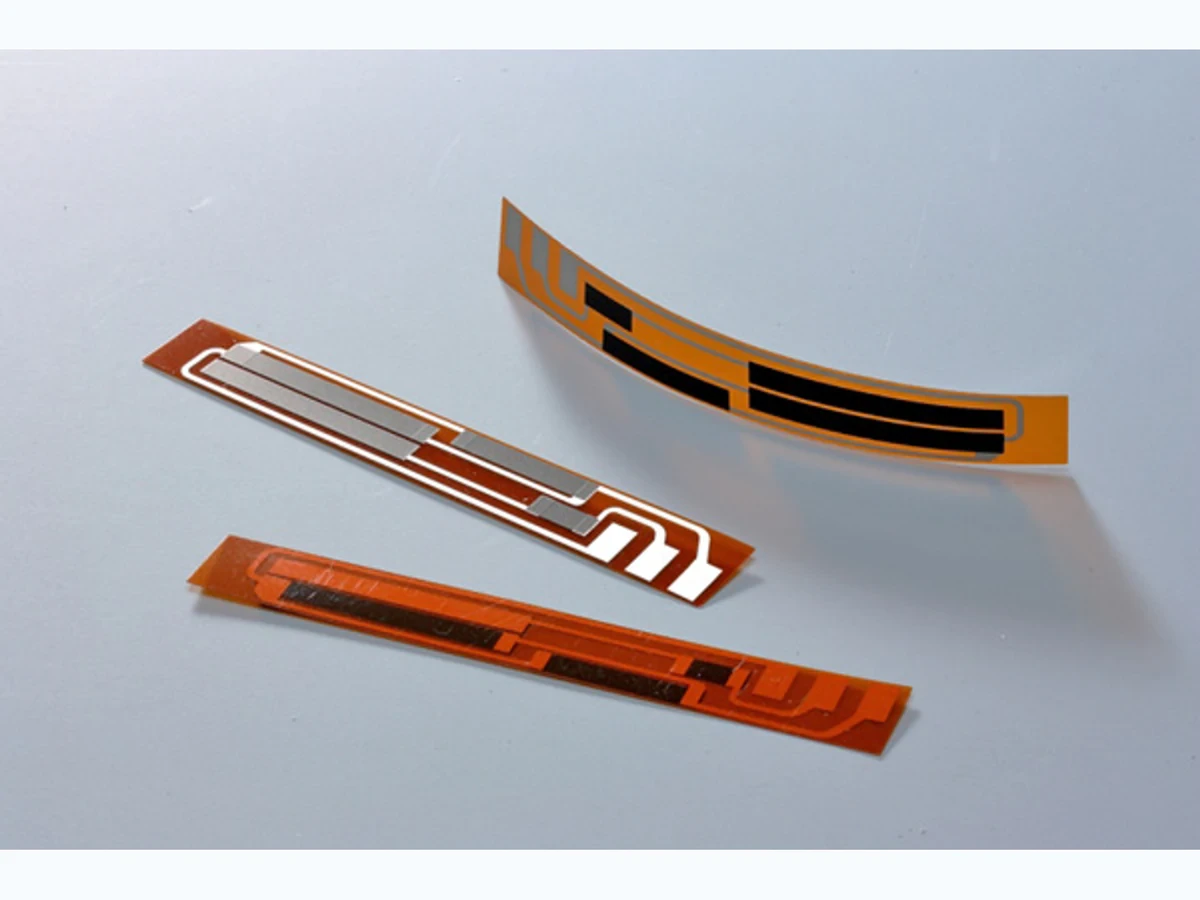

List the substrate, conductive or resistive ink, coating and any adhesive or component already present. A polymer layer may be applied to a flexible film, an organic circuit board or a ceramic circuit, but those combinations do not share one universal thermal limit. The weakest compatible element constrains the process.

Polymer thick-film materials and fired ceramic systems are different processing routes. Retain that distinction in the work instruction and customer description. A polymer coating should not be described as glass simply because it is green or glossy, and a low-temperature ink should not inherit the firing conditions of a ceramic resistor paste.

Check cure requirements against every exposed material

Obtain the selected coating's cure requirements and compare them with the limits of the underlying ink, substrate and attached components. Include the actual part temperature, time and any required environmental conditions. An oven setpoint is not a complete cure record for a loaded assembly.

Do not shorten a cure solely because the surface becomes dry to the touch. Surface handling condition and the properties of the cured coating are different questions. Likewise, a longer or hotter exposure is not automatically safer if it changes resistance, adhesive behavior or substrate shape. The accepted sequence must satisfy the complete material system.

Define the opening from the operation that uses it

A solder pad requires a wettable region and fillet allowance. A test pad requires repeatable probe access. A moving contact needs an uninterrupted travel path. Draw those functional envelopes before choosing the coating opening, and include placement and boundary variation.

If removable masking is used, account for its edge and removal process. Material can accumulate near a mask boundary or remain as residue after removal. If the opening is defined by printing, inspect the final cured boundary rather than assuming the screen image matches the accessible region. Preserve a clear distinction between a cosmetic edge and a functionally critical keepout.

Check removal access before choosing a temporary mask. A mask trapped beneath a connector body may be impossible to remove cleanly after cure. Removal force can also lift a weak printed edge or leave adhesive on a contact region. Use a representative assembly to verify that the mask comes away without changing the electrical surface. Retain photographs of the opening before and after removal, and compare contact behavior with an unmasked control where contamination is a concern.

Choose the coating stage deliberately

Applying a coating before or after attachment changes both access and material exposure. Choose the sequence from the actual circuit interfaces rather than treating coating as an automatic final cosmetic step.

Measure resistance change without changing the test

Measure the same resistor or conductor before coating and after the complete cure and stabilization interval. Use the same physical contacts, test current and specimen temperature. Otherwise, a contact change or temperature difference can be mistaken for a coating effect.

A useful comparison includes an uncoated specimen receiving the same thermal exposure. If both coated and uncoated specimens shift similarly, the thermal history may dominate. If their behavior differs, investigate coating interaction, stress or environmental change with additional targeted comparisons. Do not infer the mechanism from the sign of the resistance change alone.

Pair individual resistor identities across the measurements rather than comparing only group averages. An average can remain stable while some resistors move upward and others downward. The distribution of individual changes is more useful for determining whether the coating operation consumes the available circuit tolerance.

Control the surface beneath the coating

A coating can trap contamination that was previously accessible for cleaning. Inspect and prepare the surface using a method compatible with every material present. Record the interval between preparation and coating, because handling and storage can change the exposed surface again.

For assembled circuits, define whether flux or other residues are permitted beneath the coating and how that condition is verified. A visually clear film can still cover a problematic residue. If adhesion or leakage is later poor, preserve the interface evidence before stripping the coating, since removal can erase the original surface condition.

Evaluate thickness and mechanical movement together

Coating thickness influences coverage over printed steps and the mechanical response of the coated region. On a flexible circuit, a thick local accumulation near a bend or lead exit can create a different strain distribution from the nominal flat coating. Define the intended bend region and keep unnecessary coating transitions away from the highest movement where possible.

Assess the finished assembly under its actual movement and temperature conditions. A coating that remains intact on a flat coupon may behave differently at a folded lead exit. Measure electrical continuity or resistance during the relevant movement if the circuit function depends on it, and record whether changes are reversible or permanent.

Use functional acceptance beyond appearance

The acceptance plan should include cured coverage, connection access, adhesion-related observations and the electrical quantities that the coating can affect. State where measurements occur and how long after cure they are taken. A consistent inspection interval improves comparison between batches and process changes.

When the coating, ink, substrate or cure equipment changes, review the affected interfaces. A previously successful cure schedule is evidence for its documented combination, not a standing approval for all polymer circuits. Provide the material stack and connection-window requirements with the drawing so the coating decision can be assessed before the layout is fixed.
