Post-Fire Rinse Carryover: Recirculation Is Not Contaminant Removal

Calculate rinse-reservoir loading and fresh-liquid exchange without mistaking recirculation, dilution or a clear bath for verified ceramic-circuit cleanliness.

Send Drawings6 min read
High-resolution industrial engineering scene showing drying oven in a clean thick-film ceramic circuit context.

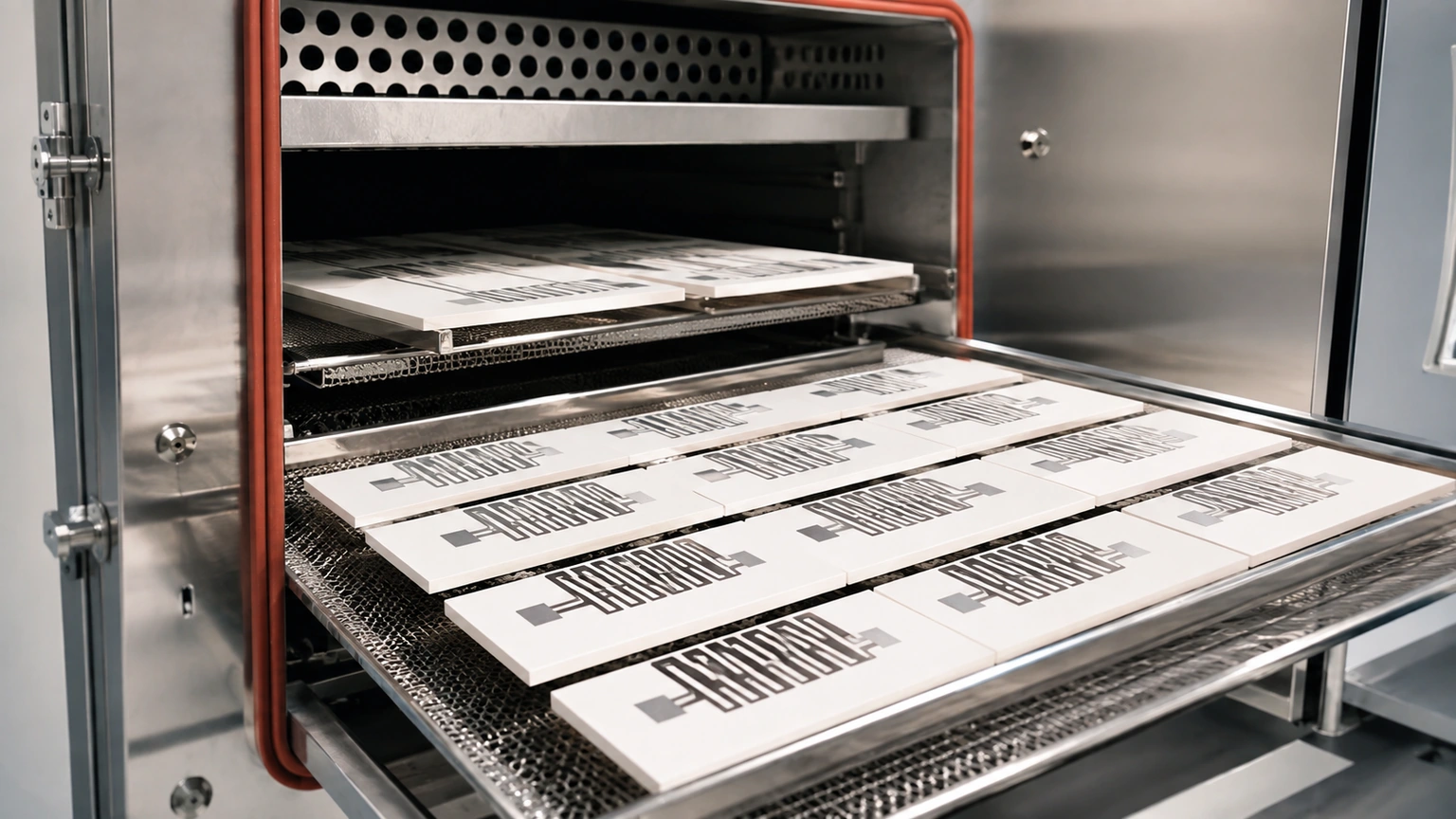

Engineering illustration; not a product photograph or a test result.
On this page

A rinse can remain visibly clear while dissolved material accumulates from successive carriers and ceramic circuits. Pumping that liquid around the same reservoir does not remove the contaminant unless a verified separation step or actual liquid exchange takes it out. A simple mass balance helps distinguish circulation, dilution and removal before a rinse comparison is used to explain residue on bond pads, exposed resistor regions or glaze openings.

Key design decisions

  • Close the liquid boundary around the reservoir, connected piping and carrier-held liquid.
  • Model a named dissolved contaminant rather than treating every residue as one interchangeable species.
  • Count fresh exchange separately from flow that returns to the same tank.
  • Verify the circuit's final surface condition instead of substituting reservoir concentration for product cleanliness.

1. Start after liquid and material compatibility are established

This calculation applies to a defined rinse liquid already selected for the actual fired circuit and assembly state. It does not justify exposing an unknown resistor, AlN surface, adhesive or bond-pad finish to water or a new solvent. Keep the compatible chemistry, temperature, mechanical action and drying route unchanged while investigating the liquid balance.

Name the contaminant being tracked and its concentration unit. A fully dissolved, nonreacting species supports a different model from suspended particles, an emulsion or material that adsorbs strongly onto surfaces. If the contaminant changes chemical form or deposits onto the tank wall, include that mechanism or state why the simple dissolved-mass calculation no longer represents the observation.

2. Account for the liquid entering with the load

Liquid carried from an earlier operation can reside on both the product and its basket or fixture. Measure or bound the retained volume under the actual orientation and drain interval. Counting ceramic surface area alone can miss liquid held in a carrier recess or a bundle of parts.

For a hypothetical incoming retained volume of 10 mL at 1,000 mg/L, the dissolved mass entering the rinse is 0.010 L × 1,000 mg/L = 10 mg. If that mass is dispersed into a final mixed volume of 5 L, it contributes 2 mg/L. The stated final volume matters; adding 10 mL to an initial 5 L without removing liquid gives a slightly different denominator.

3. Separate circulation from a removal mechanism

Suppose a closed 5 L reservoir contains 100 mg of the tracked species, giving 20 mg/L. Circulating the same liquid at 5 L/min for three minutes moves 15 L through the loop, but the loop still contains 100 mg if no species leaves and no separation occurs. The circulated volume is not a fresh-liquid exchange volume.

A particulate filter does not automatically remove a dissolved species. An adsorber, ion-exchange stage or other separator needs its own compatible operating boundary and demonstrated removal behavior. If a device is included, track what is captured, breakthrough behavior and any material it releases. Avoid assigning an arbitrary removal percentage simply because the return line passes through a cartridge.

4. Calculate a deliberate drain-and-refill sequence

For a fully mixed reservoir, removing a fraction f of its liquid removes the same fraction of the dissolved mass. Replacing that liquid with contaminant-free compatible liquid and mixing again gives Cnext = Cprevious × (1 − f), provided there is no added carryover, reaction or retained unexchanged volume.

Starting from 20 mg/L, three separate half-volume exchanges give 20 × 0.5³ = 2.5 mg/L. The exchanges consume 7.5 L of fresh liquid for the 5 L reservoir. This result describes the ideal reservoir concentration after the third exchange. It does not show that liquid trapped beneath a component or in a carrier pocket has exchanged at the same rate.

Cn = C0(1 − f)^n

  • C0: initial concentration of the tracked dissolved species
  • Cn: concentration after n identical mixed drain-and-refill exchanges
  • f: fraction of the mixed working volume removed in each exchange
  • n: number of completed exchanges

Constant restored volume, complete mixing before each removal, contaminant-free refill and no additional source, sink or inaccessible retained liquid.

5. Do not substitute the batch result for continuous overflow

A continuously mixed vessel receiving clean liquid while the same flow leaves follows a different concentration history. Under the same ideal assumptions and with no new contaminant input, C/C0 = exp(−Qt/V), where Q is the actual fresh inflow and outflow, not the recirculation rate.

For 7.5 L of fresh exchange through a 5 L working volume, Qt/V = 1.5 and the remaining fraction is exp(−1.5) ≈ 0.2231. Starting from 20 mg/L gives about 4.46 mg/L, rather than the 2.5 mg/L from three discrete half-volume exchanges. The difference follows from when contaminated liquid leaves; it is not evidence that one unverified shop-floor rinse will achieve either predicted value.

6. Keep successive-load additions in the sequence

A rinse used repeatedly receives new material after each earlier removal step. The order of incoming load, exchange and part withdrawal changes the concentration at the final product contact. Write the balance in that order rather than dividing total incoming mass by total liquid purchased for the shift.

If a 5 L reservoir receives 10 mg per cycle after each half-volume exchange, an ideal recurrence is Cnext = 0.5Cprevious + 2 mg/L. Its steady concentration is 4 mg/L, not zero. This assumes constant volume and the same incoming mass every cycle. A large carrier or a changed upstream concentration breaks that assumption and should trigger a new balance rather than a more favorable average.

7. Match a concentration mismatch to the missing term

Use disagreement between the calculation and observation to locate an unmodeled route. Preserve the measured liquid locations and load sequence so the comparison can be repeated.

Rinse-balance discrepancies and targeted checks
Observed discrepancyTerm to investigateConclusion to avoid
Concentration does not fall during recirculationNo actual species removal from the closed loopMore pump flow must make the liquid chemically clean
Concentration falls slower than the ideal exchange modelDead volume, incomplete mixing or continuing releaseThe analytical instrument must be wrong
Clean final reservoir but residue on a recessed featureLocal retention, poor exchange or drying redepositionReservoir quality proves every product surface is clean
Abrupt increase after one carrierRetained volume and upstream concentration of that loadAll loads introduce the same mass
Particle count improves while dissolved-ion result is unchangedDifferent removal mechanisms for different speciesOne filter efficiency applies to every contaminant
Results depend strongly on sample locationMixing and sampling representativenessThe lowest reading represents the whole rinse

8. Close the balance with product and liquid observations

Use an appropriate analytical method for the tracked species and a sampling location representative of the decision. Conductivity may help monitor a known stable ionic system, but it is not a universal conversion to total residue mass when composition changes. Pair final-liquid observations with the required surface or functional check on the actual ceramic circuit.

The final process record should state the working volume, exchange mechanism, load history, sampling point and maximum evaluated carryover. Keep spent liquid within the site's approved collection and treatment route; the model does not authorize discharge. A useful outcome is a verified explanation of how material leaves the product and the rinse system, rather than a claim that clear liquid or high circulation alone guarantees clean attachment surfaces.

Send the rinse boundary and carryover sequence

Provide the actual liquid route and product-contact sequence for a reproducible mass-balance review.

  • Compatible rinse liquid and the fired or assembled materials it contacts
  • Working tank and loop volumes, fresh inflow, outflow and recirculation paths
  • Tracked species, concentration units and analytical sampling method
  • Carrier geometry, retained-liquid estimate and upstream concentration by load
  • Drain/refill or continuous-exchange order and any verified separation stage
  • Final surface or electrical acceptance checks and controlled spent-liquid handling
