Post-Fire Cleaning Compatibility with Exposed Resistors and Bond Pads

Plan a staged cleaning comparison for fired ceramic circuits, separating contaminant removal from resistor drift, bond-pad damage and redeposited residue.

Send Drawings6 min read

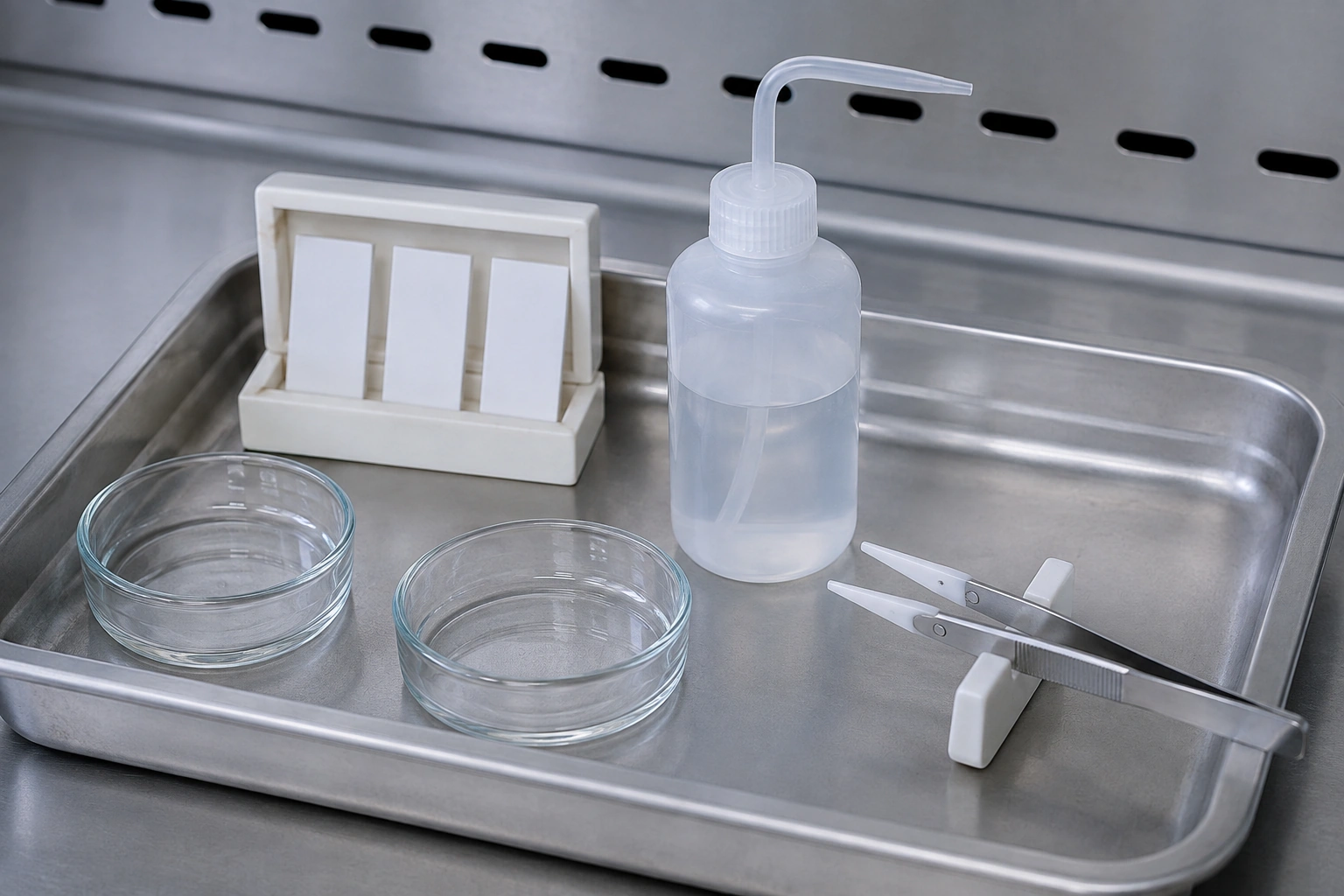

Ceramic witness coupons, clean dishes and handling tools prepared for a cleaning compatibility comparison.
Engineering illustration; not a product photograph or a test result.
On this page

Cleaning a fired ceramic circuit is successful only when the unwanted contamination is removed without compromising the surfaces that must continue to function. Exposed resistor films, trim regions, glass boundaries and bond pads do not all respond to the same exposure in the same way. A staged compatibility comparison separates cleaning effectiveness from electrical change and attachment risk. The starting question is what must be removed from which surface, not which solvent makes the whole board look brightest.

Key design decisions

  • Identify the contaminant and every exposed material before selecting a cleaner or mechanical action.
  • Compare matched specimens with defined baseline measurements and an unchanged handling control.
  • Verify the next functional operation, including attachment where relevant, instead of accepting visual cleanliness alone.

Map the exposed stack at the cleaning stage

A post-fire circuit may contain a fired conductor, an unprotected resistor, a trimmed region, overglaze openings and a plated or otherwise finished attachment pad. List the actual materials and their state. If components, adhesive, polymer coating or wire bonds are already present, include them in the compatibility review rather than treating the board as bare ceramic.

Mark which faces can contact fixtures, wipes or baskets. An apparently robust glass-covered region may border a small exposed feature that is more sensitive to mechanical contact. Keep the protection map aligned with the current artwork so a changed pad opening does not silently receive an older whole-board cleaning instruction. Material identity and visible green coloration are not interchangeable evidence.

Identify removal needs before selecting chemistry

Distinguish loose ceramic particles, handling contamination, process residue and material that is actually part of the functional film. A deposit near a trim cut should not be removed aggressively until its relationship to the resistor has been understood. Preserve an untreated specimen when cleaning could erase evidence of the original condition.

Cleaner selection depends on the contaminant and surface combination, while concentration, contact time, temperature and agitation affect the result. Supplier compatibility information is a starting boundary, not permission to extend exposure indefinitely. Obtain the current product instructions and safety information for the proposed cleaning system; do not infer suitability from the broad labels electronics cleaner or high purity.

Build a comparison that can identify the cause of change

Select matched specimens carrying the actual resistor and pad construction. Record resistance under a controlled temperature and contact arrangement before exposure. Photograph the same surface regions with consistent lighting and magnification. Keep specimen identity through cleaning, drying and the later attachment assessment so measurements can be paired rather than compared as unrelated group averages.

Include an untreated handling control and, where useful, a clean specimen exposed to the proposed process. The first helps reveal measurement or storage drift; the second helps separate cleaner effects from removal of the original contamination. Do not clean every available part at once. A comparison loses much of its value if no representative original surface remains for examination.

Separate chemical exposure from mechanical action

Begin with a bounded exposure selected from the material and cleaner guidance, then evaluate the response before widening the condition. Compare soaking, directed rinsing or wiping as distinct operations where applicable. A chemical change and a harder brushing action introduced together make it difficult to identify the reason for a damaged resistor edge or a changed pad appearance.

Ultrasonic agitation introduces an additional mechanical mechanism through cavitation. Its compatibility must be evaluated for the actual assembly, not assumed because the liquid itself is compatible. Keep basket contact, part orientation, loading and exposure history in the trial record. Follow equipment and chemical safety requirements; a heated or energized bath is not an appropriate place for an improvised solvent substitution.

Check where dissolved material goes next

A cleaner can dissolve a contaminant without removing it from the circuit. If the carrying liquid dries in place, material can reappear on a pad or along an overglaze boundary. Review drainage, rinse effectiveness and the cleanliness of the final liquid contact. A change from a visible particle to an invisible residue is not necessarily an improvement for an attachment interface.

Define drying by a process appropriate to the complete stack. Residual liquid in a hole or beneath an attached component can affect a later measurement even when the top face looks dry. Keep the interval between cleaning, measurement and attachment consistent. If delayed recovery is being investigated, report the time history rather than selecting the most favorable reading.

Match acceptance to each functional surface

Use different observations for surfaces with different jobs. An electrical reading, a microscope view and an attachment trial answer different questions. None should automatically replace another merely because it is easier to obtain. State the required result and decision rule before comparing cleaning candidates.

Cleaning responses and the function they can threaten
RegionObservation to compareDecision boundary
Exposed resistor or trim regionPaired resistance change and local surface conditionUse the circuit's allowed shift and stable measurement conditions
Bond padResidue, surface damage and the relevant attachment responseA brighter pad does not establish bondability
Glass edge or openingLifting, cracking, residue accumulation or local exposureAssess the specified protected area and adjacent function
Narrow conductor gapParticle removal and residue remaining between featuresUse the required electrical isolation method, not color alone
Attached component regionTrapped liquid, material compatibility and mechanical integrityEvaluate the actual assembly state after the defined drying step

Separate resistor change from contact and temperature effects

Cleaning can alter the probe interface as well as the circuit surface. Keep contact locations and the electrical measurement method consistent, and repeat representative measurements with deliberate reseating where that is part of the method. A reading that changes when the probe moves is not sufficient evidence of a permanent film change.

Compare each resistor with its own baseline and inspect the distribution of changes across geometry and position. If the cleaned group and the handling control move together, investigate shared conditions before attributing the shift to chemistry. If only one geometry moves, review its exposed area, trim configuration and local residue. Avoid applying a single average correction to a mixture of different responses.

Carry compatibility through the next assembly operation

For bond pads, evaluate the relevant downstream attachment using the agreed material, tool and acceptance method. Surface appearance is a useful screening observation but does not establish that the completed joint will meet its requirement. Keep failed specimens and identify the failure location so a weak wire, pad interface or substrate condition is not collapsed into one generic cleaning result. Include the storage interval and handling between cleaning and bonding because a good immediate result may not represent the actual assembly sequence.

Transfer the cleaner identity, allowed exposure, mechanical action, rinse, drying, handling interval and protected surfaces as one controlled process. A new cleaner formulation, resistor material, pad finish or assembly state reopens the affected comparison. Retain the original observations alongside the accepted method; this makes later changes traceable without claiming that a single cleaning trial qualifies every ceramic circuit.

Send the exposed materials and cleaning objective

Provide the surface and process information needed to compare cleaning methods without sacrificing electrical or attachment function.

  • Substrate grade, fired conductor and resistor materials, trim state, overglaze openings and bond-pad finish.
  • Contaminant description, original photographs, proposed cleaner identity and its current technical and safety instructions.
  • Chemical exposure, mechanical action, rinse, drying and the interval before electrical measurement or assembly.
  • Paired resistance data, handling-control observations, attachment requirements and retained untreated specimens.
