Resistor Corners: When the Number-of-Squares Model Breaks Down

Identify the assumption hidden in square counting

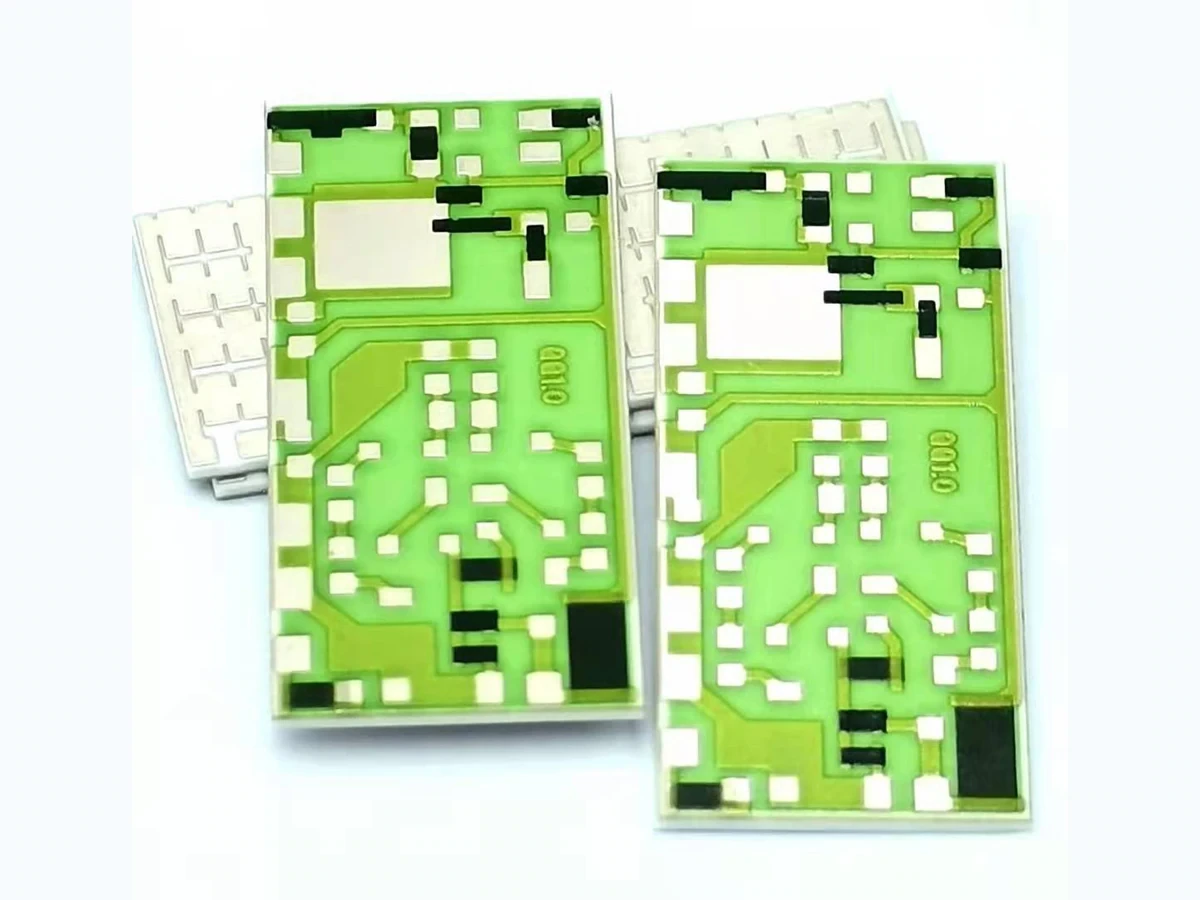

A rectangular strip with full-width end contacts can be represented by a uniform sheet resistance multiplied by its length-to-width ratio. That relationship assumes the voltage changes primarily along the length and the current density is reasonably uniform across a section. Connecting several such rectangles in series is valid only when the boundaries between them preserve that behavior.

At a bend, the current turns through a two-dimensional region. Drawing imaginary square boundaries does not force current to cross each boundary uniformly. The count can therefore depend on how the designer partitions the same outline, revealing that it is an approximation rather than a unique physical description. Keep the straight-region estimate and the corner treatment explicit in calculations and drawing review.

Define a corner contribution that can be reproduced

Choose fixed reference boundaries on the straight arms entering and leaving the corner. The effective corner resistance is the voltage drop between those boundaries divided by the current, after accounting for any included straight-arm lengths. Without fixed boundaries, two reported correction factors may differ simply because one includes more of the arms.

Express the result either in ohms for a specified material condition or as equivalent squares after dividing by an appropriate sheet resistance. Equivalent squares make geometric comparison easier, but they do not remove dependence on edge shape, thickness variation or current-entry conditions. Record the corner outline and reference planes with the number; a coefficient separated from its definition is difficult to reuse responsibly.

Build a series with different numbers of identical corners

Use several coupons with the same line width, terminal structure and total straight-region square count, but different numbers of the corner under study. Include repeats and a straight reference. Arrange the pattern so neighboring corners are sufficiently separated for their current distributions to be approximately independent, then verify this assumption with a spacing comparison.

Measure the processed dimensions, not just the mask geometry. Corners can print with different rounding or edge thickness from straight lines. A regression against corner count is meaningful only if the material condition and straight contribution remain comparable. If adding corners also increases total straight length or changes terminal geometry, account for those changes explicitly rather than assigning their entire effect to the corner.

Extract the correction and examine the residuals

Write measured resistance as the common baseline plus the number of identical corners multiplied by a fitted per-corner contribution. Suppose hypothetical coupons containing two, four and six corners measure 1,020, 1,040 and 1,060 ohms after the same straight contribution is defined. The fitted incremental contribution is ten ohms per corner and the common baseline is 1,000 ohms.

This result does not establish a universal corner value. Inspect the difference between each measured value and its fitted prediction. Curvature with increasing corner count can indicate interacting corners, changing print conditions or an incomplete straight-region correction. Repeated coupons allow the model discrepancy to be compared with ordinary measurement and process scatter. A neat straight line through two points cannot provide that check.

Choose the model from the question being answered

A simple corrected square count may be sufficient to position an untrimmed nominal value. It is less suitable for predicting a local hot spot or a tightly constrained pattern with interacting turns. Match the model to the decision and its error allowance.

Avoid using an ideal point maximum as a physical rating

Finite-element software can show a rising peak field at an ideal sharp inside corner as the mesh is refined. A physical fillet can remove the ideal sharp-corner singularity, so use the measured or bounded corner shape in the model. A printed edge already has some finite shape; measuring or bounding that shape is more useful than treating an infinitely sharp point as a manufactured feature.

For resistance prediction, examine terminal voltage, total current and integrated loss, with a convergence check. For a local stress question, use a physically meaningful region and the relevant edge radius or profile. A converged total resistance does not prove that the chosen pointwise current-density maximum is meaningful. State which output is being used for the decision and why its model resolution is adequate.

Test transfer across scale and print direction

A correction established on a large corner may not transfer to a smaller one if edge rounding or thickness variation occupies a larger fraction of the geometry. Similarly, rotating the pattern relative to the print direction can expose systematic edge differences. Include these comparisons when the correction will be used across a family of layouts.

Changing resistor composition, conductor transition or thermal sequence also requires reviewing the extraction. The geometric term is conceptually separate from sheet resistance, but actual printing can couple them through local film formation. Revalidate the prediction using the finished structure rather than relying on the apparent universality of a dimensionless square factor. Retain the measurement uncertainty so the correction's useful precision is visible.

Use the correction as a bounded design input

Store the correction with its corner drawing, reference boundaries, processed dimensions, material identification, measurement current and specimen condition. Record the tested range of corner counts and spacing. This information allows another engineer to decide whether a new layout lies within the established comparison or requires a new coupon.

For quotation, send the proposed corner geometry and the resistance function it must support. Identify whether the immediate goal is untrimmed value prediction, trim-margin allocation or powered reliability evaluation. Those tasks need different evidence. A resistance correction can help reach the nominal value; it cannot by itself establish permissible power, voltage, temperature or long-term stability for the corner.
