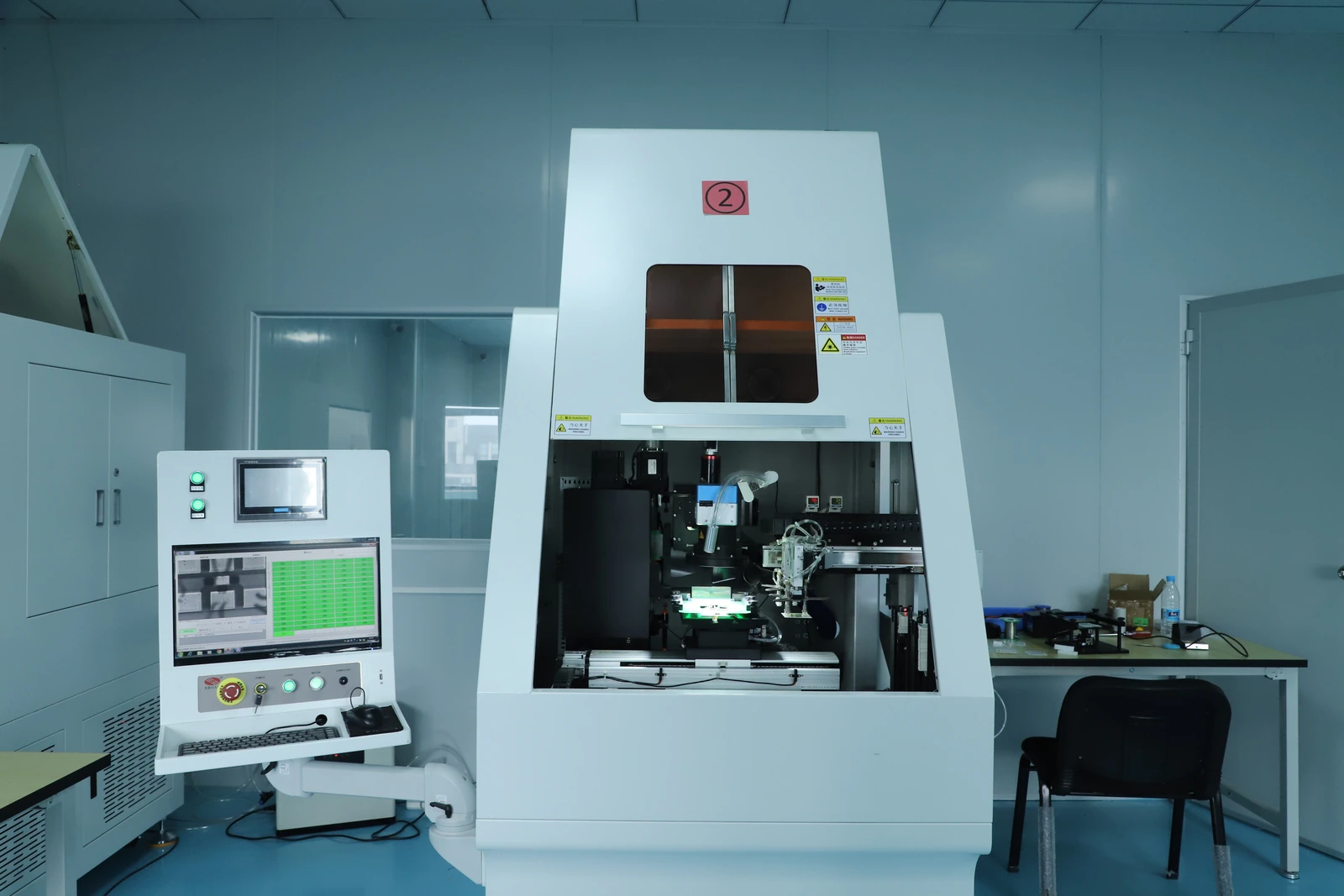

The resistance reported when a trim operation stops and the resistance measured after a defined rest period are different observations. Their difference may include cooling, measurement changes and evolution near the cut. A stability study should preserve the endpoint while establishing a controlled reference condition for later comparisons. Without that sequence, an immediate trim error can be confused with time-dependent drift, and a temperature effect can be mistaken for permanent change.
Key design decisions
- Retain the trim endpoint and a separate reference reading taken at a defined temperature and elapsed time.
- Compare trimmed samples with untrimmed controls exposed to the same handling and subsequent processing.
- Group results by starting value, trim amount and cut geometry rather than reporting only one average drift.
Distinguish endpoint, reference and later measurements
The endpoint is the reading used by the trim controller to stop removal. The reference is the agreed baseline for evaluating subsequent change. A later measurement is compared with that reference after a specified interval or exposure. These three readings need timestamps and measurement conditions; calling all of them final resistance makes the result ambiguous.
If the reference is taken after cooling, the endpoint-to-reference change should still be retained. It describes how the immediate trim decision relates to the accepted baseline. The later reference-to-observation change describes stability from that baseline. Keeping both prevents an apparently stable later sequence from hiding a large early shift that already consumed the tolerance budget.
Choose a denominator and keep it consistent
Fractional drift is commonly calculated as later resistance minus reference resistance, divided by reference resistance. Express it in percent or parts per million and keep the sign. A positive value means resistance increased. Do not switch to nominal resistance as the denominator midway through a comparison without stating the change.
For a hypothetical reference of 10,000 ohms and a later value of 10,003 ohms, the drift is 300 parts per million, or 0.03 percent. If the permitted final band is narrow, compare the actual final resistance with that band as well. A small drift does not rescue a resistor that began outside tolerance, and a larger drift may still remain inside a wider specified window.
Driftppm = 10⁶ × [R(t) − Rref] / Rref
- Rref is the resistance at the defined reference temperature, timing and processing state.
- R(t) is resistance measured under the comparison conditions after elapsed time t.
- The signed result is expressed in parts per million.
Reference and later values use the same electrical boundary and comparable measurement conditions; any temperature correction is separately established.
Measure temperature instead of assuming room conditions match
A small temperature difference can matter when the desired stability limit is tight. If an assumed TCR is 100 parts per million per degree Celsius, a one-degree difference creates a first-order 100-part-per-million resistance change. That calculation does not establish the actual TCR; it shows why sample temperature belongs in the uncertainty budget.
Allow the specimen and fixture to reach the defined condition, and avoid heating the resistor with the measurement itself. Record the temperature close enough to represent the sample, while evaluating any sensor attachment effect. A room thermostat reading cannot prove that a recently trimmed substrate has equilibrated. When correction is used, base it on an appropriate measured temperature characteristic rather than a generic material value.
Sample the early behavior and the later trend
Use observation intervals that can reveal both rapid early change and slower evolution. The appropriate schedule depends on the material, cut and subsequent processing; no single waiting time proves stability for every printed resistor. During development, collect enough early points to identify the shape of the change before reducing the sequence to a practical production check.
Record actual elapsed times rather than only nominal labels such as same day or next day. If measurements require removing samples from an environmental exposure, define cooling, transfer and rest periods. Those steps can alter the observed value. Distinguish a measurement made during exposure from one made after recovery, because they answer different questions about reversible behavior and retained change.
Relate drift to the amount and shape of adjustment
Record starting resistance, endpoint, relative increase, cut configuration and relevant process identification. Two resistors with the same final value can reach it through very different remaining current paths. Retain the cut geometry and remaining current path when comparing post-trim stability, and check whether the subsequent resistance change depends on the endpoint configuration.
Group observations by the variables that plausibly change the cut region, while keeping sample count visible. An overall mean can hide a subgroup with larger change. Do not assign a cause from grouping alone; inspect whether starting resistance, geometry and process position are confounded. A high-trim subgroup may also use a different printed size or material condition.
Use controls to separate trimming from later processing
Untrimmed controls cannot reproduce a cut, but they can show changes shared by storage, heating, coating or the measurement system. Pair them with trimmed specimens from comparable process locations. If possible, preserve an additional control that bypasses one subsequent process step.
| Observed trend | Comparison to make | Question addressed |
|---|---|---|
| Large early shift followed by a stable baseline | Compare sample temperature and endpoint measurement setup | Was the early difference dominated by cooling or measurement boundary? |
| Trimmed and untrimmed samples move together | Check common storage, thermal and measurement conditions | Is the change specific to the cut? |
| Higher adjustment groups show greater later change | Compare cut geometry at matched starting process conditions | Does the remaining path or affected region influence stability? |
| Change appears only after coating or assembly | Measure before and after that step with a control group | Which subsequent process introduces the shift? |
| One fixture shows a different trend | Re-measure stable check specimens and exchange fixtures | Is measurement drift being assigned to the resistor? |
Keep measurement scatter separate from a time trend
Repeat readings at selected intervals and include complete remounting where contacts are re-established. Short-term repeatability estimates the noise around a time point; remounting adds contact and placement variation. Compare the observed drift with both. A trend smaller than the measurement uncertainty should be reported as unresolved at that method's resolution, not as demonstrated zero drift.
Alternate specimen order or insert check specimens to expose instrument drift over a long measurement session. Keep the original values rather than rounding every reading to the final acceptance precision. Small systematic changes can disappear after rounding, while a false step can appear when a value crosses a display increment. Analyze using the retained precision and report a justified result.
Allocate the final tolerance to the specified state
Define whether acceptance occurs immediately after trimming, after stabilization, after coating or after assembly. If several stages matter, assign limits and records to each rather than relying on one unspecified final value. Use measured change distributions to position the trim target only after their direction and variability are adequately understood.
A one-time stabilization observation is not a service-life demonstration. The operating voltage, power, environment and duration require their own agreed evaluation. For quotation, provide the final state and tolerance together with the planned manufacturing sequence. This allows the adjustment strategy and verification schedule to be designed around the actual customer requirement without inventing a universal drift allowance or waiting period.
Define the post-trim stability sequence
Send the acceptance state and time-based measurements so endpoint error and later change can be assessed separately.
- Starting, endpoint, reference and later resistance values with timestamps.
- Sample temperature, measurement excitation and exact sensing boundary.
- Cut geometry, relative trim amount and specimen grouping information.
- Coating, thermal, assembly and storage steps between measurements.
- Final tolerance, required observation intervals and application exposure conditions.
