Paste rheology

Selecting a handling window from supplier viscosity conditions

Convert a supplier viscosity measurement into a bounded candidate handling interval, then verify print transfer throughout the proposed interval.

Send Drawings8 min read

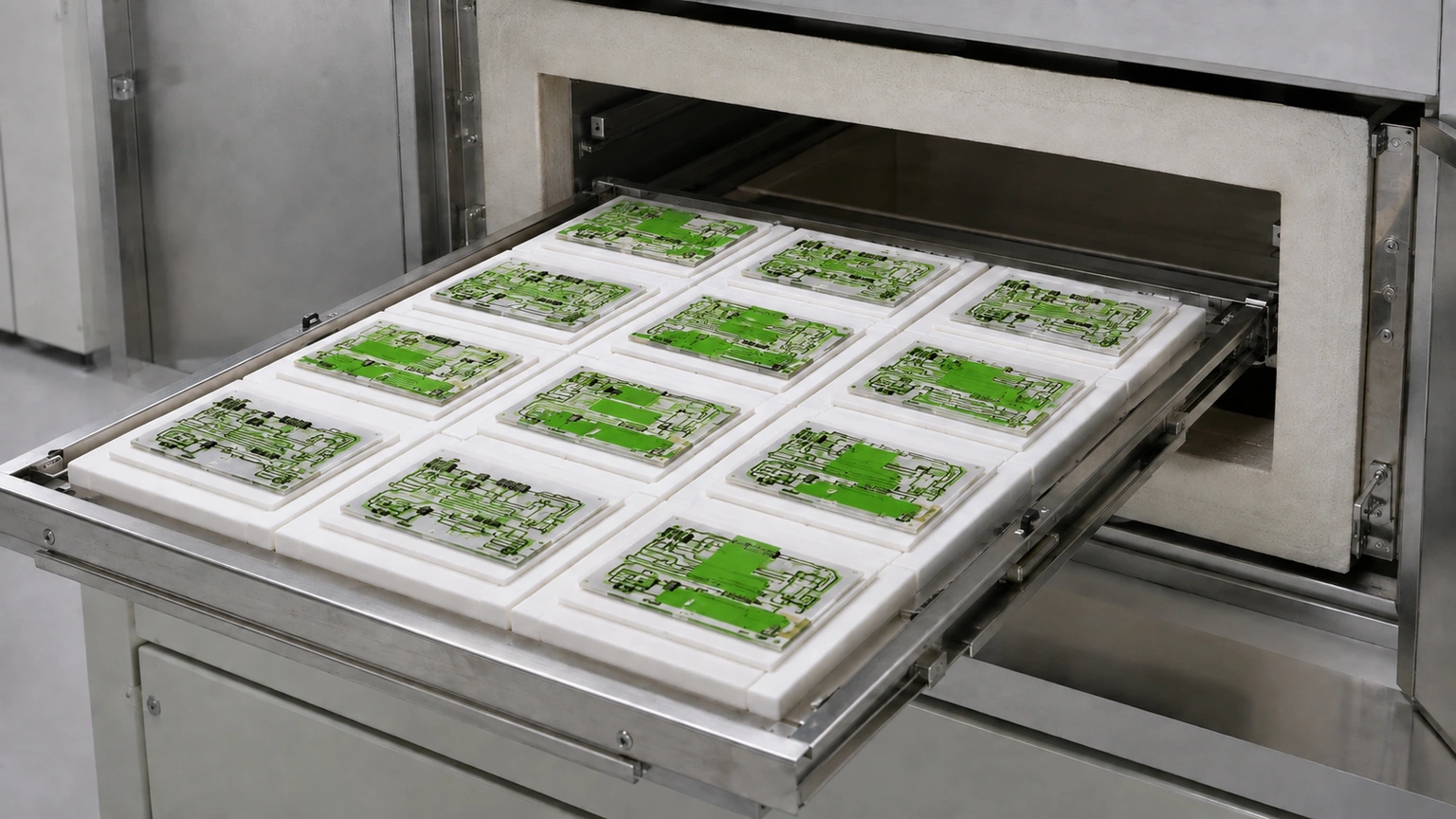

High-resolution industrial engineering scene showing drying oven panels in a clean thick-film ceramic circuit context.
Engineering illustration; not a product photograph or a test result.
On this page

A supplier viscosity value describes paste measured under a particular mechanical and thermal history. Choosing when to print requires an additional decision: which interval after preparation continues to satisfy both that measurement condition and the intended deposit geometry? That interval has a beginning, an end and explicit restart conditions. It cannot be read directly from one viscosity number.

Key design decisions

  • Preserve the supplier measurement geometry and timing before comparing values.
  • Select only the overlap between material-condition and print-feature acceptance intervals.
  • Treat replenishment, interruption and unapproved solvent addition as changes in history.

Decode the viscosity condition before choosing an interval

The viscosity line should be read together with its spindle, cup, rotational speed, temperature, sample amount and reading time. A rotational reading is an apparent viscosity for the applied flow condition. Changing the cup or speed can change the result even though the paste has not deteriorated. Record the full measurement fingerprint beside every candidate lot. A range without enough information to reproduce its measurement is a request for clarification from the material supplier, rather than a complete receiving test.

Keep the viscosity measurement separate from the print acceptance criterion. A broad wet patch and a narrow isolated resistor may respond differently to the same paste condition. The handling decision therefore begins by identifying the drawing features that will reject a deposit: a spreading edge, an incomplete opening, a displaced boundary or an unsuitable deposited amount. The supplier number helps establish comparable material state; the feature checks determine whether that state is useful for this job.

Choose a reproducible origin for elapsed time

An interval is meaningless unless its clock starts at an identifiable event. Completion of the approved mixing operation is often a useful origin for a preparation study, but only if the material instruction supports that operation. Record whether a settling period follows mixing and whether transferring paste to the screen occurs before or after the first measurement. The act of taking a sample also imposes shear, so repeated samples should follow an equivalent withdrawal method.

Distinguish elapsed bench time from accumulated screen exposure. A covered container waiting beside the printer has a different history from paste repeatedly swept across a screen. A study that mixes those histories cannot support a clean opening-to-print rule. Use separate labels for the prepared source container and the working portion. A fresh addition should retain its own preparation time; averaging two ages does not reconstruct the rheological condition of the mixed working portion. This distinction becomes particularly useful during a long interruption or a partially completed order.

Calculate the intersection of independently observed intervals

Represent each necessary condition as a time interval only when observations support an uninterrupted interval. One interval can describe comparable viscosity results; another can describe acceptable edge definition; a third can describe deposit amount. The candidate printing period starts at the latest beginning and ends at the earliest ending. If the end precedes the beginning, there is no common period. Do not stretch an individual criterion to make the intersection appear.

For an illustrative calculation, assume viscosity observations support minutes 8 through 42 after preparation, edge definition supports minutes 12 through 36, and deposited amount supports minutes 5 through 32. The intersection is minutes 12 through 32, a duration of 20 minutes. These assumed intervals are not recommended handling times. If an observed failure splits an interval, retain two separate segments instead of connecting them across the failed period. Sampling frequency limits how precisely either boundary can be located.

t_start = max(aη, aedge, amass); t_end = min(bη, bedge, bmass); D = max(0, t_end − t_start)

  • a and b: observed beginning and ending of each candidate interval, in minutes
  • η, edge and mass: comparable viscosity, edge-definition and deposit-amount conditions
  • D: common interval duration; positive duration alone does not qualify the process

Each condition is contiguous over its stated interval; measurements represent the same preparation and print history. No interpolation through an observed failure is permitted.

Keep each boundary tied to the feature it protects

The handling record should make the reason for every boundary visible. An early exclusion caused by unstable transfer calls for a different investigation from a late exclusion caused by blocked openings. Even when both produce an unacceptable resistor width, they need not share a material mechanism. Keep the wet observation, downstream result and elapsed time linked to the same specimen. A table of times without those links becomes difficult to challenge when the screen or artwork changes.

Choose the observations before examining the trial results. Otherwise it is easy to select whichever feature happens to remain acceptable for the longest period. Include the smallest functional opening and a representative larger feature, because a deposit can lose detail before its total mass moves substantially. Also state whether a measured value is an individual print result or the mean of several prints. A satisfactory mean cannot cancel an interrupted line on one required conductor.

Evidence needed to define a candidate handling interval
Boundary contributorObservationInterpretation limit
Material conditionMatched viscosity method and sample historyDoes not predict screen transfer alone
Fine featureFinished edge and opening continuityApplies to the evaluated geometry
Deposit amountDefined wet mass or measured profileCan conceal local missing material
Downstream functionFired resistance or required interface resultIncludes drying and firing influences

Separate temperature response from loss of material control

Paste and instrument temperature should be recorded at the measurement, not inferred from the room thermostat. A sample carried from a cooler location can continue changing temperature while the spindle runs. A changing reading may then include both temperature dependence and time-dependent structure. Compare samples only after the specified thermal state has been established by the chosen method. Do not apply a generic temperature correction to a non-Newtonian paste without evidence for that formulation.

During printing, compare temperature movement with deposit behavior before assigning a cause. A viscosity change that disappears under a restored measurement condition differs from one that persists after comparable conditioning. The latter could involve solvent balance, dispersion or contamination, but viscosity alone does not identify which. Uncontrolled thinner additions remove the ability to make that distinction and may change solids loading as well as flow. Preserve the original result and obtain a material-specific disposition instead of adjusting the value until it enters the displayed range.

Use interruption signatures to decide whether the interval survives

A stable run can produce an unacceptable first print after a pause. Look separately at incomplete apertures, strings at separation, excess spread and changes in deposited amount. These signatures suggest where to inspect, but they do not prove a single cause. For example, an incomplete fine line can result from screen drying, local contamination or incomplete release. Compare the same feature before the pause, on restart and after the authorized recovery action.

Treat pause duration and cover state as explicit variables. A restart rule should identify which observations must be repeated and whether the remaining working portion can continue in the original interval. Repeated forceful printing to recover an image may change the screen or damage a deposit; it is not a substitute for an approved restart sequence. Where material is removed from the screen, segregate its history. Returning worked material to a source jar without a permitted procedure makes the original source-container interval untraceable.

Validate both ends with independent preparations

A single sequence provides candidate boundaries, not evidence that subsequent preparations will follow them. Repeat the study with independently prepared portions and retain the same screen condition, substrate state and measurement definitions. Include the start and end regions deliberately. Testing only the middle of the proposed period cannot verify the very boundaries that determine whether an operator may begin or continue printing.

Preserve prints that fall outside a criterion and evaluate downstream function before deciding whether the criterion is informative. A narrow viscosity band with no relationship to the required geometry may be unnecessarily restrictive; a wide band that admits broken features is ineffective. Changes to a criterion should follow that engineering relationship. Define how measurement uncertainty, sparse time sampling and lot variation affect the usable interval. Any additional allowance should be explicit and justified rather than concealed by rounding the beginning downward or the ending upward.

Transfer the interval only with its preparation and geometry scope

The resulting order instruction should identify the paste product, permissible storage state, preparation event, measurement fingerprint, working-portion handling and qualified print geometry. It should also name the events that require reassessment: a different package, revised screen, changed feature dimensions, altered room condition, prolonged stoppage or a different replenishment practice. Copying only the final elapsed-time range strips away the conditions that made it meaningful.

When a customer drawing changes from a broad conductor to a dense crossover region, ask whether the original controlling feature is still the most demanding one. The same material might support both tasks, but the old interval does not establish that result. Retain a compact comparison of the previous and proposed feature checks so the review can focus on the changed demand. Quotation discussion can then distinguish a known handling study from additional coupon work needed to evaluate the new pattern.

Provide the viscosity condition and critical print features

Supply the information that determines which handling intervals can be compared.

  • Named paste and supplier instruction, viscosity instrument geometry, speed, temperature and reading sequence.
  • Package state, approved mixing event, transfer method, covered intervals, screen exposure and replenishment history.
  • Artwork showing the smallest required openings, functional edge limits and deposited-amount measurement locations.
  • Time-linked trial prints, downstream electrical or interface results, planned interruptions and acceptance ownership.
