Solder Joints on Ceramic: Expansion Mismatch and Strain Relief

Define the connected structures, not just the solder alloy

List the ceramic, attached metal or board, lead geometry and any package constraints. The solder alloy is only one element in the mechanical system. A joint to a free wire can respond differently from an identical pad soldered to a rigid busbar or enclosure.

Identify which parts are free to move and which are fixed by screws, adhesive or other joints. Several attachments can create a closed mechanical constraint that is absent from a single-joint coupon. The installed load path is the relevant starting point for thermal-mismatch review.

Estimate differential expansion over the constrained length

A first estimate uses the expansion-coefficient difference, temperature excursion and distance between the relevant constraints. Longer distances produce more relative movement under the same material pair and temperature change. This explains why a large assembly can be more demanding than a small coupon.

The estimate assumes uniform temperature and linear expansion. A heater or locally soldered connection may have strong gradients, so each structure can experience a different temperature history. Keep those conditions explicit and use the simple result as a screening quantity rather than a complete fatigue-life model.

Decide where the movement will be absorbed

Possible compliance comes from lead bending, a deliberate free length, a formed interconnect or an appropriately designed joint. The objective is to accommodate movement without losing electrical contact or creating unacceptable thermal resistance. It is not to leave the connection mechanically uncontrolled.

A short rigid lead and a tall flexible lead transfer different loads to the same pad. Increasing solder volume may stiffen the connection and reduce the benefit of the lead geometry. Review the completed fillet and the external restraint together rather than assuming more solder always improves robustness.

Compare the movement predicted at the joint with a measured displacement or a documented mechanical model before choosing a modification. A compliant lead can still be ineffective if its free section is immobilized by potting or cable routing after assembly. Inspect the final packaged arrangement, including strain relief and the position where the lead first becomes constrained. For a comparison specimen, preserve that distance and restraint direction. Otherwise, a laboratory joint may survive because its lead is free to bend while the installed connection is forced to absorb the same movement through a much shorter soldered region.

Treat attachment heating as a separate stress event

During soldering, the joint region can heat much faster than the rest of the ceramic or attached structure. The local gradient and temporary restraint can produce damage before the circuit ever enters normal service. Record preheat, local heating, support and cooling as part of the attachment process.

Review the local attachment temperature history and mechanical restraint when investigating fracture. Limits measured on another component are not acceptance limits for this circuit. Final continuity alone cannot establish a harmless attachment operation; correlate the damaged region with the heating sequence, support locations and direction of the applied load.

Distinguish joint fatigue from ceramic or metallization failure

The limiting interface can change when geometry is modified. A connection that no longer separates in solder may instead lift a pad or crack the ceramic. Retain failure location with every mechanical or cycling result.

Use a thermal sequence that represents the mechanical question

Define specimen temperature excursion, dwell, transition and mounting state. The chamber program alone does not establish the temperature of a large attached metal part or the gradient through the circuit. Measure representative locations when those differences affect the strain.

Avoid using an accelerated sequence without considering whether it changes the failure mechanism. A severe thermal shock can produce fracture that is unlike gradual solder fatigue in service. The test should answer a defined qualification or diagnostic question, with the applicable system requirements controlling the final method.

Track connection behavior while preserving the original fault

Measure the electrical path at defined points before and during relevant stages of the exposure. An intermittent opening can disappear after the assembly returns to room temperature. Record event timing and temperature so the physical investigation can target the condition that produces the fault.

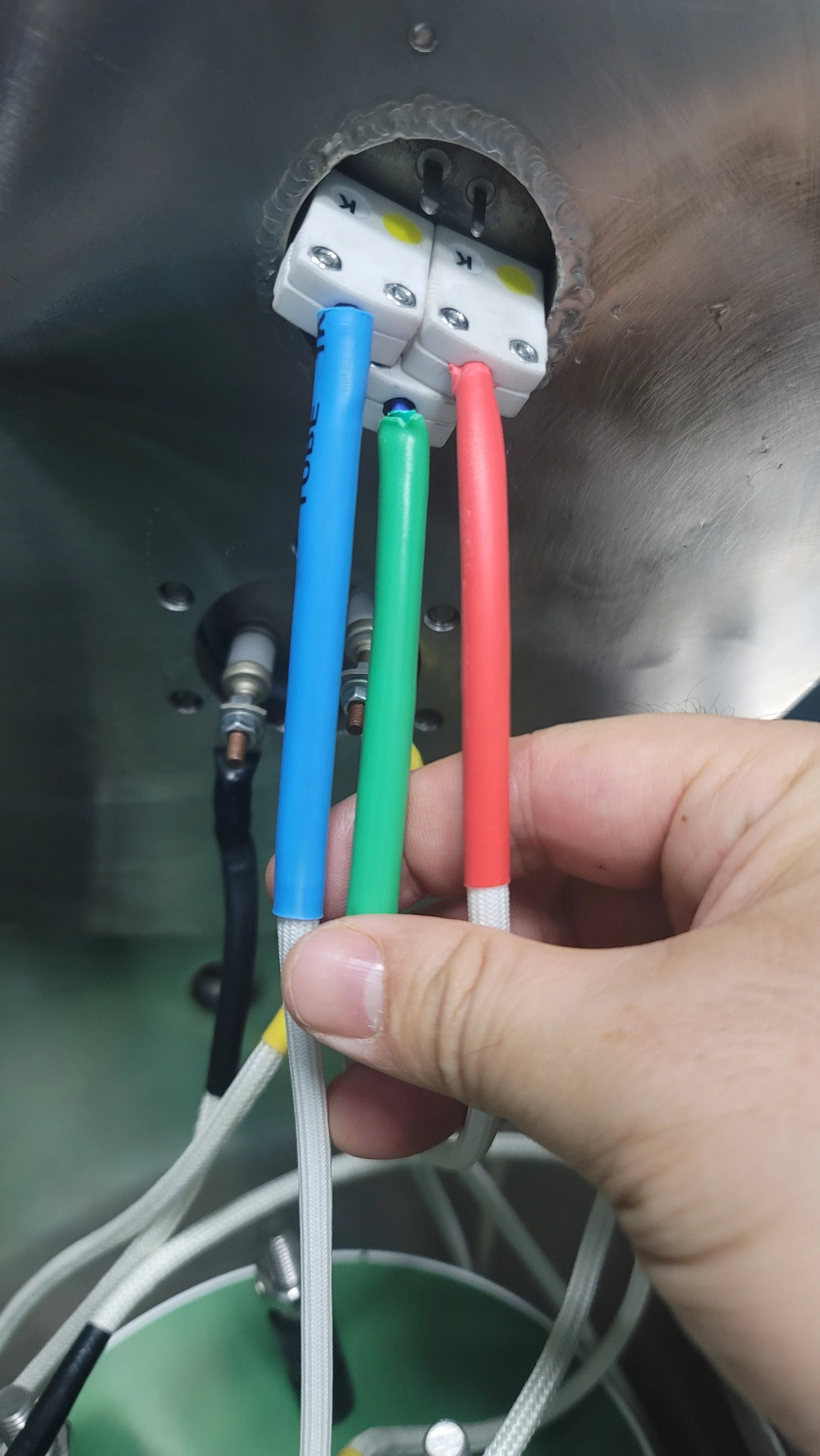

Use test current and wiring that do not significantly heat or mechanically reinforce the joint. A heavy temporary lead soldered onto the connection can change both its thermal and mechanical behavior. Keep the measurement attachment as nonintrusive as practical and document any unavoidable difference from the installed circuit.

Verify the revised load path across the whole assembly

A corrective change should address the identified mechanism: reduce constraint distance, add controlled compliance, improve support, revise local heating or alter the joint geometry. Check that the change does not compromise current carrying, heat transfer, clearance or assembly access.

The final record should include material pair, attachment geometry, support, thermal sequence and the observed failure locations. Reopen the review when the enclosure, cable restraint or mounting pattern changes. A solder-joint design remains meaningful within its documented mechanical system, not as a universal temperature-cycle capability for the ceramic material.
