Laser Thermal Platforms: Temperature Stability Is Not Alignment Stability

System boundary

A candidate auxiliary printed heater or passive network on a ceramic thermal platform, its mechanical support, the laser package or separate submount, temperature sensing and downstream optical reference. Thin-film die-attach submounts, thermoelectric cooling, laser electrical drive and optical safety remain distinct design scopes. No supplied laser module, optical rating or complete alignment performance is asserted.

Name both the thermal and optical outputs

A temperature requirement should identify its sensor or physical region and time condition. An alignment requirement should identify lateral displacement, angular direction, coupling to another component or another defined optical output. The units and reference frames differ. A sensor trace with many decimal places supplies no direct measurement of mount motion or source-to-receiver alignment.

The optical team should identify which movement matters to the intended system. A source can translate with little angular change, rotate about a mounting point or change relative to a nearby lens. Those changes need not produce the same downstream effect. Assign an observation for the relevant degree of freedom before asking the thermal platform supplier to control a broadly worded stability requirement.

Keep heater, submount and cooler functions technically distinct

A printed resistive heater converts electrical input into heat. A thermoelectric actuator can be used in a controlled heating and cooling system with a suitable heat-rejection path. Laser packages and mounts may incorporate a TEC; that architecture does not imply that a resistive ceramic heater is an equivalent replacement. If operation requires active heat removal, specify that requirement before selecting the heater construction.

The die-attach submount is another distinct interface. A thin-film metallized AlN or alumina submount may provide bonding and heat-transfer features that are not the same as an auxiliary fired thick-film heater on a separate platform. Name each component by its process and function. Do not transfer wire-bond, die-attach or optical alignment expectations between them because both use ceramic.

Draw the alignment reference as part of the assembly

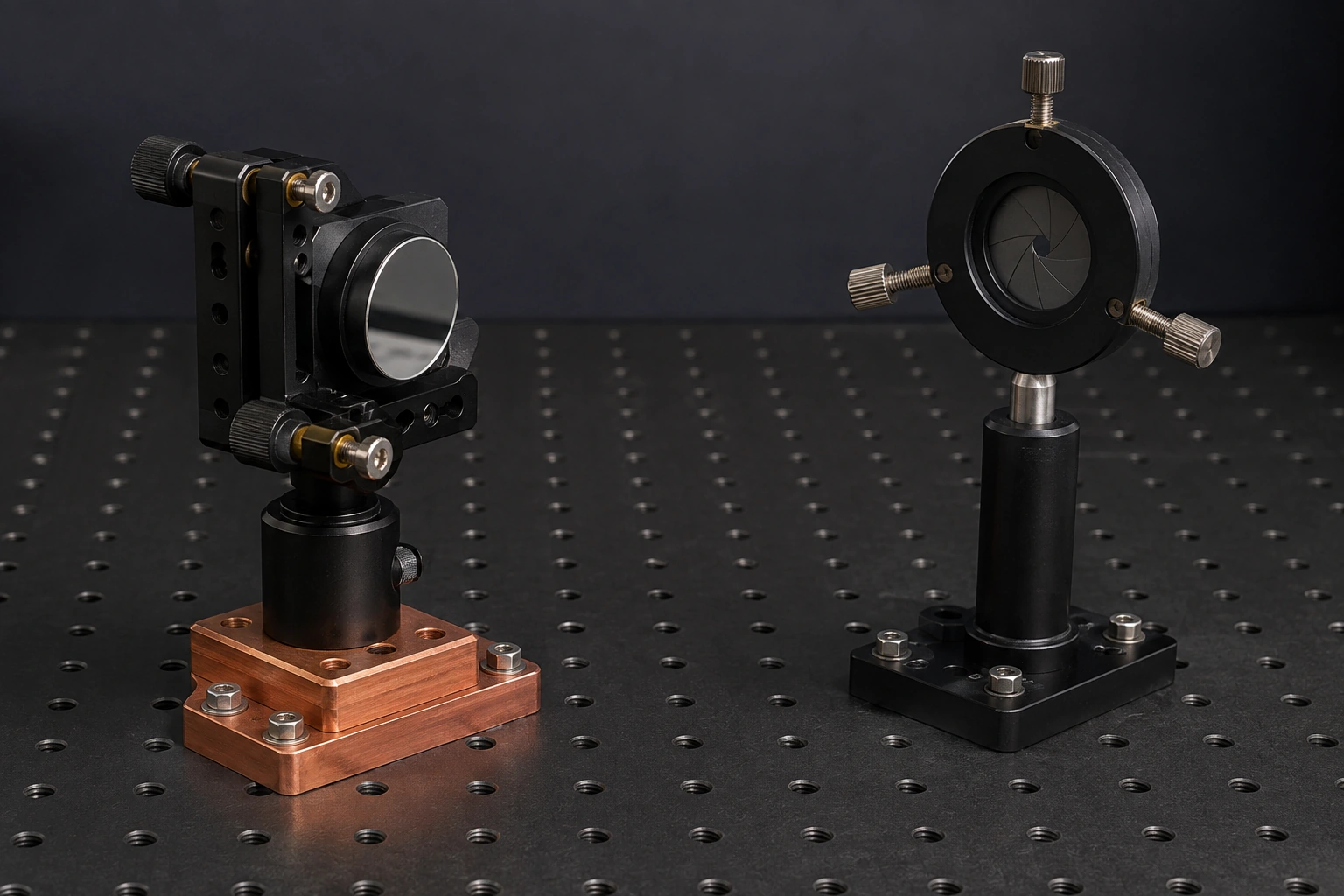

The alignment measurement compares the source or an associated feature with something else. That reference may be a detector, fiber interface, lens or mechanical metrology fixture. If both move together, a relative measurement can remain unchanged despite a shift against the equipment frame. If the reference support moves independently, it can appear that the heated platform moved when the dominant change occurred elsewhere.

Show the relevant supports and datums on one interface drawing. Identify which structures are temperature-controlled, which follow the environment and which carry cable or hose loads. The resulting map establishes what the measurement can and cannot attribute to the ceramic platform. It is more useful than assigning one generic coefficient of thermal expansion to a multi-part optical assembly.

Connect differential temperature to the constrained geometry

Equal temperature change in two supports and unequal temperature change in them are different mechanical inputs. A control sensor near one side of a platform does not prove that both sides follow it. The useful thermal observations should correspond to the locating features and heat paths that can change relative height, spacing or restraint.

For a small-angle geometric illustration, two support points separated by distance d develop a height difference Δh. The supported line's tilt is approximately Δh/d when the deformation is small and the assumed support geometry applies. This relationship identifies why differential movement matters, but it does not predict Δh from a sensor reading. Actual stiffness, interfaces and constraint determine the deformation and must be evaluated for the real mount.

Do not apply a mirror's reflected-beam angular multiplication automatically to a laser package or lens. The optical mapping from mechanical movement to system output belongs to the actual optical arrangement. Keeping that mapping explicit prevents a correct mechanical estimate from being converted into the wrong optical requirement.

Measure operating drift and return shift separately

An assembly may move during a temperature excursion and return close to its initial alignment afterward. Another may show little movement during one portion of the excursion but retain an offset after returning. These are separate results. Optical mounting evaluations distinguish thermal deflection during the excursion from residual alignment after return; good performance in one does not establish the other.

Define the starting condition, allowed excursion and return comparison through the system owner's validation plan. Preserve the time-dependent optical trace rather than comparing only its endpoints. A return measurement should use the same reference configuration and should not follow an undocumented realignment, cable adjustment or software zeroing operation that removes the change being investigated.

Interpret a stable sensor and moving alignment without guessing the cause

Several mechanisms can give the same initial symptom of a stable displayed temperature and a changing optical result. The platform may contain an unobserved gradient, the source package may move against its attachment, or the downstream reference may change. Optical output itself can change for reasons other than rigid-body motion. The investigation should preserve enough separate observations to test these alternatives.

Compare changes against thermal state, mechanical reference and actuator input instead of immediately retuning the temperature loop. Retuning can alter the thermal trajectory without addressing a shifting datum. Conversely, mechanically compensating a transient can hide a thermal-state mismatch. Assign each adjustment to a tested cause and retain the pre-adjustment record.

Control parasitic loads without over-constraining the ceramic

A power lead, temperature-sensor cable or cooling connection can transmit a mechanical load to the mount as its routing or temperature changes. Define the first support point and the intended strain-relief boundary. The heater's terminal should not become the locating feature for an optical assembly. A mechanically neat harness is not automatically a low-force harness across the operating range.

The mount must also accommodate the reviewed differential expansion without relying on ceramic bending. This requires a specific support and attachment design, not a universal instruction to tighten the package more firmly. Keep the pressure and bond construction review separate from the optical adjustment procedure. A fixture modification that improves static alignment can still change the thermal path and needs a corresponding interface check.

Validate the optical system under its approved safety arrangement

Initial mechanical and thermal characterization can use an inactive assembly or an appropriate surrogate when the measured boundary remains meaningful. Such a check does not establish laser wavelength, optical power, coupling efficiency or active-system alignment. Optical validation and any energized laser work must be performed by the qualified system owner using the applicable protective arrangement and approved procedure.

The final integration record should link platform and submount drawings, attachment, sensor placement, actuator type, heat sink, alignment reference and relevant configuration revisions. Heater component verification contributes only its agreed portion. This allows a thermal platform to be reviewed professionally while reserving optical performance, laser safety and full-module acceptance for the teams equipped and authorized to establish them.
