Thermal Shock and Moisture Testing: Keep Exposure Order in the Comparison

Measurement purpose

Resolve whether the order of two prescribed environmental exposures changes a defined circuit endpoint.

Specimens and conditions

Fresh sequence groups

Traceable allocation with relevant lot or position factors distributed across histories.

Intermediate state

Known recovery, handling and observation steps between exposures.

Equipment and records required

• Environmental exposure: Verified specimen conditions under both approved methods.
• Checkpoint observation: A consistent endpoint measured without silently changing the next-stage specimen state.

Method sequence

1. Allocate

   Assign fresh specimens to ordered histories and needed controls.

   Record: Allocation and nuisance-factor map.

2. Expose and observe

   Record baseline, intermediate and final states with sequence integrity.

   Record: History-specific raw results and interventions.

3. Compare

   Evaluate sequence groups while preserving related readings and withdrawals.

   Record: Order-specific conclusion and unresolved mechanism.

Decision and uncertainty

Support only the ordered histories and construction actually represented by the data.

Lot confounding, changing observation state and survivor exclusion can obscure the sequence effect.

Environmental validation and product engineering owners.

Traceable outputs

State why the order could change the engineering decision

Let A denote a fully specified thermal shock exposure and B a fully specified moisture exposure. The question is whether A followed by B produces a different relevant outcome from B followed by A under those prescribed conditions. This is not the same as comparing two chamber settings or asking which isolated test is more severe. The complete ordered histories are the treatments being compared.

Begin with a physical question about the actual construction: for example, whether an observed interface change after one exposure alters behavior during the next. Treat that as a hypothesis to test, not as an established failure mechanism. Keep fired glass protection, polymer coatings, terminations and assembled interfaces distinct. The comparison must identify the particular circuit region and endpoint that could affect the customer's decision.

Allocate fresh groups to both orders

Use one group for A then B and another for B then A. Add A-only, B-only and retained handling controls where needed to interpret the sequence. When lot or fabrication position is an important nuisance factor, distribute the planned histories within that factor rather than placing all of one sequence in a single lot. Randomize the allowed assignments and measurement order without randomizing away the treatment sequence itself.

A specimen that has already experienced A then B cannot subsequently become a fresh B-then-A specimen. Its history would be A-B-B-A, which answers another question. Waiting at room conditions may stabilize a reading, but it does not establish that structural, surface or chemical changes have been erased. Use a reversible crossover design only when reversibility and an adequate reset have actually been justified.

Keep each exposure and the transfer between them explicit

Define A and B using the approved method, specimen mounting, electrical state and required environmental conditions. For thermal shock, the real specimen exposure depends on more than a chamber label; retain the existing temperature and transfer verification. For moisture, distinguish the actual humidity or liquid-contact method instead of treating every wet condition as interchangeable.

The interval between A and B is also part of the sequence. State storage, drying, recovery, handling and electrical measurements during that interval. A long drying step can change the condition entering the second exposure compared with immediate transfer. If those actions are necessary, apply and document them consistently. Do not describe two sequences as matched when their intermediate preparation differs in an unrecorded way.

Observe the specimen before, between and after exposures

Record the selected endpoint at baseline, after the first exposure and after the second, using a defined observation condition. Distinguish measurements made while wet or hot from those made after recovery. The endpoint might be a circuit-level electrical quantity or a separately defined physical observation; use the same meaning throughout rather than substituting a visual pass for an electrical reading halfway through the study.

Consider whether the observation itself changes the specimen. Cleaning, repeated contact probing, disassembly or drying can modify the state intended for the next exposure. If a destructive inspection is needed after the first stage, assign separate specimens for that observation. Do not return a cross-sectioned or otherwise altered part to the sequence and count it as equivalent to an intact specimen.

Interpret a concrete sequence record without inventing a mechanism

Consider an illustrative investigation whose endpoint is change in a defined low-voltage leakage current measured after the same recovery condition. A-only and B-only groups show no resolved change relative to their controls. The A-then-B group shows a reproducible increase after its second stage, while B-then-A does not. This pattern is consistent with an order-dependent effect under the stated test, but does not identify its material mechanism by itself.

The next useful comparison preserves the histories and investigates the affected region. It is not to average all exposed specimens into one population and report a generic environmental result. If only one A-then-B specimen changed and the group came from a different lot, the interpretation is weaker: lot and sequence are confounded. The observation should trigger a discriminating follow-up, not an unsupported statement that thermal shock always creates a moisture path.

Compare complete histories, not fictitious independent steps

The second-stage observation depends on the first-stage state. Treat the two readings from one specimen as related, not as independent specimens. Compare final changes between the sequence groups using the actual allocation, replicate structure and measurement uncertainty. Retain the intermediate observations because they show whether the divergence existed before the second exposure or appeared afterward.

Do not assume that the combined change must equal the sum of A-only and B-only changes. That additive expectation is a model requiring justification, and its failure does not automatically prove a particular chemical interaction. A full statistical analysis may need lot blocks, repeated observations and unequal variation. Choose it to match the experiment rather than attaching a confidence claim to a small illustrative matrix.

Preserve failures and withdrawals in their actual sequence

If a specimen becomes unmeasurable after the first stage, retain that outcome and its last valid observation. Excluding it from the final average can make a damaging sequence appear benign because only survivors remain. Distinguish product failure, fixture damage, deliberate destructive inspection and an unrelated laboratory interruption. They do not carry the same information about the sequence.

State stop rules before testing and apply the relevant electrical, thermal and chemical safety controls. A sequence study does not authorize exceeding equipment limits or bypassing a product's protective functions. If the intended second exposure cannot safely or validly be applied to a changed specimen, record that limitation as part of the result rather than improvising a different treatment and keeping the original group label.

Deliver an order-specific conclusion and its limits

Report the complete histories, specimen allocation, baseline and checkpoint data, missing outcomes and comparison method. Identify which order was supported by the observations and which remains unresolved. Keep the claim tied to the actual construction and exposure conditions. Neither sequence automatically represents years of service or every possible ordering of field events.

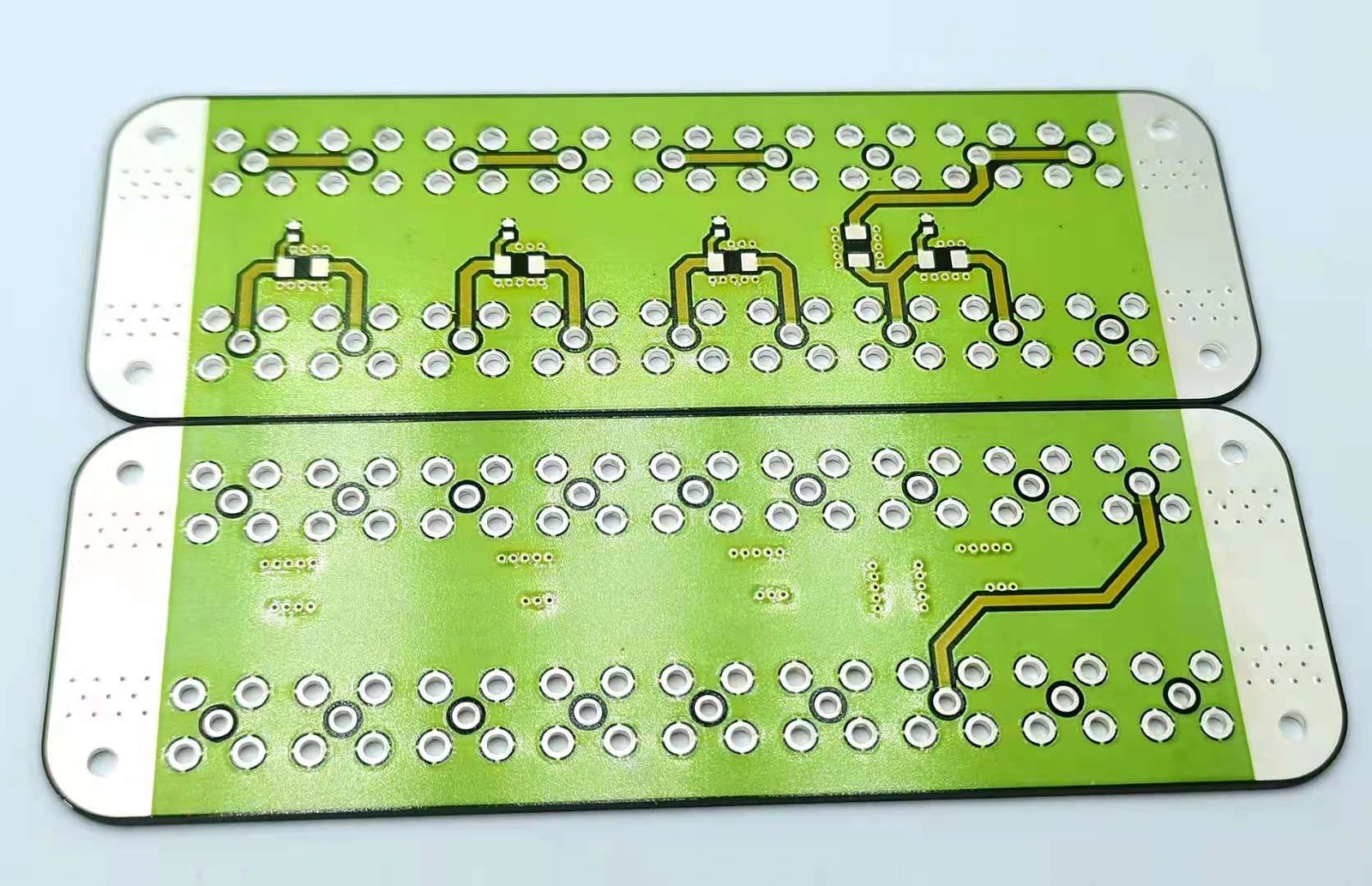

For a ceramic thick film circuit review, provide the protection stack, terminations, assembly boundary and actual service chronology that motivated the experiment. The useful customer output is an evidence-based decision about whether exposure order belongs in the validation plan and what additional observation would explain a detected difference. It does not replace separate acceptance criteria for the circuit's electrical function or the prescribed environmental methods.
