Sheet Resistance and Aspect Ratio in Printed Resistor Design

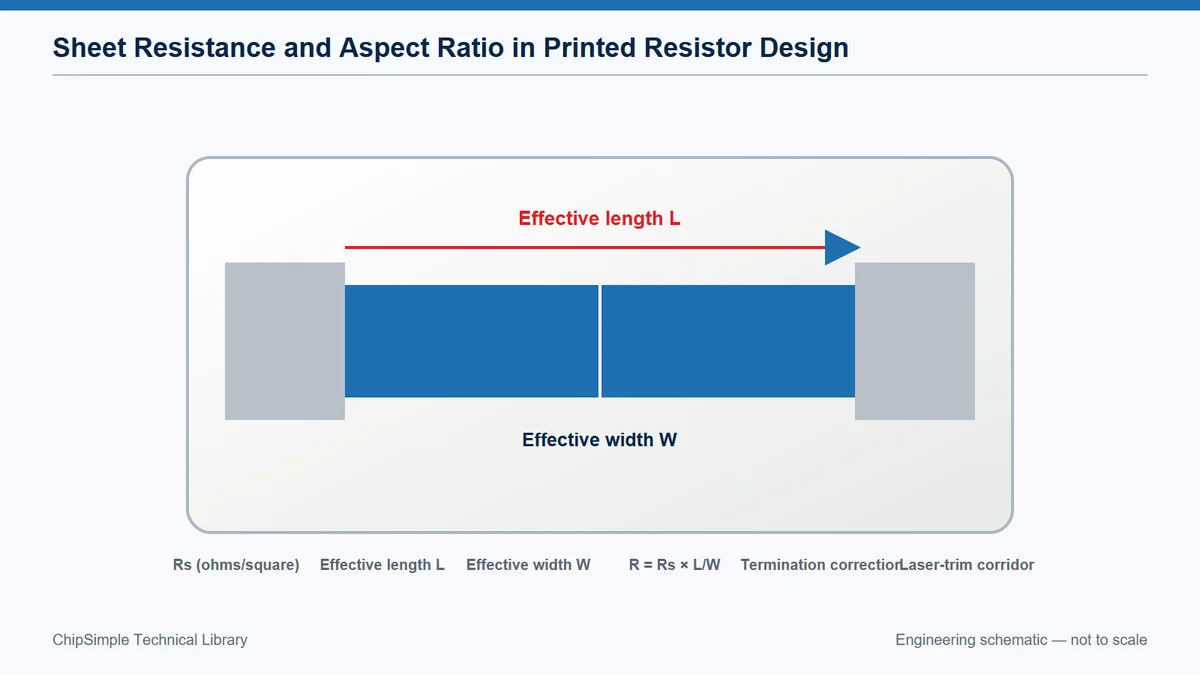

The equation R = Rs × L/W is valuable because it separates material behaviour from geometry. It is also easy to misuse. Sheet resistance is a fired-film property measured under defined conditions, not an immutable number printed on a paste label. The effective length and width are influenced by conductor overlap, edge shape and current distribution. A robust resistor therefore uses the equation as the first estimate, then reserves margin for printing and laser trimming.
Define the Effective Number of Squares
The physical starting point is straightforward: Current does not begin and end at ideal mathematical lines. From there, termination overlap, corner geometry and spreading current alter the effective resistor length, especially in short or wide elements. For printed resistor sheet resistance, the important issue is the amount of process margin left after normal variation is included.
On the drawing and in the review record, use consistent geometry rules and include manufacturer correction data when the aspect ratio is near an extreme. Keep the requirement functional wherever possible, while making any safety- or interface-critical boundary unambiguous.
A production trial should capture design coupons containing the same termination style and representative length-to-width ratios. Record the condition of the specimen and the next operation so that a later change can be traced to a specific stage.
If the team sees a systematic resistance offset that cannot be explained by paste sheet resistance alone, pause before adding inspection or rework. First check whether the layout and the qualified process window are asking for contradictory outcomes.
Select a Paste Range that Leaves Geometry Margin
In a stable manufacturing route, several resistor pastes can produce the same nominal value through different aspect ratios. This means an unsuitable range may force very narrow, very long or unusually low-aspect-ratio elements that are sensitive to printing and trimming. The observation is especially useful because it connects a visible feature to an electrical, thermal or mechanical consequence.
The control plan should choose the sheet-resistance decade that places critical resistors inside a proven geometry window. It should also name the drawing characteristic or coupon that represents the requirement, avoiding an instruction that depends on personal interpretation.
Evidence comes from as-fired distributions from coupons fired with the intended conductor and resistor sequence. A trend across position or lot is usually more valuable than a perfect reading from one hand-picked sample.
Investigate meeting one nominal value while creating weak yield across the complete resistor network. The pattern may identify a narrow process interaction long before the final circuit becomes an open, short or out-of-tolerance value.
Budget for Printing and Firing Variation
A useful way to frame the decision is this: Line width, dried thickness and peak firing conditions all influence the final resistor. As a result, small dimensional changes have a larger percentage effect on narrow elements, while firing variation can move the material response across the whole substrate. That cause-and-effect chain should remain visible when printed resistor sheet resistance is reviewed with purchasing and quality teams.
The manufacturing boundary is protected when the team can allocate tolerance between as-fired spread, trimming resolution, measurement uncertainty and post-process drift. This approach separates the customer's functional need from the supplier's machine-specific compensation.
Confirm the decision with lot statistics by resistor family and position, not only a single average resistance. Include both typical and boundary-condition specimens where the failure consequence justifies them.
The symptom trim times that rise sharply because the as-fired distribution sits too far below target deserves a structured investigation. Check material lot, artwork position, thermal history and measurement setup before assigning a single cause.
Design the Laser-Trim Region Before Layout Release
Geometry and material meet at this point: Trimming increases resistance by redirecting current through a longer or narrower path. Therefore, the cut shape, remaining neck width and local power density affect both resolution and long-term stability. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.
During release, provide unobstructed beam access, a defined trim corridor and a maximum allowed cut geometry. Make sure the acceptance method measures the same physical feature that the design calculation assumed.
Useful confirmation includes post-trim inspection, resistance drift after stabilisation and power testing at the intended load. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.
One failure signature is deep cuts, hot spots or microcracking created by using trim as a rescue for poor as-fired targeting. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.
Include TCR and Power in the Geometry Review
Process capability follows from the mechanism: Two resistors with the same room-temperature value can behave differently under load. The direct implication is that TCR, self-heating, substrate temperature gradient and resistor area determine the operating resistance and local stress. This makes the topic a design input, not merely a factory setting adjusted after the drawing is complete.
A practical release action is to state power, duty cycle, ambient range and whether ratio tracking or absolute value is critical. The requirement should survive staff changes and future lot reviews because it is recorded with the controlled construction.
Use resistance-temperature measurements and powered temperature mapping on the actual substrate layout to demonstrate margin. When feasible, compare the result before and after the operation most likely to disturb it.
Pay attention to a network that passes room-temperature inspection but shifts ratio or overheats in service. A corrective action is credible only when it changes that physical mechanism and the follow-up data confirm the change.
A Worked Engineering Review
Suppose a 10 kΩ resistor is planned with a 10 kΩ-per-square paste. The first estimate is one square, but a one-square element may be too short for accurate termination correction and may offer little trim length. A designer could choose a different paste range or reshape the resistor to obtain a more controllable aspect ratio. The next step is to position the as-fired target below final value because laser trimming raises resistance. That target must include the measured production distribution, not a convenient fixed percentage. Finally, check the loaded power density and the proximity of heat-producing components before accepting the geometry.
Design Review Checklist
- Calculate nominal squares using effective, not only drawn, geometry.
- Match paste decade to a proven aspect-ratio window.
- Define as-fired target and trim direction.
- Reserve beam access and inspectable trim geometry.
- Specify power, TCR, ratio tracking and post-trim stabilisation.
Questions Engineers Commonly Ask
What does ohms per square mean?
It is the resistance of a fired film whose effective length equals its effective width, measured at a defined thickness and processing condition. The square can be physically large or small, but practical edge and termination effects remain.
Why are printed resistors usually targeted below final value?
Laser trimming removes or isolates material and lengthens the current path, so resistance normally increases. The as-fired target must leave enough upward trim range without forcing unstable cut geometry.
Can one resistor paste cover every value on a circuit?
Sometimes, but not always efficiently. A very wide value range can create poor aspect ratios and inconsistent sensitivity. Multiple compatible paste decades may produce a more robust layout.
Related Engineering Resources
Closing Note
The number-of-squares equation is the start of the design conversation. Production-ready resistor geometry adds termination correction, process capability, trim strategy, thermal loading and a measurement plan.
