How to Select a Ceramic Substrate for a Thick Film Circuit

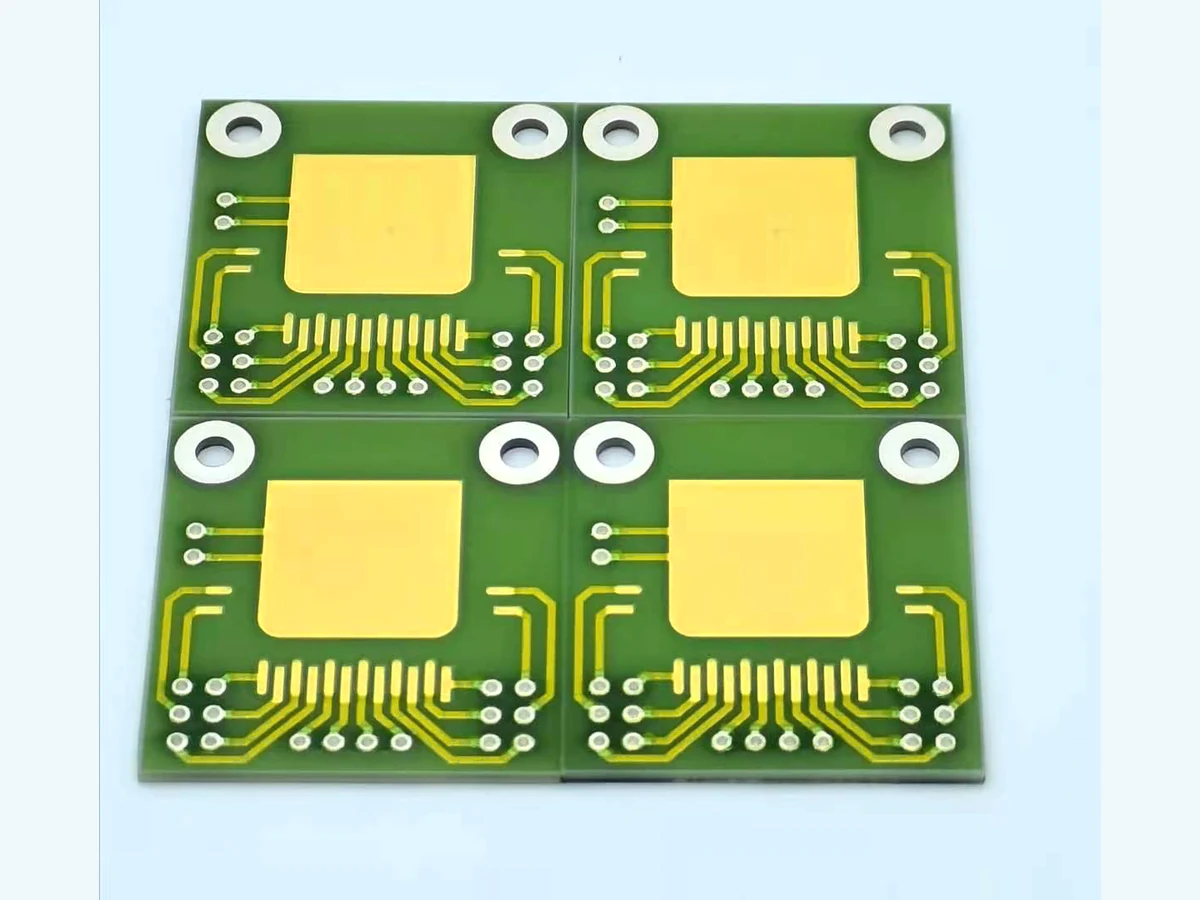

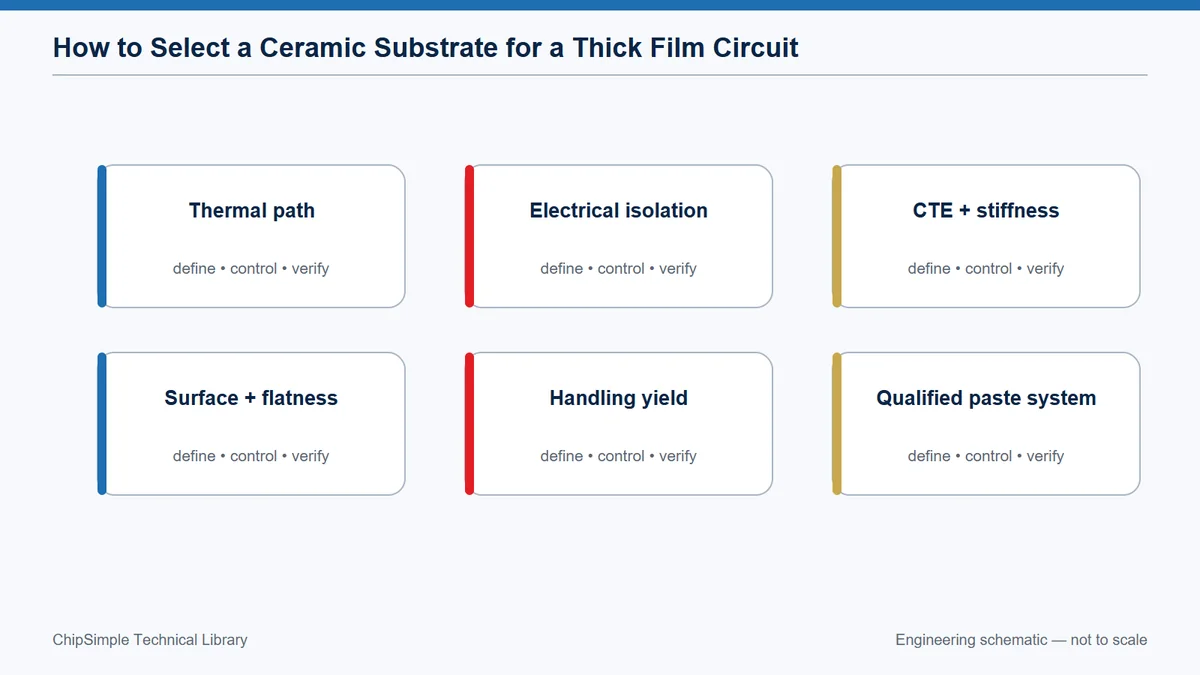

Alumina is the common starting point for thick-film circuits because it combines electrical insulation, dimensional stability, mature paste systems and manageable cost. Aluminium nitride becomes attractive when heat removal dominates, but its processing, metallisation and handling route must be qualified as a system. Other ceramics may solve specialised mechanical or dielectric problems. A meaningful comparison therefore begins with the heat, voltage, geometry and joining requirements of the finished assembly.

Translate the Thermal Load into a Substrate Requirement

Thermal conductivity matters only within the complete heat path. Consequently, a high-conductivity ceramic cannot compensate for a small contact area, thick interface layer or poorly coupled heat sink. The engineering value comes from understanding the direction and sensitivity of the effect, not from memorising a nominal number.

A robust drawing or process plan will define heat sources, allowable component temperature, contact footprint, cooling boundary and transient duty. This makes the design intent visible and gives the supplier room to use a qualified material set without changing the function.

The result can be checked through a thermal-resistance calculation followed by temperature mapping on a representative assembly. Where possible, keep readings before and after the next thermal or mechanical operation; the delta often reveals more than the final value.

The failure pattern to investigate is specifying premium ceramic while the dominant temperature rise occurs at the interface or heat sink. Before changing materials, confirm orientation, lot history, measurement method and acceptance limits.

Check Electrical Insulation in the Real Geometry

The physical starting point is straightforward: Bulk dielectric strength is not the same as withstand capability of the printed circuit. From there, surface spacing, contamination, conductor edge shape, dielectric overlaps and humidity can control breakdown before the ceramic body. For ceramic substrate for thick film circuit, the important issue is the amount of process margin left after normal variation is included.

On the drawing and in the review record, mark working voltage, transient voltage, creepage path and the regions requiring printed dielectric or protective coating. Keep the requirement functional wherever possible, while making any safety- or interface-critical boundary unambiguous.

A production trial should capture withstand and insulation-resistance testing using the agreed environment and ramp procedure. Record the condition of the specimen and the next operation so that a later change can be traced to a specific stage.

If the team sees relying on a catalogue dielectric number while leaving a short contaminated surface path, pause before adding inspection or rework. First check whether the layout and the qualified process window are asking for contradictory outcomes.

Include CTE and Mechanical Boundary Conditions

In a stable manufacturing route, ceramic, printed films, attachments and housing expand at different rates. This means large soldered areas, rigid terminals and repeated thermal cycles can transfer stress into pads or the substrate. The observation is especially useful because it connects a visible feature to an electrical, thermal or mechanical consequence.

The control plan should state mounting points, clamp loads, adhesive areas and the temperature cycle expected in service. It should also name the drawing characteristic or coupon that represents the requirement, avoiding an instruction that depends on personal interpretation.

Evidence comes from flatness and crack inspection before and after assembly-level thermal cycling. A trend across position or lot is usually more valuable than a perfect reading from one hand-picked sample.

Investigate edge cracking, pad lift or intermittent resistance that appears only after the ceramic is constrained. The pattern may identify a narrow process interaction long before the final circuit becomes an open, short or out-of-tolerance value.

Treat Surface Condition as a Printing Parameter

A useful way to frame the decision is this: Surface roughness, porosity, cleanliness and flatness influence printed-film definition and adhesion. As a result, the same paste can produce different edge quality, fired thickness and bond behaviour on different substrate finishes. That cause-and-effect chain should remain visible when ceramic substrate for thick film circuit is reviewed with purchasing and quality teams.

The manufacturing boundary is protected when the team can qualify substrate grade, supplier, finish and cleaning route rather than using only a generic material callout. This approach separates the customer's functional need from the supplier's machine-specific compensation.

Confirm the decision with incoming dimensional data, surface inspection and print coupons from the selected lot. Include both typical and boundary-condition specimens where the failure consequence justifies them.

The symptom changing substrate source after qualification and attributing the resulting print variation to the paste deserves a structured investigation. Check material lot, artwork position, thermal history and measurement setup before assigning a single cause.

Choose Thickness and Format with Handling in Mind

Geometry and material meet at this point: Substrate thickness changes stiffness, heat spreading, weight and breakage risk. Therefore, a thinner ceramic may improve thermal path length but demand better support during printing, firing, singulation and assembly. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.

During release, review panel format, edge allowance, holes, slots, handling fixtures and final mounting before fixing thickness. Make sure the acceptance method measures the same physical feature that the design calculation assumed.

Useful confirmation includes process trials that include printing, firing, separation and the intended assembly operation. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.

One failure signature is a mechanically elegant finished part that has an impractical production yield. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.

A Worked Engineering Review

A compact power sensor may initially point toward aluminium nitride because the active device creates a concentrated heat load. The review should first calculate the ceramic contribution to junction-to-ambient resistance, then compare it with the die attach, solder layer, housing contact and cooling surface. If the interface dominates, improving that interface may deliver more value than changing ceramic. Conversely, when heat must spread laterally before reaching the housing, substrate conductivity and thickness become more influential. The same review also checks whether the chosen conductor and resistor pastes are qualified for the substrate and whether the assembly CTE mismatch remains acceptable.

Design Review Checklist

• Provide power map, duty cycle and maximum temperature.
• Define working voltage, transients, creepage and clearance.
• State thickness, flatness, hole and edge requirements.
• Identify mounting, clamp and joining constraints.
• Freeze substrate grade and approved source for qualification.

Questions Engineers Commonly Ask

Is AlN always better than alumina for power circuits?

No. AlN offers higher thermal conductivity, but the benefit depends on the rest of the heat path, cost target, paste compatibility and assembly. Alumina remains appropriate when its thermal contribution is not the limiting resistance.

Does higher alumina purity automatically improve the circuit?

Purity influences properties, but surface finish, dimensional quality, supplier consistency and the qualified metallisation system are equally important. Use a grade definition tied to measured requirements.

How should substrate thickness be selected?

Balance heat-path length, lateral spreading, stiffness, dielectric requirement, handling yield and mounting. A simple thinner-is-better rule can create breakage or flatness problems.

Related Engineering Resources

• Alumina Thick Film PCB
• AlN Thick Film PCB
• Thick Film Ceramic Circuits

Closing Note

Substrate selection is complete only when the ceramic is connected to a qualified film system, assembly route and test plan. Record those interfaces in the drawing package so that a future material substitution cannot silently change the product.
