A ground symbol does not make every printed point equipotential. Load current returning through a conductor, via, bond or connector creates a voltage that can be added to a resistor measurement or control return. A broad metal region may reduce some impedance while coupling currents at the wrong connection point. This guide selects placement around sensitive resistor nodes. The broader ground-return design owner governs complete circuit partitioning; here the question is narrower: which return current is allowed to share each physical segment beside a defined resistor function.
Key design decisions
- Trace every current loop in physical conductors rather than relying on schematic ground names.
- Protect the force and sense return points of each sensitive resistor function.
- Estimate shared-segment error across frequency and operating states.
- Validate with current injection and sense measurements that discriminate supply, load and measurement paths.
1. Define what makes the resistor node sensitive
Identify whether the printed resistor establishes gain, current sense, bias, division ratio, temperature feedback, calibration or another function. State the allowable error at that function in volts, resistance, ratio or system output. A node at low nominal voltage is not automatically sensitive, and a high-value resistor does not automatically require a plane. The relevant question is how unwanted return-path voltage propagates into the end measurement.
Mark force terminals, sense points, trim region, contacts, connectors and any guard or shield connection. Record measurement bandwidth and the operating states that change nearby current: heater switching, relay or motor actuation, digital edges, startup and fault currents. A DC continuity map cannot describe inductive voltage during a fast edge. Conversely, a high-frequency concern should not be used to justify an unneeded metal area without a defined loop and coupling mechanism.
2. Draw the outward and return current together
For each supply and load, trace current from the supply through the load and back using actual printed conductors, vias, bonds, leads and connector pins. Mark the area enclosed by the loop and the segments shared with the resistor's measurement return. Currents choose impedance, not schematic color. A conductor labelled ground can carry several superimposed currents whose magnitude and spectrum differ by operating state.

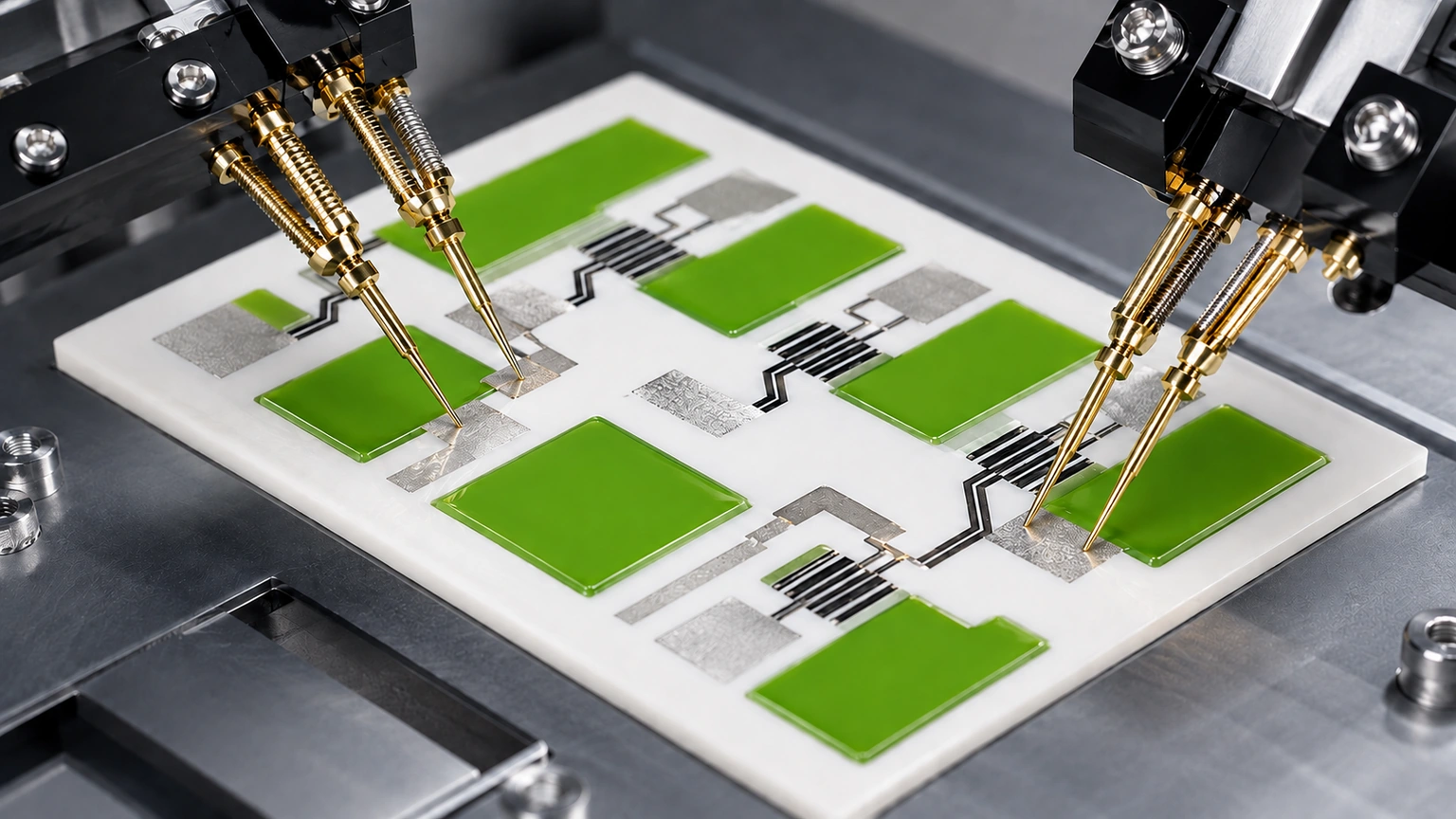

Repeat the trace for the sensing circuit. Instrument input current may be small, but the sense return can still be displaced if it joins the load return after a resistive or inductive segment. Identify whether remote sense, Kelvin separation or a star junction is physically possible. Keep this page distinct from a generic four-wire measurement guide: the objective is to place the shared junction and neighboring return geometry, not to define the complete metrology method.
4. Place the sensing junction before current becomes shared
Choose the point where measurement return and load return meet. For a low-side sensing function, join the sense lead to the resistor terminal at a point that excludes connector, trace and load-current voltage where the topology permits. Route the sense conductor so it does not rejoin the noisy return farther away. A schematic star is only effective when the physical junction, conductor widths and current directions follow the intended separation.
A plane can be divided unintentionally by openings, components, printed resistor keepouts or transitions. Current then crowds around a neck and creates a local gradient. Conversely, an undivided plane can let high current flow directly beneath or alongside a sensitive node. Use the complete fired geometry and face transitions. If the return is on the opposite face, include transition impedance and the coupling created by the loop between faces.
5. Review thermal and electrical neighbors together
Printed return metal changes more than electrical resistance. A broad conductor can alter heat spreading near a resistor, affect local firing interactions through the stack, restrict trimming access or change the usable glaze opening. Keep the resistor's geometry, terminations and thermal environment visible while adjusting the return. Do not place an uncontrolled metal boundary close to a high-impedance node merely to make the current path look symmetrical.
Separate intentional shielding or guarding from load return. A guard must be driven or referenced according to the measurement design and must not become another current-carrying path by accidental connection. A shield connection at both ends can create a loop through the assembly. Record which net owns every metal region, where it connects and which currents it is permitted to carry. Unnamed copper-pour habits from FR4 layout do not transfer directly to fired thick-film ceramic artwork.
6. Build a current-by-segment ownership table
Divide the physical return into segments between connectors, junctions, vias and component terminals. For every operating state, list the expected current contributors and the sensitive return points that touch each segment. This makes shared impedance visible before artwork is frozen. Keep maximum, typical and test currents separate and state which values are supplied requirements versus assumptions for prototype planning.
The table should also identify how a segment will be measured. A resistance number calculated from nominal geometry may omit transitions or contacts. If the segment is inaccessible after assembly, add a temporary coupon or probe point that represents it without changing the current route. Avoid permanent test pads that create a stub or contamination site unless their functional effect is reviewed.
| Segment | Permitted current | Sensitive connection | Primary risk | Verification |
|---|---|---|---|---|
| Resistor force return | Measured load or excitation current | Kelvin sense kept separate | Terminal voltage included twice | Four-wire node check |
| Power-load return | Switching or steady load current | No precision return point | Shared-impedance coupling | Current injection |
| Common junction | Sum of defined branches | Sense return joins at named point | Junction moved in artwork | Coordinate and continuity review |
| Face transition | Currents explicitly allocated | Sense only if characterized | Interface resistance/inductance | Local voltage measurement |
| Connector return | Harness and external load current | System return defined by interface drawing | Pin/contact variation | Mated assembly test |
7. Validate with controlled current injection and interpret signatures
Hold the resistor excitation and measurement configuration constant, then apply a controlled change in the suspected neighboring load current. Measure the sensitive output and voltages across named return segments simultaneously where possible. Repeat with the load connected at an alternative controlled junction or with a representative isolated path. The purpose is to show whether the error follows shared current, not merely whether noise appears during operation.
An output shift proportional to injected DC current implicates resistive sharing or contact resistance in the traced path. A narrow transient at switching edges suggests inductive or capacitive coupling that requires bandwidth-aware measurement. Error that remains after the neighboring load is disconnected may belong to excitation, instrument zero, thermal change or the resistor itself. If reversing current reverses the error sign, preserve that evidence; if it does not, do not force a shared-resistance explanation.
8. Release the return map with testable ownership
The release record should include the physical current-loop map, current-by-state table, named common junctions, force and sense points, relevant impedance measurements, sensitive-output budget and current-injection evidence. Changes to connector pinout, load current, switching rate, conductor system, transitions, resistor placement, trim access or assembly zero point reopen the related analysis. A plane shape cannot be approved independently from the nets and connection points it serves.
For quotation, supply schematic and artwork together, identifying sensitive functions rather than only net names. Include current magnitude and waveform, signal span, permitted coupling, external harness or housing connections, test access and validation ownership. This allows the manufacturing review to preserve the intended junctions and propose inspection without promising a general noise or accuracy level that has not been demonstrated in the final system.
Send the resistor-node return-path package
Provide the real current loops and sensitive measurement boundaries needed to review physical return placement.
- Schematic and artwork with force, sense and common-junction annotations
- Load currents by operating state, switching waveform and fault behavior
- Sensitive resistor function, signal span, bandwidth and permitted error
- Conductor, via, bond, connector and external return interfaces
- Trim, probe, glaze, component and thermal keepouts
- Prototype injection test, measurement method and acceptance owner
