Restraint and Break Order in a Partially Separated Ceramic Panel

1. Draw the intact ligament and scribe network

Map every scribe, uncut ligament, narrow neck, hole and functional feature on the intact panel. Distinguish intended fracture lines from cosmetic marks and identify which regions remain mechanically connected after each operation. A rectangular outside outline can hide an internal branch that redistributes load. Use actual panel dimensions and scribe observations, not only nominal artwork. Record first-side and second-side orientation so fragile films are not placed against supports during the break.

2. Enumerate topology after every planned break

Write the sequence as intermediate topology states: intact panel, first strip removed, remaining frame, individual units and any temporary tabs. For each state, show free edges and retained ligaments. A fixture suitable for state zero may become unsupported or overconstrained at state two. Review access for the operator or mechanism without requiring contact over circuits. If sequence can vary, either validate each allowed branch or lock one sequence in the traveler; “break as convenient” is not controlled.

3. Place reactions beneath material that remains connected

Place support reactions under connected ceramic and close to the intended fracture while preserving feature keep-outs. After a strip is removed, a former support may sit beneath empty space and transfer force through one corner. Verify contact with the real intermediate panel, including bow and debris. Three-point support may avoid overconstraint, but geometry decides whether it creates a long unsupported span. Do not compensate for a misplaced reaction by applying more force.

4. Limit eccentric loading on narrow residual necks

Use M=F e as a comparative eccentricity check. A 12 N force acting 8 mm from the intended support line produces 96 N·mm moment. This is not a ceramic strength calculation because fracture toughness, scribe depth, defects and dynamic loading are omitted. Reduce offset and required force where practical, then confirm with witnessed breaks. Compare moments only when force definition and topology are consistent; a different ligament network invalidates the simple ranking.

5. Capture newly released pieces without impact

A newly free strip can rebound, rotate or collide with adjacent parts. Provide capture that does not clamp functional surfaces or introduce a second uncontrolled fracture. Account for sharp ceramic edges and operator safety. Record where fragments can fall and prevent debris from contaminating printed faces. Capture foam, tape or vacuum methods require compatibility review and must not be assumed harmless. Photograph the released motion during trials only when safe and useful.

Scribe condition must be recorded before the break. Measure or classify visible continuity, intersections and interruptions using the approved inspection method. A discontinuous scribe can redirect fracture, while excessive local damage can create chips. Do not infer depth from surface darkness; use a suitable measured witness if depth controls the investigation.

6. Preserve face orientation and piece genealogy

Maintain piece identity and face orientation as the panel separates. Map unit positions before breaking and transfer identifiers to trays without relying on memory. If fragments or chips are retained for failure analysis, bag them with the parent position. A quantity reconciliation should distinguish good units, held units, broken witnesses and loose fragments. Mixing released units from different panels destroys the ability to relate edge damage to break order, support location or scribe condition.

Force application rate and tool contact shape affect fracture. Record whether load is manual, levered or machine-applied and where the contact line sits relative to the scribe. A nominal force without rate or position is incomplete. Use guards and safe handling appropriate to sharp ceramic; content calculations never replace an operating safety procedure.

7. Stop and remap after an unplanned crack

Stop when a crack bypasses the intended scribe, a new chip enters a functional keep-out or required force changes unexpectedly. Preserve the intermediate state; continuing the sequence can erase the fracture origin. Remap remaining connectivity and support reactions before resuming. Inspect the origin and compare with an unbroken witness. Do not polish, clean or re-break the area before baseline documentation. One abnormal panel does not justify changing all product limits without genealogy and repeated evidence.

Inspect finished edges against the actual functional setback, not an ideal straight boundary. Map chips by length, depth and feature proximity with a consistent rule. A chip outside the functional keep-out may still inform process monitoring, while one entering a conductor or dielectric region requires drawing-owner disposition. Preserve edge images before cleaning.

8. Release sequence-specific fixtures and inspection

Release documentation includes panel drawing, scribe and ligament map, allowed sequence, fixture at each topology state, applied force method, capture, part-transfer plan, inspection points and stop criteria. The conclusion is sequence- and geometry-specific. It does not claim a ceramic breaking strength, edge quality rate, yield or universal singulation clearance. Any panelization, scribe, substrate thickness, printed keep-out or fixture revision requires a new intermediate-state review.

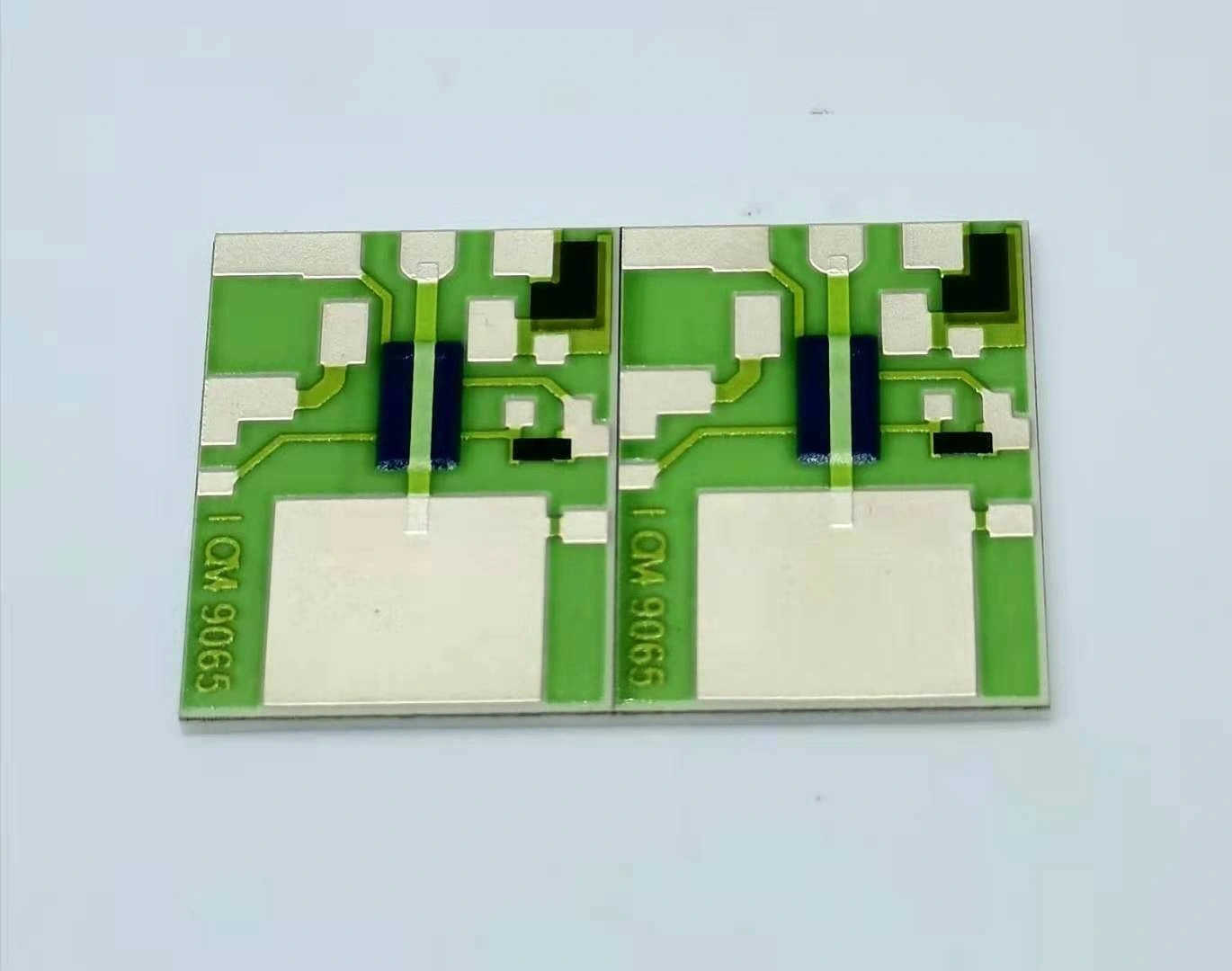

When multiple units remain joined after an abnormal break, do not improvise a second force path. Return to the topology map, identify new free edges and decide whether safe recovery is possible. The recovered pieces remain in a separate genealogy because extra handling and stress make them different from units released by the approved sequence.

Use retained intact panels to compare fracture paths after any sequence change. Units already partially separated cannot provide an independent test of a new first break because their load history is different. Balance panel position and substrate lot across old and proposed sequences. Report each panel as an event, with chips nested under unit locations. This avoids claiming statistical confidence from many edges created by one abnormal break. Final approval still depends on the functional edge clearance, not on the average appearance of remote edges.

Inspection should include the support-contact surface as well as the fracture edge. Marks on printed features may reveal that the panel shifted or rocked before breaking. Link those marks to the topology state and fixture revision, and do not clean them away before the containment decision is recorded.
