Miniature ceramic circuits often remain safest while supported as a panel. Risk changes when the printed panel is peeled, lifted, rotated, cleaned, separated and placed into individual pockets. A process that protects broad areas can concentrate force at a small tab, corner or printed feature. This review maps each transfer, estimates support and pickup loads, and uses location-specific inspection to determine where damage first appears.
Key design decisions
- Define permitted contact zones for every panel and individual-part transfer.
- Separate release force, pickup force and singulation load rather than calling all defects handling damage.
- Inspect and electrically compare the same coordinates before and after each transition.
Divide handling into observable states
Record the panel after printing, drying, firing, fixture release, interim storage, singulation, cleaning and pocket loading. Include which layers are present and whether the ceramic is hot, supported or restrained. The same contact may be safe on bare ceramic and unacceptable after a resistor, pad or glass overglaze occupies that region.
Assign a unique orientation and datum to the panel. Small repeated units can be reversed or rotated without obvious visual clues. Keep row, column and transfer direction so chips, scratches or electrical shifts can be correlated with a fixture corner, pickup head or separation order.
Create no-touch and controlled-contact regions

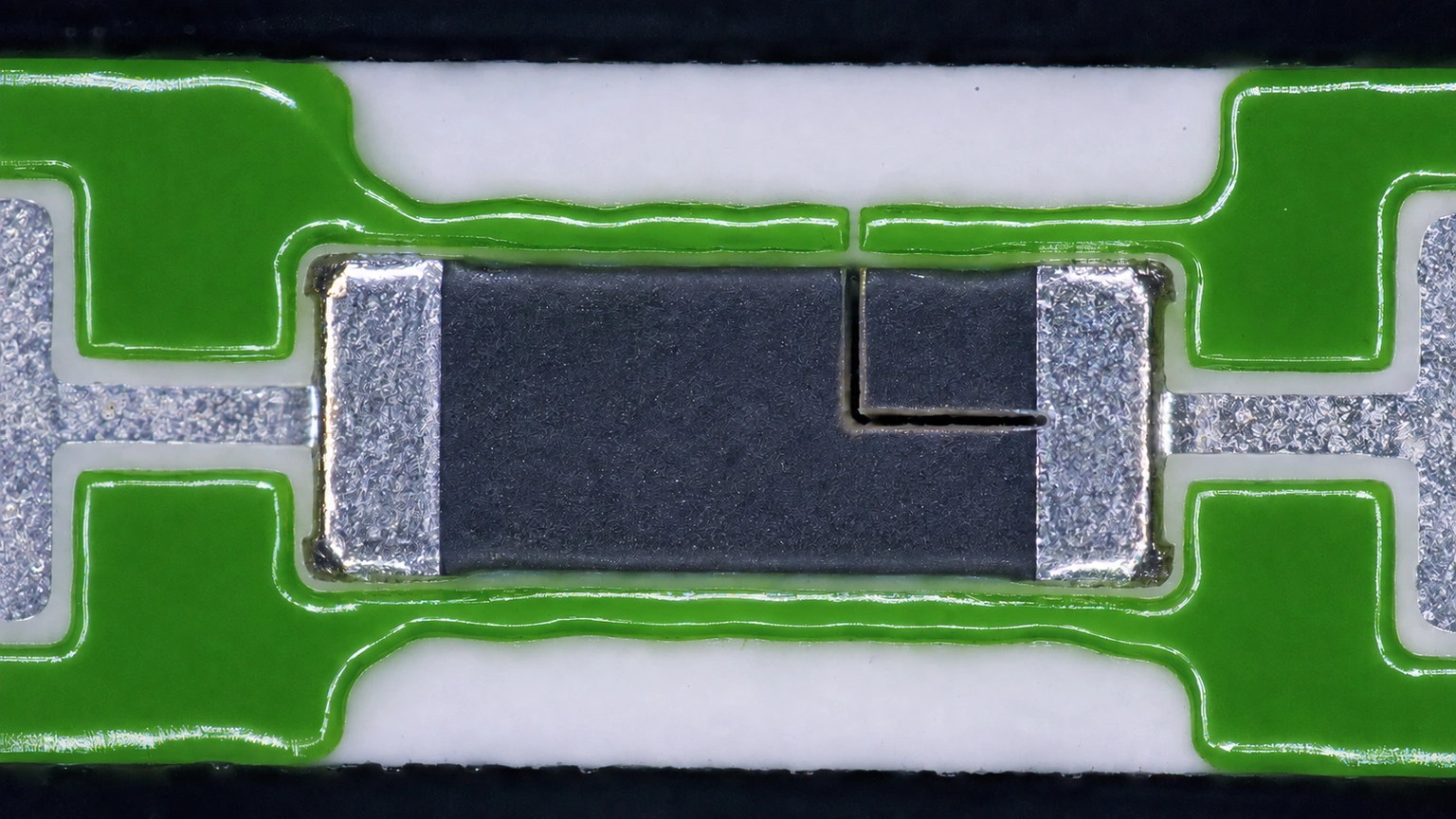

Overlay vacuum ports, ejectors, fingers, rails, trays, tweezers and package pockets on the finished artwork. Exclude active resistor tracks, bond and solder pads, trim kerfs, thin glass boundaries and unsupported corners unless contact has been specifically validated. Contact with a robust-looking conductor can still leave probe-like marks or contamination that affects later joining.
For each allowed zone, state contact face, area, surface material, maximum permitted displacement and the evidence required after transfer. Avoid describing contact only as gentle. A repeatable force path and clean tool condition are more useful than an adjective. Include what happens if one vacuum port is blocked or a part is not seated fully.
Screen pickup pressure and bending moment
A vacuum pickup produces force from pressure difference times effective sealed area. That force is reacted by nearby support and by the ceramic between them. If the pickup is offset from the supported region, force times offset creates a bending moment. Leakage and compliant cups complicate the true load, so the calculation is a conservative setup screen rather than a force certification.
Assume an effective pressure difference of 30 kilopascals over 6 square millimeters. The nominal force is 0.18 newton. If its line of action is 4 millimeters from the nearest support, the simple moment is 0.72 newton-millimeter. Moving support to 1 millimeter reduces that moment to 0.18 newton-millimeter without changing pickup force. These assumed values do not establish safe limits for any ceramic.
Fpickup = Δp Aeff; Mscreen = Fpickup e
- Δp is effective pressure difference and Aeff is sealed pickup area.
- e is offset from the selected support reference.
- Mscreen is a preliminary bending-moment indicator.
Quasi-static rigid pickup with known effective area. Local contact stress, plate bending, dynamic acceleration and material flaws require representative evaluation.
Release the panel without peeling from one fragile edge
Fixture release can require overcoming adhesion, vacuum or mechanical location. Lifting one corner first can turn a distributed restraint into a peel front and concentrate bending at the first free row. Define venting, ejector order and lift points. Observe whether the panel remains planar or snaps free, and retain the release direction in the record.
Compare a supported vertical lift with an edge-peel condition while holding the panel and fixture state constant. Measure force versus displacement when practical, but inspect the actual part because a smooth force trace does not rule out a small chip or film mark. Keep fixture contamination and trapped particles visible as possible causes of nonuniform release.
Coordinate separation order with remaining support
Each removed unit changes the stiffness and load path of the remaining panel. A break sequence that is stable for the first row may leave the last unit attached by one narrow ligament. Map the sequence and provide support beneath the active fracture or cut region without clamping finished films. General edge setbacks remain owned by the singulation design; this page follows the changing transfer state.
After separation, define how the individual part leaves the support and enters a tray. Dropping a tiny ceramic a short distance onto a hard pocket can produce edge damage, while excessive pocket clearance permits later collisions. Record pocket material, orientation, stacking prohibition and whether a cover contacts any printed surface.
Use staged inspection to locate when damage occurred
Photograph representative high-risk coordinates before fixture release, after release, after singulation and after tray loading. Use consistent lighting and magnification. Inspect both faces and edges where handling can transfer particles or load. Keep parts linked to panel coordinates; sorting them into a common tray before diagnosis destroys useful evidence.
Add electrical checks selected for the local feature: continuity across a narrow conductor, resistance around a trim region, or insulation near an affected glass boundary. A final open circuit does not identify the handling stage. Staged checks and retained controls can distinguish a release crack from separation damage or a later tray collision.
Read the spatial failure signature
Damage concentrated at one panel corner suggests lift initiation or locator interference. Repeated marks at the pitch of vacuum ports implicate pickup or fixture contact. Chips appearing only on the final separated row point toward changing panel support. Scratches aligned with tray insertion suggest transfer contact rather than singulation. Use these patterns as hypotheses, then verify them with controlled repeats.
Fracture markings can help locate origin and loading, but preserve the broken pieces and avoid rubbing surfaces together. Do not call every crack thermal because it appears after firing; a latent flaw may extend during later bending. Conversely, a handling event can reveal an earlier process defect without being its original cause.
| Pattern | Likely transition | Focused comparison |
|---|---|---|
| Corner damage after release | Peel or locator load | Supported lift versus edge-first lift |
| Marks match pickup pitch | Vacuum/contact tool | Port map and blocked-port trial |
| Last row chips more often | Changing singulation support | Reverse sequence with equivalent support |
| Linear face scratch | Rail or tray transfer | Contact overlay and clean-tool inspection |
| Electrical shift without visible chip | Printed-feature contact or microcrack | Staged electrical test and local microscopy |
Release a handling plan tied to panel coordinates
The traveler should define panel orientation, permitted contacts, fixture release, pickup settings, support locations, separation order, transfer tools, tray state and inspection gates. Retain force or pressure records only with their setup and uncertainty. A nominal vacuum setting is not the force on a leaking or partially sealed miniature part.
Reopen the review when unit size, panel ligament, layer state, fixture, pickup, sequence, tray or packaging changes. The deliverable is a controlled transition map showing where the ceramic is supported and how damage is detected at its first appearance—not a universal minimum feature size or an unsupported claim of damage-free handling.
Send the miniature panel and handling sequence
Provide panel geometry, contact maps and staged observations so release, pickup and singulation damage can be separated.
- Panel and unit drawings with tabs, kerfs, printed features, no-touch zones and coordinate identity.
- Printing fixture, release method, vacuum or mechanical pickup geometry, support and transfer sequence.
- Singulation order, individual-part removal, cleaning, tray and packaging contact conditions.
- Stage-specific edge, surface and electrical observations with retained damaged parts and controls.
