Independent electrical channels do not make every combination of zone temperatures possible. Heat can cross from one region to another, each channel has a finite output, and several channels may share one power source. A target can satisfy each nominal temperature requirement yet demand negative heating power or an impossible combination of positive powers. A feasibility calculation exposes those conflicts before controller tuning begins.
Key design decisions
- Define whether model inputs are absolute powers or changes from a powered baseline.
- Check all zone and shared limits simultaneously, not one channel at a time.
- Keep an infeasible requested target distinct from an approved compromise or a changed thermal design.
Start with a model valid at the intended boundary

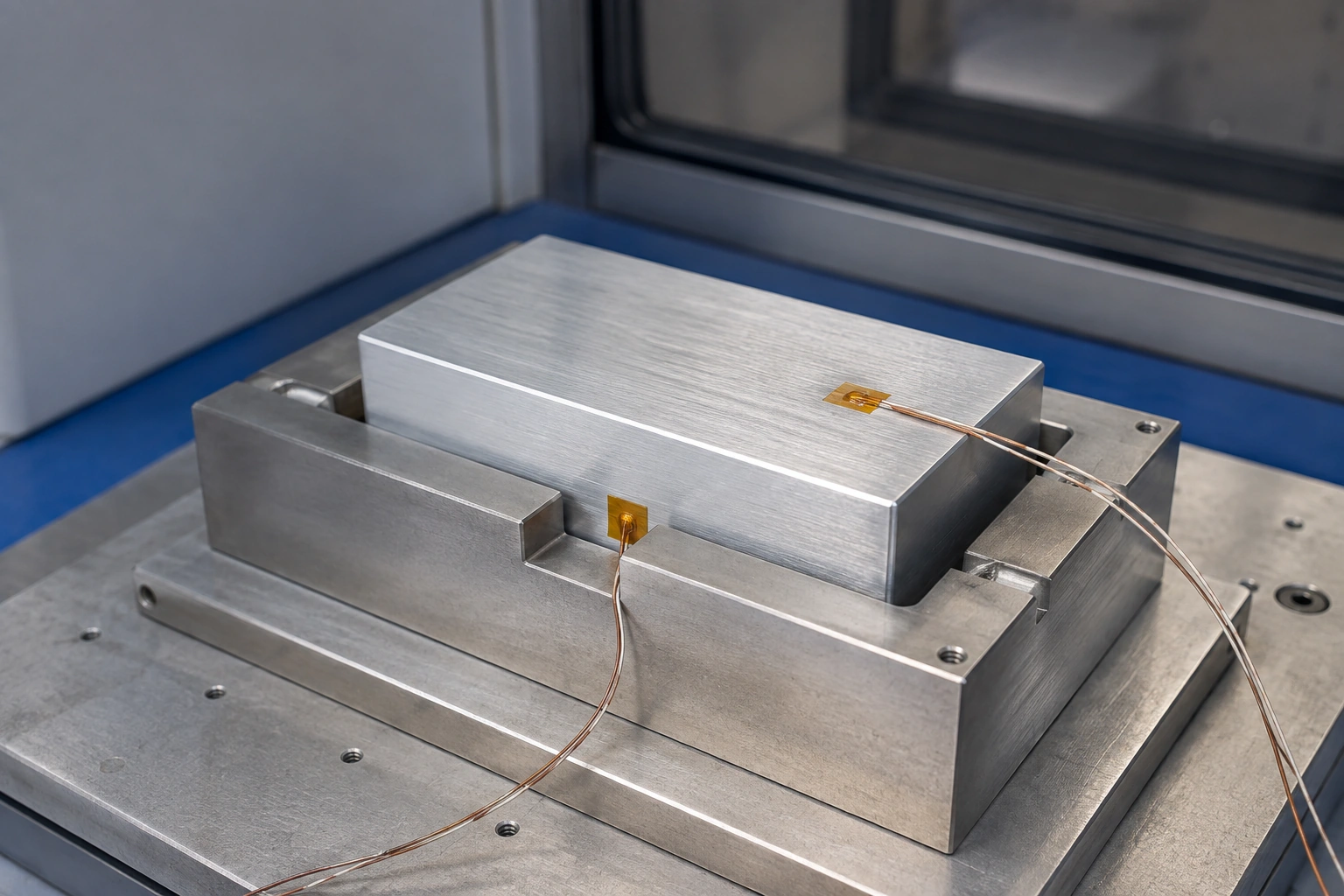

Represent steady zone temperatures as a baseline vector plus a thermal gain matrix multiplied by channel powers. Each gain states the change at one observation point per watt in one channel. The model must describe the installed contact, cooling and load state. A gain measured around one powered condition is not automatically valid from a cold assembly to its highest temperature.
For the calculations below, assume a linear model valid over the stated range with a measured zero-power baseline. Its inputs are absolute nonnegative heating powers. If a fitted model instead uses increments from a powered baseline, a negative increment can mean reducing existing heating rather than active cooling. Apply limits to baseline power plus the increment; confusing these conventions can reject a feasible target or accept an impossible one.
Solve the simultaneous requirement before checking the controller
Consider two zones with temperature rises theta1 = 2P1 + P2 and theta2 = P1 + 2P2. Gains are in kelvin per watt and powers are in watts. This symmetric numerical example contains cross-coupling but does not assign a thermal rating to a particular ceramic heater. Solving the two equations gives P1 = (2theta1 minus theta2)/3 and P2 = (2theta2 minus theta1)/3.
A requested rise of 20 K in zone one and 5 K in zone two requires approximately 11.67 W and minus 3.33 W. The second result is not a controller gain to tune away: within the assumed model, keeping the second zone that cool requires heat removal beyond its zero-power state. A heating-only second channel cannot produce that negative absolute input.
theta = K P; feasible only if 0 <= P_i <= P_i,max and sum(P_i) <= P_shared
- theta is the vector of target temperature rises above the model's zero-power baseline, in K.
- K is the steady thermal gain matrix in K/W.
- P_i is absolute delivered power in channel i, in W.
The stated affine model is valid over the evaluated power and temperature range. The shared constraint is expressed on the same delivered-power basis as the individual channels.
Identify the restriction created by cross-heating alone
In the two-zone example, nonnegative powers require theta2 to be at most twice theta1 and theta1 to be at most twice theta2. Except at the zero-power point, the ratio of the two rises therefore lies between one half and two. This restriction exists even with arbitrarily large channel power ceilings. More supply capacity cannot make a 20 K and 5 K target satisfy it.
Changing the thermal separation, the observation locations or the cooling arrangement may change the gain matrix and hence the reachable ratios. Adding an independently controlled cooling actuator changes the input model itself. Neither modification should be represented by allowing negative power in a heater spreadsheet while retaining a heating-only physical design.
Map the boundary instead of testing isolated setpoints
With two channels, list the vertices of the allowed power region and transform each through the thermal matrix. The result is a temperature-target polygon for this linear model. Interior targets have at least one admissible power solution; a target outside the polygon does not. The boundary represents stated limits, not a recommendation to operate continuously with no reserve.
This construction makes a combined limit visible. The power combinations 8 W plus 8 W are excluded even though each channel is individually allowed to reach 8 W. The diagonal boundary connecting the 8 plus 4 and 4 plus 8 cases comes specifically from the 12 W shared constraint. Retain that boundary when displaying operating combinations to a customer or a controls engineer.
| Channel powers P1, P2 | Temperature rises theta1, theta2 | Active boundary |
|---|---|---|
| 0 W, 0 W | 0 K, 0 K | Both channels off |
| 8 W, 0 W | 16 K, 8 K | First-channel ceiling and second channel off |
| 8 W, 4 W | 20 K, 16 K | First-channel and shared ceilings |
| 4 W, 8 W | 16 K, 20 K | Second-channel and shared ceilings |
| 0 W, 8 W | 8 K, 16 K | Second-channel ceiling and first channel off |
Use a consistent power and time basis
The example treats the shared ceiling as a limit on summed delivered steady powers. A real supply may instead be constrained by input current, conversion losses, peak current or a time-dependent protection function. Convert the requirement to the appropriate variables before using a simple sum. Do not add heater output watts and compare them directly with an unrelated upstream current rating.
Pulse-driven channels also require a check of instantaneous combinations. A steady average-power target can be thermally attainable while coincident pulses violate an electrical limit. Conversely, rearranging pulse timing does not remove a genuine steady energy shortfall. Keep the long-term thermal feasibility result and the electrical pulse constraint as separate checks with a shared definition of the operating sequence.
Test nearby conditions, not only the nominal intersection
Repeat the calculation across the bounded gain matrices, baselines and power ceilings supported by operating measurements. A target lying just inside the nominal polygon may leave it after contact resistance, ambient state or load heat extraction changes. Report which physical variation removes feasibility rather than assigning a single unexplained percentage margin to every zone.
When there are more controlled temperatures than independent actuators, arbitrary targets generally cannot all be imposed simultaneously. Even a square matrix may be singular or poorly conditioned, so counting channels is not enough. Check rank and sensitivity before interpreting an inverse calculation. A small measured difference between nearly identical zone responses can otherwise demand a disproportionately large difference in commanded power.
Resolve an infeasible target explicitly
For each requested operating combination, report the required powers, violated limits and any missing margin. Distinguish a heating-only conflict from a channel ceiling and from a shared-source shortfall; they lead to different design changes. Increasing supply capacity addresses only the last of these directly. Changing thermal coupling or adding cooling requires a new model and another validation cycle.
If the application can accept a compromise, obtain an explicit priority rule for the temperatures and the permissible deviation. Do not silently move both setpoints to a convenient boundary or soften a safety-related limit in an optimization routine. After selecting a physically feasible target, verify the transient response and protective states separately. A steady feasible solution establishes neither startup overshoot nor safe behavior after a sensor or actuator fault.
Provide the simultaneous zone targets and power boundaries
A multi-zone feasibility review needs the full target combinations rather than isolated maximum temperatures.
- Zone layout, observation locations, intended load and cooling state, and zero-power or powered-baseline definition.
- Measured thermal gain matrix, valid operating interval and bounded variation between assemblies or boundary states.
- Required simultaneous temperature combinations, allowed deviation and any priority between zones.
- Individual delivered-power limits, shared supply constraints, conversion losses and pulse scheduling requirements.
- Required control margin, transient limits, sensor-fault behavior and independent protective requirements.
