Solder-Joint Resistance on Ceramic: Bulk Estimate and Current Constriction

Define the electrical section under review

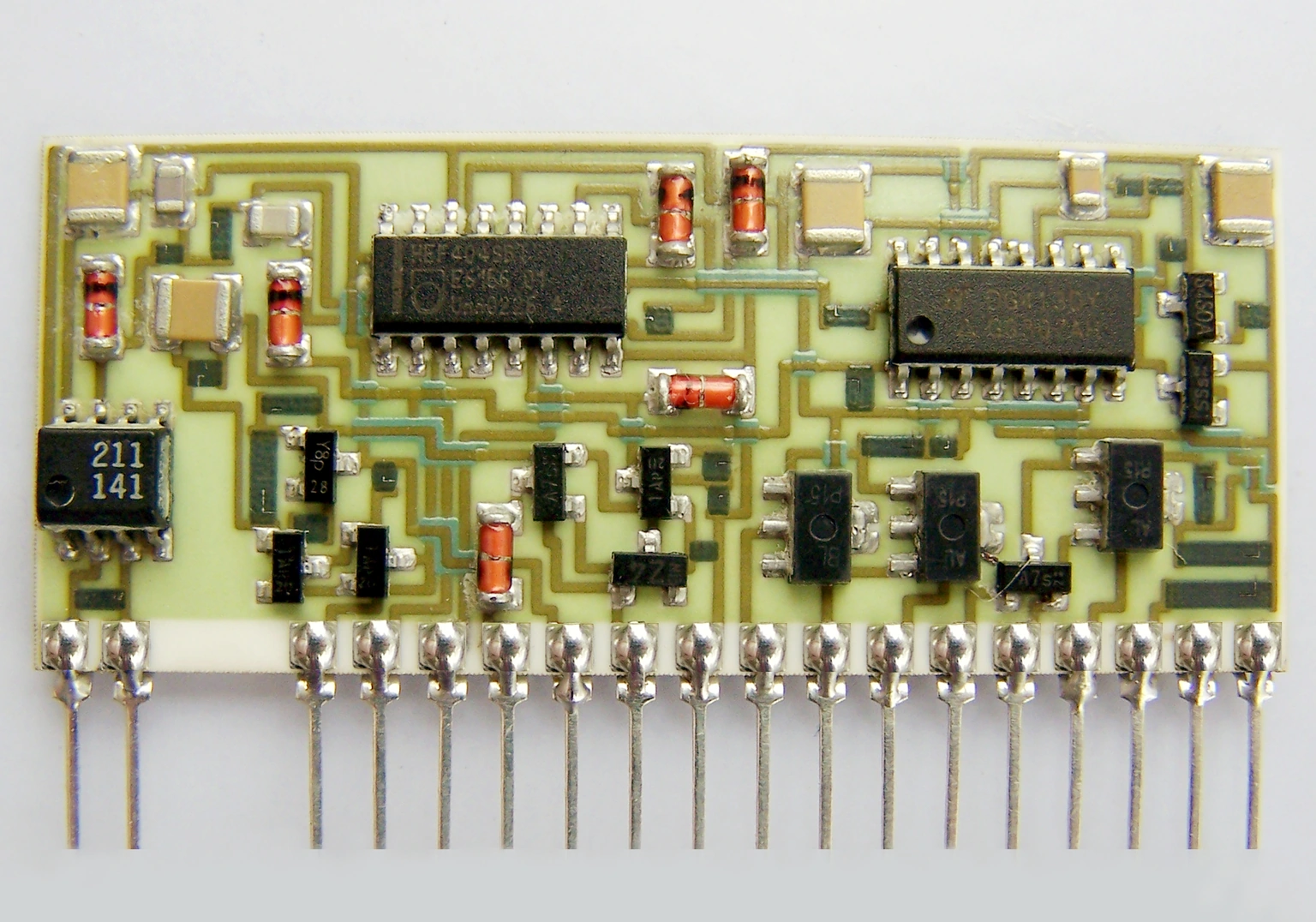

Follow the connection from the ceramic conductor into the solder, through the attached lead and to the external terminal. Mark where current is injected and where voltage is sensed. Moving a voltage probe along a resistive printed trace changes the measured section even though the solder itself is unchanged. Keep those positions tied to drawing datums or identifiable features.

A four-wire arrangement reduces the influence of external current-lead voltage drops, but it does not remove material that lies inside the sense boundary. If that boundary contains a long printed conductor, its resistance is legitimately included. Describe the result as connection resistance unless the contribution of the specific joint has been isolated through a justified layout or comparison.

Calculate the solder contribution in the current direction

For an approximately uniform solder layer carrying current normal to two broad faces, bulk resistance equals resistivity multiplied by layer thickness and divided by conducting area. This is different from a fillet in which current travels laterally or enters through a narrow lead. The dimension called thickness must follow the direction of current flow in the selected model.

Use the resistivity of the named alloy in the relevant state and temperature range. Electrical conductivity is its reciprocal, so a value expressed as conductivity must be converted before it enters the resistance equation. Keep all dimensions in consistent units and distinguish bulk material data from the measured resistance of a completed metallurgical joint.

Compare the bulk estimate with the complete connection budget

Take a hypothetical solder region with resistivity 1.5 × 10^-7 ohm-meter, path length 80 micrometers and conducting area 1 square millimeter. The calculation gives 12 micro-ohms. At 3 A, the corresponding voltage drop is 36 microvolts and the bulk dissipation is 108 microwatts. For an actual joint, substitute resistivity at its evaluated alloy state and temperature.

Now suppose the sense boundary also includes a printed conductor measured separately at 0.8 milliohm. The simple series total is 0.812 milliohm before any other contributions. Reducing the modeled solder thickness by half changes that total to 0.806 milliohm, less than a one percent reduction. An effort to improve solder bulk resistance may therefore have little effect when the printed trace dominates the connection.

Recognize when apparent area is not conducting area

Current converges when a broad conductor feeds a smaller wetted region or a narrow attached lead. This nonuniform flow adds geometry-dependent resistance that is absent from the uniform-column model. The visible outline of a solder fillet does not establish the size or distribution of the actual electrical interface underneath it.

If a deliberately simplified uniform path has only half its original conducting area, its calculated bulk resistance doubles. That sensitivity is useful, but an irregular joint with several connected regions cannot generally be reduced to the same area rule. Current spreading in the adjoining conductor, contact location and interaction between conducting regions can change the result. Do not infer that a measured doubling proves exactly fifty percent missing contact.

Keep interfacial material distinct from the bulk alloy

A soldered interface can contain reaction products with electrical properties different from the original alloy and metallization. A resistivity assigned to the bulk solder is not automatically valid for every layer in the joint. Where a layer contribution matters, establish its identity, geometry and material basis before adding another term to the model.

A simple series-layer calculation assumes each layer has the same active cross-section and reasonably one-dimensional flow. It becomes inadequate where layers are discontinuous or current concentrates at local contacts. Cross-sectional observations should be linked to the electrical specimen and measurement state. A polished section from another joint may illustrate a process feature but cannot explain a particular resistance excursion by itself.

Use the discrepancy to choose the next measurement

Compare prediction and observation at the same temperature and current condition. A discrepancy can arise from the measurement boundary, material inputs, geometry, contact condition or self-heating. Select a measurement that separates competing explanations rather than repeatedly increasing solder volume until one reading improves.

Resolve microvolt signals without changing the joint

The hypothetical bulk example produces only tens of microvolts at a few amperes. Thermal offsets at dissimilar-metal junctions can be relevant on that scale. Use an appropriate low-resistance method, controlled sense contacts and a current-reversal or offset treatment suited to the stability of the setup. Record the actual current rather than assuming the source setting equals the delivered value.

Increasing current improves signal only until heating or contact nonlinearity changes the object being measured. Check resistance over a justified current range and distinguish the initial low-heating result from the later warmed state. Support test leads so their weight and stiffness do not mechanically stabilize or strain the connection. A measurement fixture must not silently become part of the joint's structural load path.

Improve the identified resistance contributor

If the printed trace dominates, review its length, width and current-entry arrangement before making a solder change. If restricted wetting dominates, investigate the named metallization and attachment process. If a narrow lead dominates, consider the electrical and mechanical consequences of another lead geometry. Each correction targets a different part of the measured connection.

Recheck thermal dissipation, clearance, pad loading and assembly access after an electrical modification. A broader or stiffer attachment can reduce resistance while increasing mechanical stress in the ceramic. Preserve the final current-path model and sense-point definition with the drawing so subsequent measurements remain comparable. The released value should identify the complete configuration and conditions it represents, not imply a universal resistance for all ceramic solder joints.
