Thermal Cycling in Thick Film Circuits: Managing CTE Mismatch

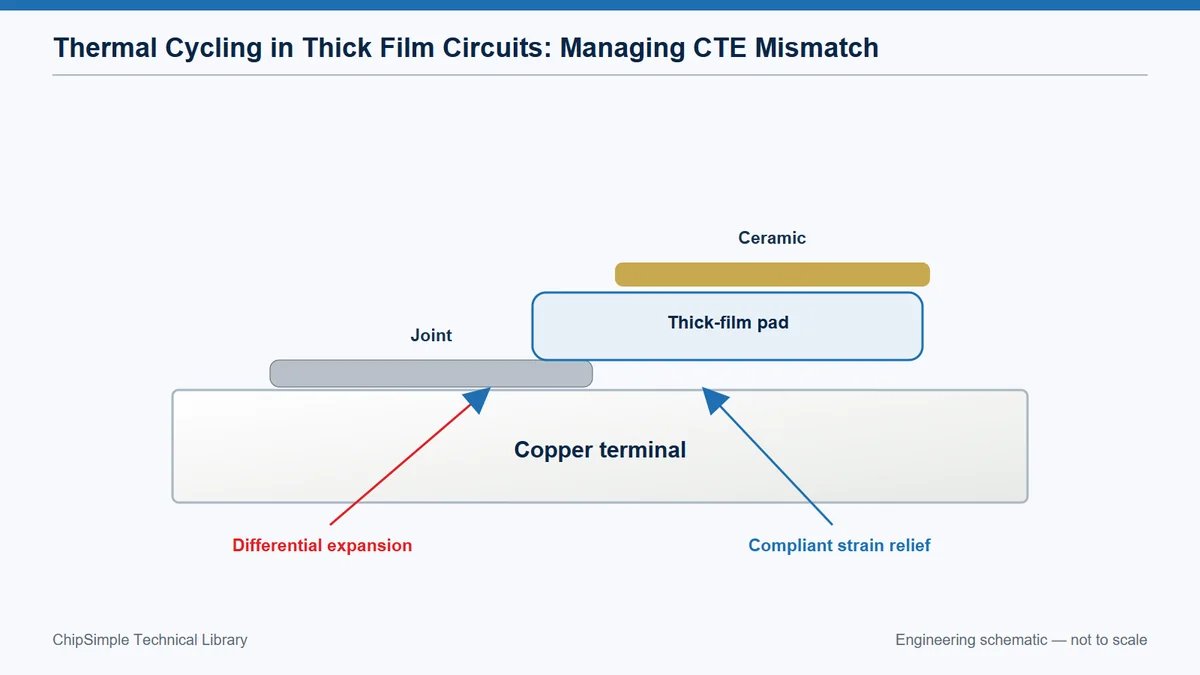

Ceramic is stiff and dimensionally stable, while metals and polymers generally expand more. A large bonded area or rigid terminal can convert temperature change into shear and peel stress at a thick-film pad. The printed layer itself also contains phases with different expansion behaviour. Cycle range, dwell, ramp and mechanical constraint determine which interface accumulates damage.
Map Every Constrained Interface
Geometry and material meet at this point: Stress is created where materials with different expansion are forced to move together. Therefore, large pads, edge attachments and rigid frames often carry the highest displacement. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.
During release, document CTE, bonded length and mechanical restraint for each interface. Make sure the acceptance method measures the same physical feature that the design calculation assumed.
Useful confirmation includes assembly drawings and deformation or stress review. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.
One failure signature is cracks beginning at a terminal edge rather than the hottest electrical region. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.
Reduce Peel and Concentrated Shear
Process capability follows from the mechanism: Pad edges and abrupt stiffness transitions concentrate strain. The direct implication is that a compliant lead or adhesive shape can reduce load transferred to the ceramic interface. This makes the topic a design input, not merely a factory setting adjusted after the drawing is complete.
A practical release action is to use strain relief, tapered joints and appropriate bond area. The requirement should survive staff changes and future lot reviews because it is recorded with the controlled construction.
Use cross-sections and mechanical tests after cycling to demonstrate margin. When feasible, compare the result before and after the operation most likely to disturb it.
Pay attention to pad lift or ceramic chipping under a visually strong joint. A corrective action is credible only when it changes that physical mechanism and the follow-up data confirm the change.
Define the Real Cycle
Range, ramp, dwell and number of cycles influence damage mechanisms differently. The consequence is that fast shock and slow cycling are not interchangeable tests. In a thick film circuit thermal cycling review, this relationship deserves an explicit decision rather than an assumption copied from a previous drawing.
The practical control is to base qualification on service and assembly exposures. That instruction should be linked to the layer, material system or feature it governs so that production and inspection read it in the same way.
Verification should include recorded chamber profile and specimen temperatures. If the evidence is collected only after final assembly, the team loses the ability to separate printing, firing, trimming and assembly effects.
A common warning sign is claiming qualification from a cycle that never brought the assembly to thermal equilibrium. Treat that symptom as a request to examine the process chain, not simply as a reason to widen the final tolerance.
Monitor Electrical Change During Damage
Microcracks and interface fatigue can create intermittent or gradual resistance change. The consequence is practical: final continuity may miss events occurring only at temperature. This is one reason thick film circuit thermal cycling cannot be reduced to a single catalogue value.
During design review, instrument critical paths or daisy chains during cycling. The objective is not to freeze every process setting on the customer drawing, but to define the functional boundary that the manufacturer must protect.
A useful evidence package contains in-situ resistance plus post-cycle microscopy. Comparing those records with the approved construction is more informative than judging an isolated photograph or one resistance reading.
Watch for no-fault-found results after intermittent opens close at room temperature. It often indicates that two individually acceptable variables have combined at the edge of their windows.
Use Failure Location to Improve Design
Ceramic fracture, pad lift, solder fatigue and adhesive separation require different fixes. Consequently, strengthening the wrong interface can move stress into a more brittle region. The engineering value comes from understanding the direction and sensitivity of the effect, not from memorising a nominal number.
A robust drawing or process plan will classify fracture and review the full stiffness chain. This makes the design intent visible and gives the supplier room to use a qualified material set without changing the function.
The result can be checked through fractography, sectioning and correlation with location. Where possible, keep readings before and after the next thermal or mechanical operation; the delta often reveals more than the final value.
The failure pattern to investigate is increasing joint area and making ceramic stress worse. Before changing materials, confirm orientation, lot history, measurement method and acceptance limits.
A Worked Engineering Review
A thick-film pad supports a soldered copper terminal. Estimate differential movement over the bonded length between cold and hot limits. If the terminal is rigid, add a formed compliant section or reduce peel at the pad edge. Build daisy-chain coupons using the same pad, conductor, solder and terminal geometry. Cycle them with in-situ resistance and inspect failure surfaces. If the ceramic cracks before the pad releases, increasing adhesion is not the primary remedy; the assembly compliance must change.
Design Review Checklist
- Map CTE and constraint at every joint.
- Reduce bonded length or add compliance where needed.
- Specify cycle range, ramp, dwell and count.
- Monitor resistance in situ.
- Classify failure location before redesign.
Questions Engineers Commonly Ask
Is a higher-adhesion conductor always better for cycling?
Not necessarily. A stronger interface can transfer more stress into ceramic. The full joint must be balanced.
What is the difference between thermal shock and cycling?
Shock uses rapid transitions and strong gradients; cycling may allow equilibrium. They emphasise different damage mechanisms.
Why use daisy-chain coupons?
They make small connection changes measurable and can be monitored continuously during cycling.
Related Engineering Resources
Closing Note
Thermal-cycle reliability is designed through compliance, geometry and evidence. Treat every attachment as part of the ceramic circuit, not as a separate assembly detail.
