A conductive adhesive joins two surfaces through a finite cured bondline. Its thermal resistance depends on thickness, conducting area and the two interfaces, not only on the bulk conductivity written on a material data sheet. For ceramic circuits carrying attached components or connected to a heat spreader, a simple area-loss calculation can identify important sensitivities. It cannot predict every hotspot or convert a void image into a universal pass or fail decision.
Key design decisions
- Use cured bondline geometry and a conductivity appropriate to the material state and temperature.
- Keep adhesive bulk resistance, interface resistance and heat spreading as separate contributions.
- Treat void fraction as one description of the joint; retain void location, connectivity and the heat-source footprint.
Define the thermal path through the attachment
Draw the heat path from the component through its attachment to the ceramic, then through any second attachment to the mounting structure. A measured temperature difference across that complete assembly includes more than one adhesive layer. Place the measurement planes explicitly before assigning a temperature rise to a particular interface.
Electrically conductive epoxy and thermally conductive adhesive are not interchangeable labels. Some thermally conducting formulations remain electrically insulating. For a joint that must carry both current and heat, verify both requirements for the exact material and cured configuration. Electrical continuity alone cannot establish a satisfactory thermal path, just as a low thermal resistance cannot establish the required insulation.
Start with a uniform one-dimensional layer
For a layer with uniform thickness and conductivity between isothermal faces, the bulk thermal resistance is thickness divided by conductivity and area. This is a useful accounting model when the footprint is well defined and lateral heat spreading can be neglected. Use meters for thickness, square meters for area and watts per meter-kelvin for conductivity to obtain kelvins per watt.
The area is the area normal to the modeled heat flow, not the visible fillet around the component. Adhesive squeezed beyond the component may have a different thermal path and cannot automatically be added to the through-thickness footprint. Likewise, an irregular contact surface should not be reduced to a large nominal rectangle without examining which regions are actually bonded.
R_bulk = t / (k A); Delta T_bulk = P R_bulk
- R_bulk is adhesive bulk thermal resistance in kelvins per watt.
- t is cured bondline thickness in meters and A is its modeled heat-transfer area in square meters.
- k is thermal conductivity in watts per meter-kelvin; P is heat passing through this path in watts.
Steady one-dimensional conduction, uniform layer, isothermal faces, appropriate material properties and no interface or spreading resistance included.
Calculate a deliberately limited area-loss scenario
Consider a simplified set of parallel through-thickness columns. A fraction f is fully insulating, while the remaining fraction has unchanged thickness and conductivity. With isothermal faces, the active columns conduct in parallel and the model becomes t divided by k times A times one minus f. The resistance multiplier relative to a fully conducting layer is one divided by one minus f.
This is not a rigorous bound for every real void geometry. A shallow internal bubble, a connected interfacial separation and a through-thickness empty column are different structures. Real voids can retain some conduction, and finite component or ceramic conductivity permits lateral temperature variation. Label the result as an area-loss sensitivity calculation, not as a measured void penalty or a universal allowable void percentage.
R_area-loss = t / [k A (1 - f)]
- f is the assumed fraction of fully nonconducting through-thickness area, between zero and one.
- The remaining area has the same conductivity and thickness as the unvoided comparison.
Parallel columns with isothermal faces, zero conduction in the removed columns, no lateral spreading calculation and no change to contact resistance.
Reproduce the numerical sensitivity before interpreting it
Take a hypothetical cured layer with t = 50 micrometers, A = 4 square millimeters and k = 2 W/(m K). Converting the dimensions gives 50 × 10^-6 meters and 4 × 10^-6 square meters. The uniform-layer resistance is therefore 6.25 K/W. If the area-loss model uses f = 0.20, its resistance becomes 7.8125 K/W, an increase of 25 percent rather than 20 percent.
Suppose, only for this example, that the two interfaces together contribute another 2 K/W that remains unchanged. The total becomes 8.25 K/W without area loss and 9.8125 K/W with it. At 0.5 W flowing through this path, the corresponding temperature differences are 4.125 K and about 4.906 K. Actual interface resistance and heat spreading require the defined attachment geometry.
Decide when void location matters more than total fraction
An area percentage discards spatial information. If a small heat source sits over a central separated region, heat must spread sideways before crossing the attachment. The resulting local temperature can differ from a joint with the same total missing area at a lightly loaded edge. The parallel-column calculation does not resolve that difference because it assumes each face is already isothermal.

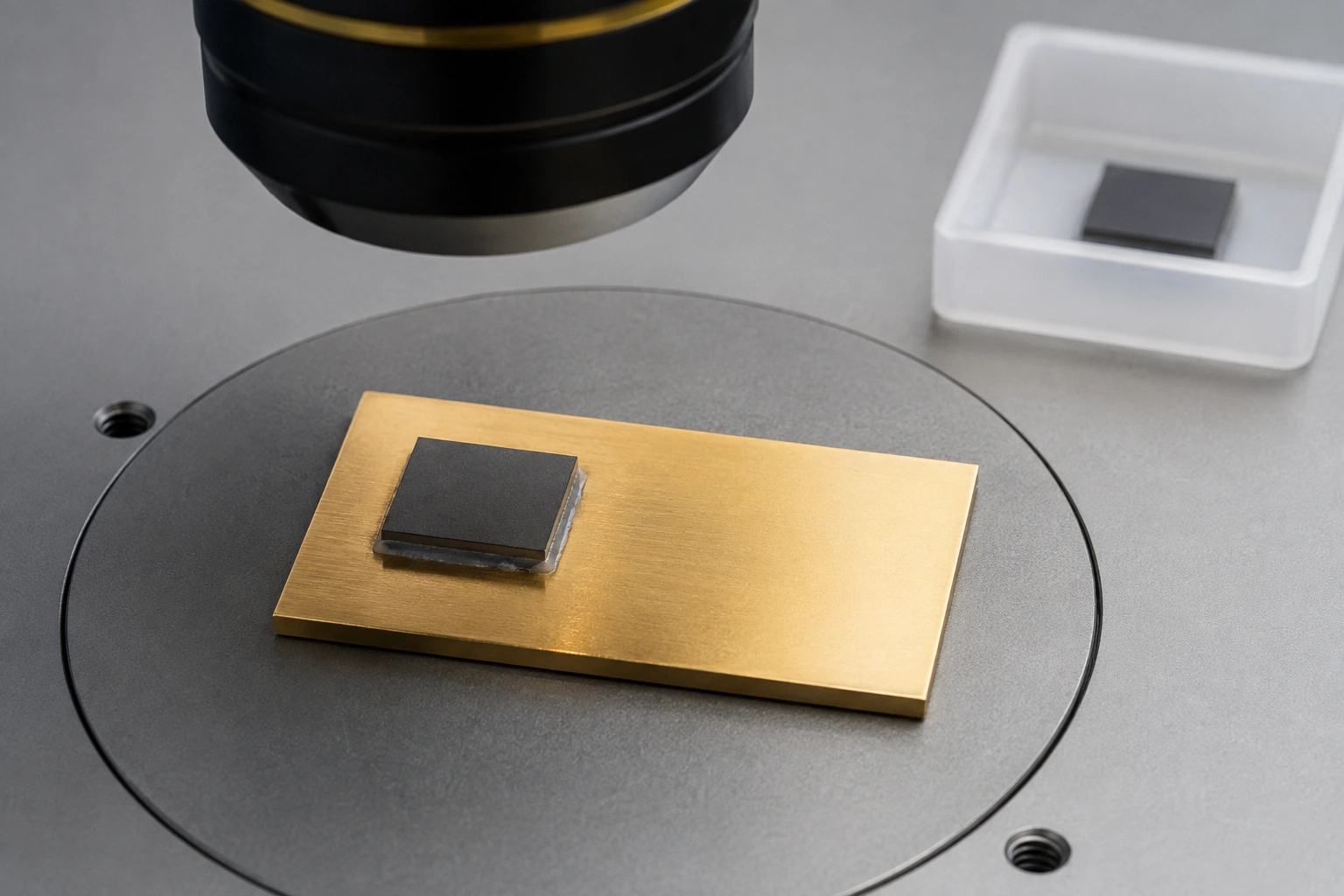

Retain the void map in the same coordinates as the component footprint, active heat source and ceramic features. Check whether the inspection method detects the relevant depth and interface. A two-dimensional projected image may combine overlapping features and cannot always distinguish a thin separation from a larger internal cavity. Where interpretation affects acceptance, correlate appropriate imaging with representative sections or other validated observations.
| Joint observation | Useful assessment | Missing information to resolve |
|---|---|---|
| Uniform thin layer with broadly distributed heating | One-dimensional bulk plus contact resistance | Actual cured thickness and interface contributions |
| Dispersed small voids with near-isothermal faces | Area-loss sensitivity alongside measured thermal response | Void depth and the validity of the isothermal assumption |
| Large void directly below a concentrated heat source | Spatial heat-flow analysis and local temperature measurement | Void position, heat-source size and lateral conduction |
| Connected edge separation after aging | Combined thermal and attachment-integrity investigation | Growth, interface identity and mechanical loading |
| Acceptable average temperature but an unexplained hotspot | Location-resolved measurement with sensor and emissivity review | Local heat generation, contact condition and measurement artifacts |
Do not optimize bulk conductivity in isolation
A higher-conductivity adhesive can lose its calculated advantage if its practical cured bondline is thicker or its contact with the surfaces is worse. Compare feasible thickness and attachment conditions for each material rather than assigning both candidates the same arbitrary layer. Filler geometry, surface flatness and the assembly method can constrain how thin a continuous joint can become.
The thinnest layer is not automatically the best joint. Excessive squeeze-out, incomplete wetting or contact between unintended surfaces can change mechanical and electrical behavior. Keep the thermal calculation connected to the drawing, attachment process and material-specific requirements. Increasing clamping force to improve one measurement must not introduce a ceramic stress condition that the intended assembly does not use.
Measure the same boundary represented by the calculation
Use the actual heat flowing through the assessed path, not automatically the total electrical input to the device. Leads, convection and neighboring structures can remove some heat through parallel paths. If those losses are significant, total power divided into a local temperature difference gives a different quantity from the intended attachment resistance.
Record sensor placement and the extrapolation used to define interface temperatures. A sensor on a remote ceramic edge measures the combined effects of spreading and local cooling. Compare repeat assemblies with controlled power, mounting and ambient conditions. Preserve individual thermal results alongside bondline thickness and void location instead of correlating a batch-average temperature with an unrelated batch-average void fraction.
Set acceptance around temperature and attachment function
Define the allowable component and substrate temperatures under the relevant power and cooling conditions, then allocate an attachment resistance budget. An inspection limit should have a demonstrated relationship to that function. A visually attractive bondline with an unqualified cure or weak interface does not become acceptable merely because its void fraction is small.
Repeat the relevant thermal and mechanical observations after the exposures that can change the joint. Preserve whether a resistance change comes from growing separation, altered thickness, interface damage or another heat path. The final drawing and process record should connect geometry, material state, inspection and measured thermal response so that a future adhesive or mounting change can be assessed coherently.
