Overview

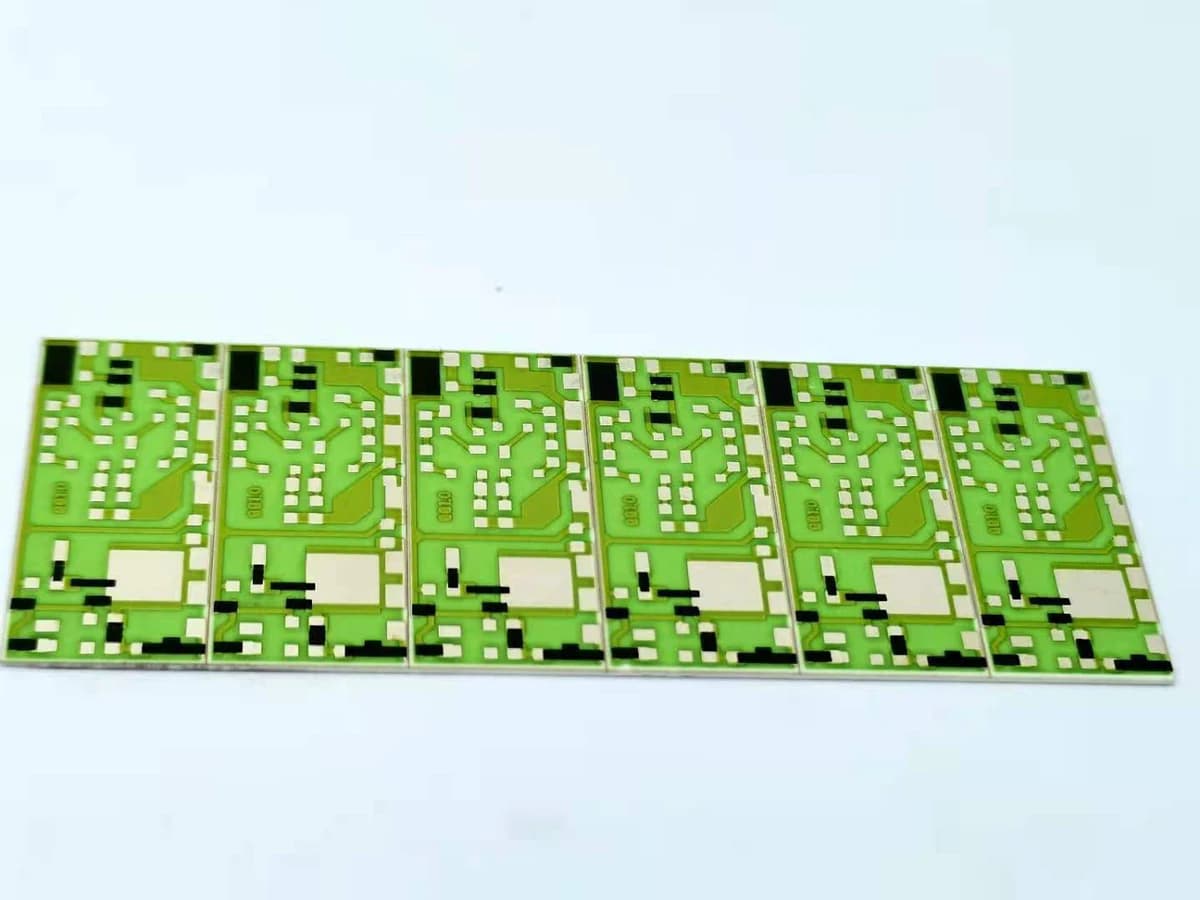

A sheet-resistance series is a set of material formulations intended to cover resistance decades under specified printing, firing, termination, geometry, and test conditions. Selecting the closest catalog decade is only the beginning. The design must keep the resistor aspect ratio manufacturable, avoid excessive sensitivity to line width and termination effects, preserve trim allowance, and satisfy TCR, voltage coefficient, noise, power, protection, and stability needs. Blending or interpolation, when a supplier supports it, belongs to the controlled material system rather than an informal calculation. Every supplier value remains specific to its coupon, processing, and measurement context until product geometry and production-intent evidence are correlated.
Engineering review matrix
Each row links a design variable to evidence that can support a drawing or release decision.
| Variable | Control question | Verification route |
|---|---|---|
| Target resistance architecture | Define nominal values, ratios, tolerances, network nodes, source and load, calibration, reference state, and whether elements must track each other. | Measure individual values and complete circuit transfer at the stated temperature, loading, polarity, and stabilization conditions. |
| Named sheet-resistance decade | Record manufacturer, product code, lot, data-sheet revision, nominal decade, storage, conditioning, mixing, print, dry, firing, and supported compatibility. | Use controlled material identity and correlate coupon and production-geometry resistance across location, lot, and relevant processing stages. |
| Effective resistor geometry | Set finished length, width, aspect ratio, corners, termination overlap, orientation, trim allowance, protection, spacing, and critical datums. | Inspect fired geometry and compare dimensional measurements with resistance by feature, position, and processing state. |
| Termination and conductor interaction | Name conductor family, overlap, firing order, refires, diffusion or interaction concerns, current entry, contact resistance, and joint or probe interface. | Use representative end effects and electrical measurements; inspect interfaces after the complete print/fire and assembly sequence. |
| Temperature, voltage, and power | Allocate TCR, VCR, current density, continuous and pulse power, self-heating, thermal gradient, ambient, mounting, and neighboring heat sources. | Measure at defined voltage, load, temperature, waveform, and mounting states rather than extrapolating from a low-level room-temperature coupon. |
| Trim and protection | Define as-fired target, trim topology, cut direction and limit, remaining path, measurement loading, settling, overglaze or overcoat, refiring, and downstream heat. | Compare resistance distribution and physical condition before trim, after trim, after protection, after assembly, and after relevant exposure. |
| Stability and traceability | Specify allowable change, time basis, humidity, bias, thermal cycling, chemicals, mechanical strain, lot sampling, data retention, substitutions, and change control. | Run a configuration-linked validation matrix and retain raw measurements, uncertainty, failure modes, and material/process genealogy. |
Controlled model
Sheet resistance, square count, and selection margin
Use a number-of-squares model to screen candidates, then add termination, corner, thickness, trim, temperature, voltage, power, and process effects. A material-decade table does not define the resistance of an arbitrary production geometry. Selection should minimize avoidable geometry extremes while keeping all other functional requirements visible.
R_nom ≈ Rₛ (L_eff / W_eff)Relates nominal resistance to sheet resistance and effective resistor aspect ratio.
- Units
- R_nom and Rₛ in Ω; L_eff and W_eff in the same length unit
- Use boundary
- A first-order uniform-film model. Effective dimensions, terminations, corners, thickness, print profile, refires, and conductor interaction require correction or measured correlation.
N_sq = R_target / RₛCalculates the approximate number of squares required from a candidate sheet-resistance decade.
- Units
- N_sq dimensionless; R_target and Rₛ in Ω
- Use boundary
- Does not determine a manufacturable outline or acceptable performance. The resulting aspect ratio must be checked against area, width, power, voltage, trim, and process constraints.
δR/R ≈ δRₛ/Rₛ + δL/L − δW/WFirst-order sensitivity of a rectangular resistor to material and dimensional changes.
- Units
- Dimensionless, commonly %
- Use boundary
- Small-change approximation that omits covariance, film-thickness profile, termination effects, corners, trimming, temperature, voltage, and nonlinear processing interactions.
Decision comparison
| Decision | Route A | Route B | Verification |
|---|---|---|---|
| Lower sheet resistance with long narrow geometry | May achieve value by adding many squares, but can consume area and increase width-tolerance, defect, current-density, and voltage-distribution sensitivity. | A higher sheet-resistance decade can shorten the body, but may carry different TCR, VCR, noise, stability, firing, or compatibility behavior that must be evaluated. | Compare representative product geometries from both candidate decades under the same terminations, processing, trim, electrical load, environment, and measurement plan. |
| Single standard decade versus supplier-supported blend | A standard member can simplify material identity and process control if geometry remains inside a robust window. | A documented blend or intermediate formulation may improve geometry but adds mixing, traceability, homogeneity, shelf-life, and qualification controls and is not automatically permitted. | Use only supplier-supported procedures and validate composition control, print/firing behavior, uniformity, TCR, VCR, noise, trim, and stability on representative geometry. |
| As-fired tolerance versus trim-centered design | An as-fired route avoids trim cuts but requires the material, geometry, and process distribution to fit the final window. | A trim route can center resistance but needs oversize targets, accessible geometry, cut rules, remaining-path margin, measurement loading, protection, and post-trim stability evidence. | Measure pre-trim and post-trim distributions and inspect trim geometry through downstream firing, protection, assembly, and defined exposures. |
- Sheet resistance is conventionally expressed in ohms per square even though the square count itself is dimensionless; record the reference process and measurement conditions.
- Never convert a paste firing temperature into a resistor operating-temperature statement.
Failure controls
These are review prompts, not evidence that every risk applies or that every test is available.
- A
Choosing a material solely because its nominal decade is closest to the target while ignoring geometry, terminations, trim, TCR, VCR, noise, and stability.
- B
Treating ohms per square as a guaranteed production value independent of print thickness, firing, conductor interaction, substrate, geometry, and test conditions.
- C
Using an extreme aspect ratio that amplifies width variation, defect probability, self-heating, voltage gradient, corner effects, or available-area pressure.
- D
Blending formulations without explicit supplier support, controlled weighing and mixing, homogeneity evidence, traceability, and requalification of all relevant properties.
- E
Designing trim only to hit initial value while leaving insufficient remaining path, local hot spots, exposed cuts, protection shift, or downstream stability risk.
- F
Copying supplier typical coupon data into public company capability or using a firing temperature as an operating-temperature claim.
Paste-series selection workflow
The order makes assumptions and ownership visible before a result is promoted to a requirement.
- 01
Write the functional budget
Define every resistor value, final tolerance, ratio or tracking need, reference temperature, TCR, voltage coefficient, noise, load, pulse or continuous duty, stability, calibration, protection, and environmental exposure. Identify which characteristics are mandatory and which are engineering tradeoffs.
- 02
Map the material-system options
Collect current first-party data for candidate resistor decades, compatible conductors, substrate, firing, termination, overglaze, trim, storage, and test geometry. Record whether interpolation or blending is supported and keep supplier typical values separate from project acceptance limits.
- 03
Generate robust geometries
Estimate square count, then draw effective length, width, corners, conductor overlaps, trim lane, protection coverage, spacing, and edge clearances using expected fired dimensions. Reject candidates that depend on fragile necks, extreme aspect ratios, or uncontrolled termination dominance.
- 04
Budget process and electrical sensitivity
Allocate sheet-resistance distribution, print thickness and profile, width, registration, firing, refires, conductor interaction, trim, protection shift, TCR, VCR, self-heating, and measurement uncertainty. Treat correlated and independent sources appropriately instead of adding every tolerance blindly.
- 05
Build representative comparisons
Print candidates on the intended substrate with the named conductor and downstream sequence. Measure coupons for process understanding and product geometries for design evidence; retain panel position, lot, profile, dimensions, trim state, and instrument conditions.
- 06
Approve a controlled route
Use product-level data to set material identity, geometry window, print/fire controls, trim and protection rules, measurements, sampling, substitution restrictions, and requalification triggers. Any public capability statement must remain limited to the company-specific evidence reviewed for the named configuration.
Reference boundary
Public method sources
These sources support the engineering method and terminology used in this technical guide. They do not establish a ThickFilmPCB material list, capability limit, customer result, certification, or finished-product specification.
- 01NIST Technical Note 1295 — thick-film hybrid microcircuit terminology
Supports the definition of sheet resistivity and resistance-per-square terminology in thick-film context only. It provides no current paste selection, production distribution, or ChipSimple capability.
- 02Heraeus — R8900 Series air-fired resistor system technical data sheet
Supports reviewing one named resistor family by sheet-resistance range, TCR, geometry, terminations, firing, and stated test conditions. Supplier typical data are not universal limits or company performance evidence.
- 03IEC 60115-1:2020 — Fixed resistors for use in electronic equipment
Supports fixed-resistor characteristic, rating, test, and measurement terminology and the need to define conditions. It does not select a paste decade or prescribe a printed geometry.
- 04NIST publication — Measurement and use of TCR in metallizations
Supports careful definition and interpretation of resistance-temperature measurements for metallizations only; it does not establish TCR for a named production paste or finished resistor.
Inputs for a practical review
Unknown values may be labelled unknown. The review should convert uncertainty into an explicit decision or validation task.
Send Drawings- 01
Resistor schematic and table with values, tolerances, ratios, tracking, calibration, reference temperature, and measurement loading.
- 02
Voltage, current, continuous and pulse power, waveform, duty, transients, ambient, self-heating, mounting, and neighboring heat sources.
- 03
Available area and dimensioned fired resistor, conductor overlap, trim, protection, spacing, edge, hole, and registration requirements.
- 04
Required or prohibited substrate, resistor paste series, conductor, overglaze, firing, refires, assembly heat, storage, and material substitutions.
- 05
TCR, VCR, noise, stability, environmental, insulation, adhesion, ratio, resistance-shift, and life-related test definitions and acceptance criteria.
- 06
Trim route, target, instrument, contact method, protection sequence, inspection magnification, sampling, data format, and traceability.
- 07
Prototype alternatives, quantities, tolerance samples, qualification plan, production volume assumptions, drawing revision, and change-control rules.
